Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Item no. 1186856 | EAN 4012196851621

Product description

Product description

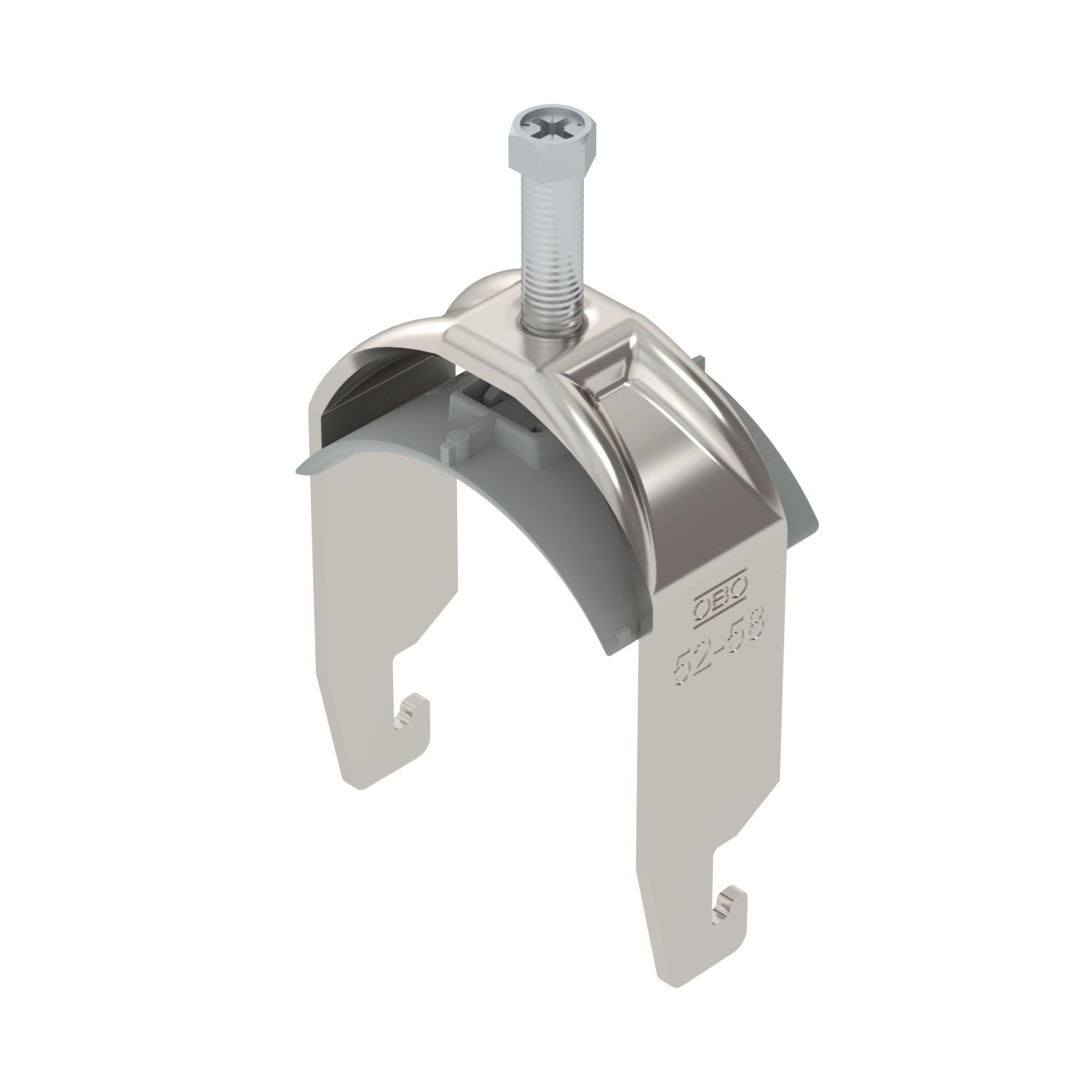

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
Technical data

Technical data

Clamping range D, max. 58 mm
Clamping range D, min. 52 mm

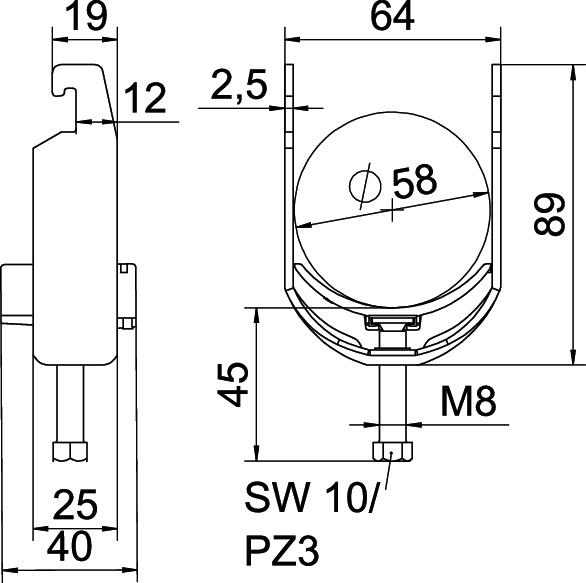

Dimension 52-58mm
Dimension A 25 mm
Dimension B 64 mm
Dimension C 40 mm
Dimension G (mm) M8
Dimension H 89 mm
Dimension L 45 mm
Dimension t 2,5 mm
For pipe diameter, max. 58 mm
For pipe diameter, min. 52 mm
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Height 89 mm
Length 25 mm
Length of external dimensions 40 mm
Material Stainless steel
Material addition Rustproof steel
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 5 Nm
Mounting type Profile rail
Number of cables/pipes 1
Plate thickness 2,5 mm
Slot width 10 mm
Surface Bright, treated
Surface addition Untreated
Thread M8
Width 64 mm
With counter-trough no
With metal trough no
With plastic trough yes
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-U1-K-12 A2 8 mm 12 mm 3 Nm 1186802
50 piece
BS-U1-K-16 A2 12 mm 16 mm 3 Nm 1186809
50 piece
BS-U1-K-22 A2 16 mm 22 mm 3 Nm 1186816
50 piece
BS-U1-K-28 A2 22 mm 28 mm 3 Nm 1186822
50 piece
BS-U1-K-34 A2 28 mm 34 mm 3 Nm 1186829
50 piece
BS-U1-K-40 A2 34 mm 40 mm 3 Nm 1186836
25 piece
BS-U1-K-46 A2 40 mm 46 mm 5 Nm 1186842
25 piece
BS-U1-K-52 A2 46 mm 52 mm 5 Nm 1186849
25 piece
BS-U1-K-58 A2 52 mm 58 mm 5 Nm 1186856
25 piece
BS-U1-K-64 A2 58 mm 64 mm 5 Nm 1186862
15 piece
BS-U1-K-70 A2 64 mm 70 mm 5 Nm 1186869
15 piece
BS-U1-K-76 A2 70 mm 76 mm 5 Nm 1186876
10 piece
