Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT 76 | 82 | 5

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Item no. 1186782 | EAN 4012196851164

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

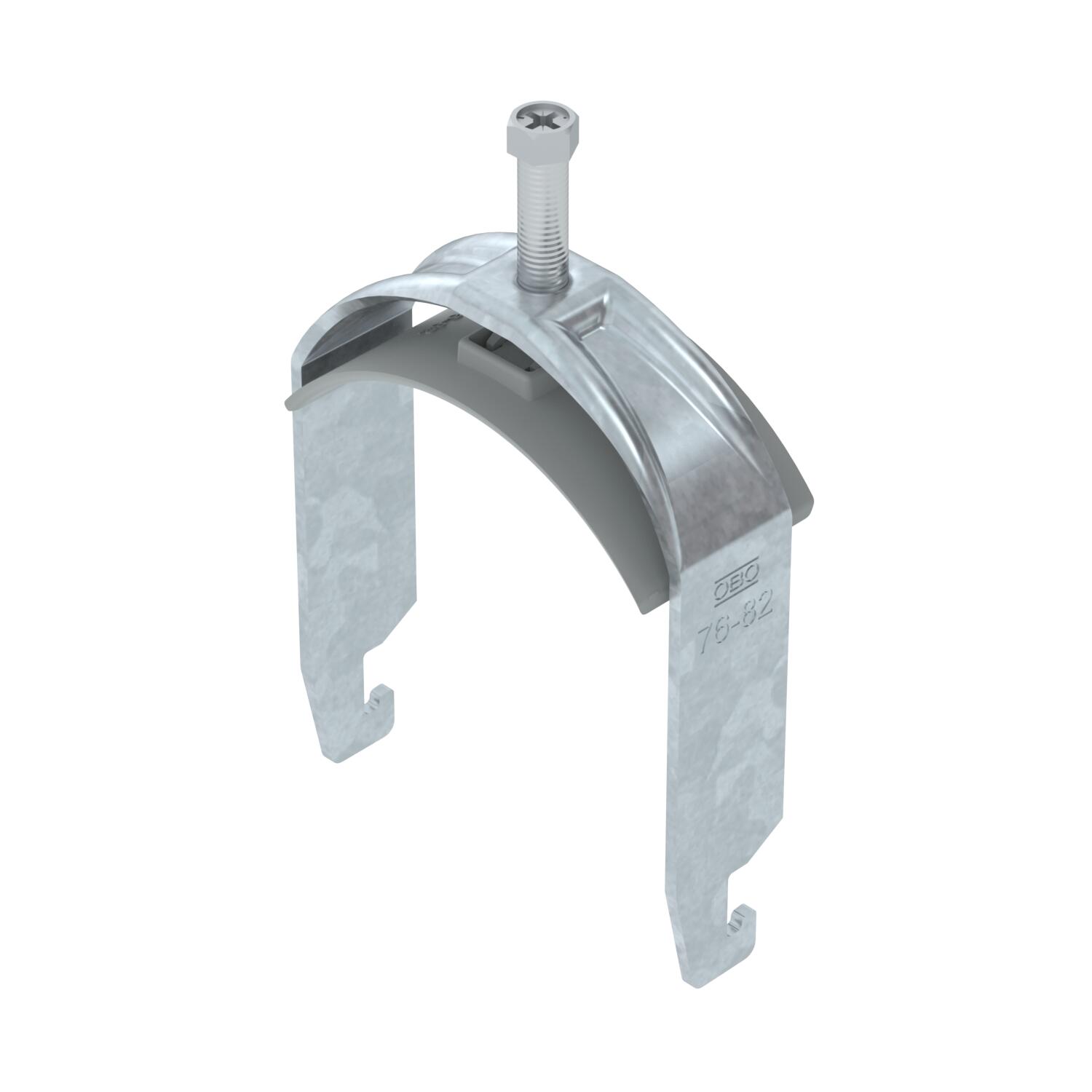

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	82 mm
Clamping range D, min.	76 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,429 kg CO₂e / 1 Piece
Dimension	76-82mm

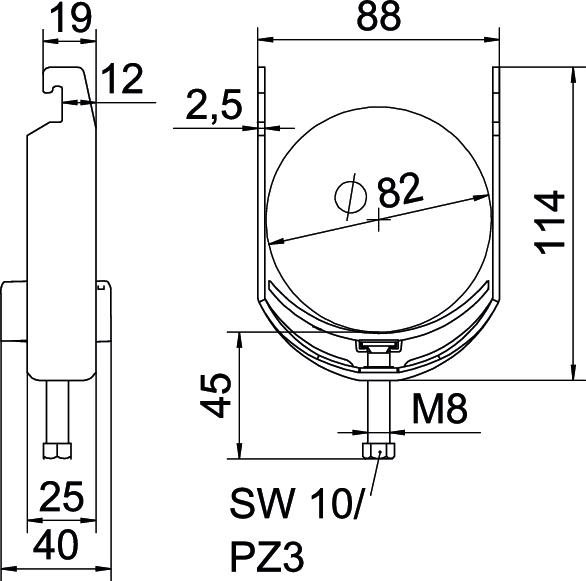

Dimension A	25 mm
Dimension B	88 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	114 mm
Dimension L	45 mm
Dimension t	2,5 mm
For pipe diameter, max.	82 mm
For pipe diameter, min.	76 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	114 mm

Length	25 mm
Length of external dimensions	40 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	88 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-K-12 FT	8 mm	12 mm	3 Nm	1186702	piece	100 piece
BS-U1-K-16 FT	12 mm	16 mm	3 Nm	1186709	piece	100 piece
BS-U1-K-22 FT	16 mm	22 mm	3 Nm	1186716	piece	100 piece
BS-U1-K-28 FT	22 mm	28 mm	3 Nm	1186722	piece	100 piece
BS-U1-K-34 FT	28 mm	34 mm	3 Nm	1186729	piece	100 piece
BS-U1-K-40 FT	34 mm	40 mm	3 Nm	1186736	piece	100 piece
BS-U1-K-46 FT	40 mm	46 mm	5 Nm	1186742	piece	100 piece
BS-U1-K-52 FT	46 mm	52 mm	5 Nm	1186749	piece	100 piece
BS-U1-K-58 FT	52 mm	58 mm	5 Nm	1186756	piece	100 piece
BS-U1-K-64 FT	58 mm	64 mm	5 Nm	1186762	piece	100 piece
BS-U1-K-70 FT	64 mm	70 mm	5 Nm	1186769	piece	50 piece
BS-U1-K-76 FT	70 mm	76 mm	5 Nm	1186776	piece	25 piece
BS-U1-K-82 FT	76 mm	82 mm	5 Nm	1186782	piece	25 piece
BS-U1-K-90 FT	82 mm	90 mm	5 Nm	1186789	piece	25 piece
BS-U1-K-100 FT	90 mm	100 mm	5 Nm	1186797	piece	25 piece
