Note: This article is discontinued. You can find the current article here: 1186822 / Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Clamp clip, single, A2 plastic pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 18 mm and 22 mm.

Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.

Technical data

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,321 kg CO₂e / 1 Piece

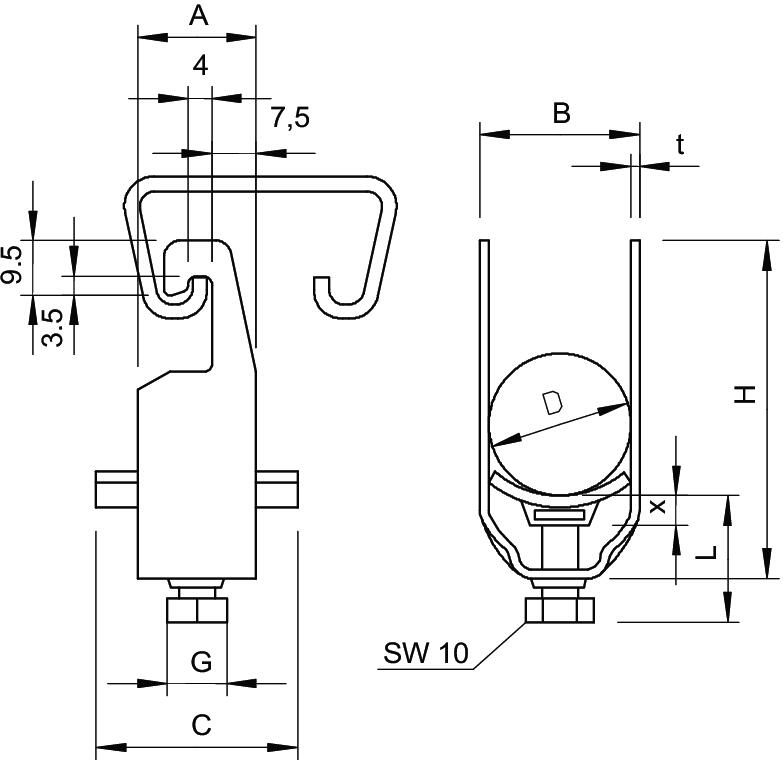

Dimension	22-28mm
Dimension A	20 mm
Dimension B	33 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	59 mm
Dimension L	34 mm
Dimension t	2 mm
Dimension x	5 mm
for 1 cable H	59 mm
for 1 cable L	34
For pipe diameter, max.	25 mm
For pipe diameter, min.	25 mm

for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Impact-resistant	no
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	Untreated
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U 12 A2	8 mm	12 mm	3 Nm	1178504	piece	50 piece
2056U 22 A2	16 mm	22 mm	3 Nm	1178520	piece	50 piece
2056U 28 A2	22 mm	28 mm	3 Nm	1178539	piece	50 piece
2056U 52 A2	46 mm	52 mm	5 Nm	1178571	piece	25 piece
2056U 70 A2	64 mm	70 mm	5 Nm	1178628	piece	15 piece
