Note: This article is discontinued.
You can find the current article here: 1186869 / Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2
Clamp clip, single, A2 plastic pressure trough
Item no. 1178628 | EAN 4012195075196
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 18 mm and 22 mm.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
-
- Technical data
-
Technical data

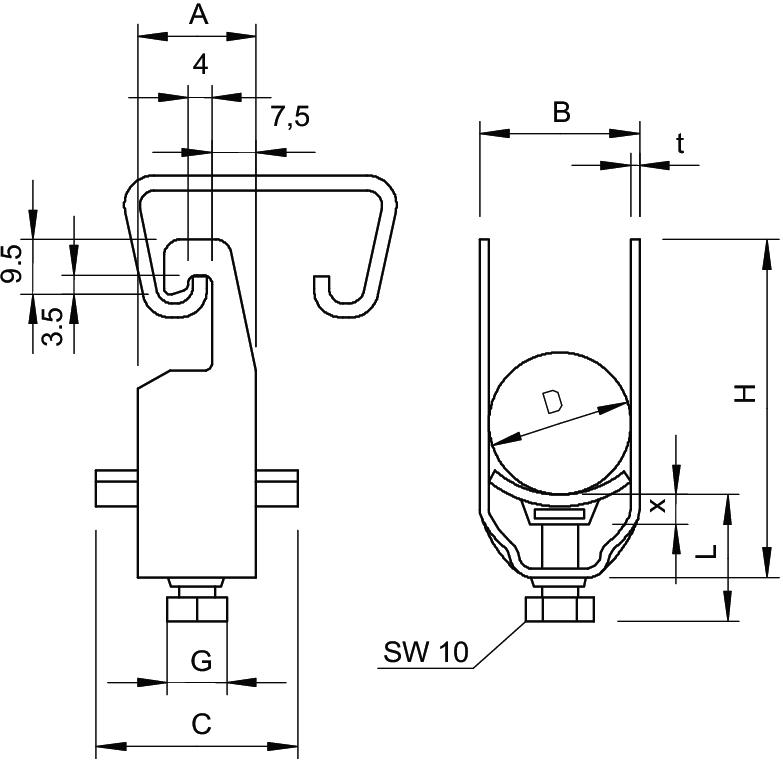

Clamping range D, max. 70 mm Clamping range D, min. 64 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,647 kg CO₂e / 1 Piece Dimension 64-70mm Dimension A 23 mm Dimension B 76 mm Dimension C 40 mm Dimension G (mm) M8 Dimension H 103 mm Dimension L 38,5 mm Dimension t 2,5 mm Dimension x 6,5 mm for 1 cable H 103 mm for 1 cable L 38,5 for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Impact-resistant no Material Stainless steel Material addition Rustproof steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Bright, treated Surface addition Untreated With counter-trough no With metal trough no With plastic trough yes - All types
- Downloads
-
Data sheet 2056U 70 A2 / 1178628 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056U 70 A2 / 1178628 , 0.13MB , pdfREACH Declaration of conformity 2056U 70 A2 / 1178628 , 0.12MB , pdfRoHS Declaration of conformity 2056U 70 A2 / 1178628 , 0.12MB , pdf
