Note: This article is discontinued. You can find the current article here: 1186529 / Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Clamp clip, single, FT metal pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 18 mm and 22 mm.

Technical data

Clamping range D, max.	34 mm
Clamping range D, min.	28 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,1461 kg CO₂e / 1 Piece

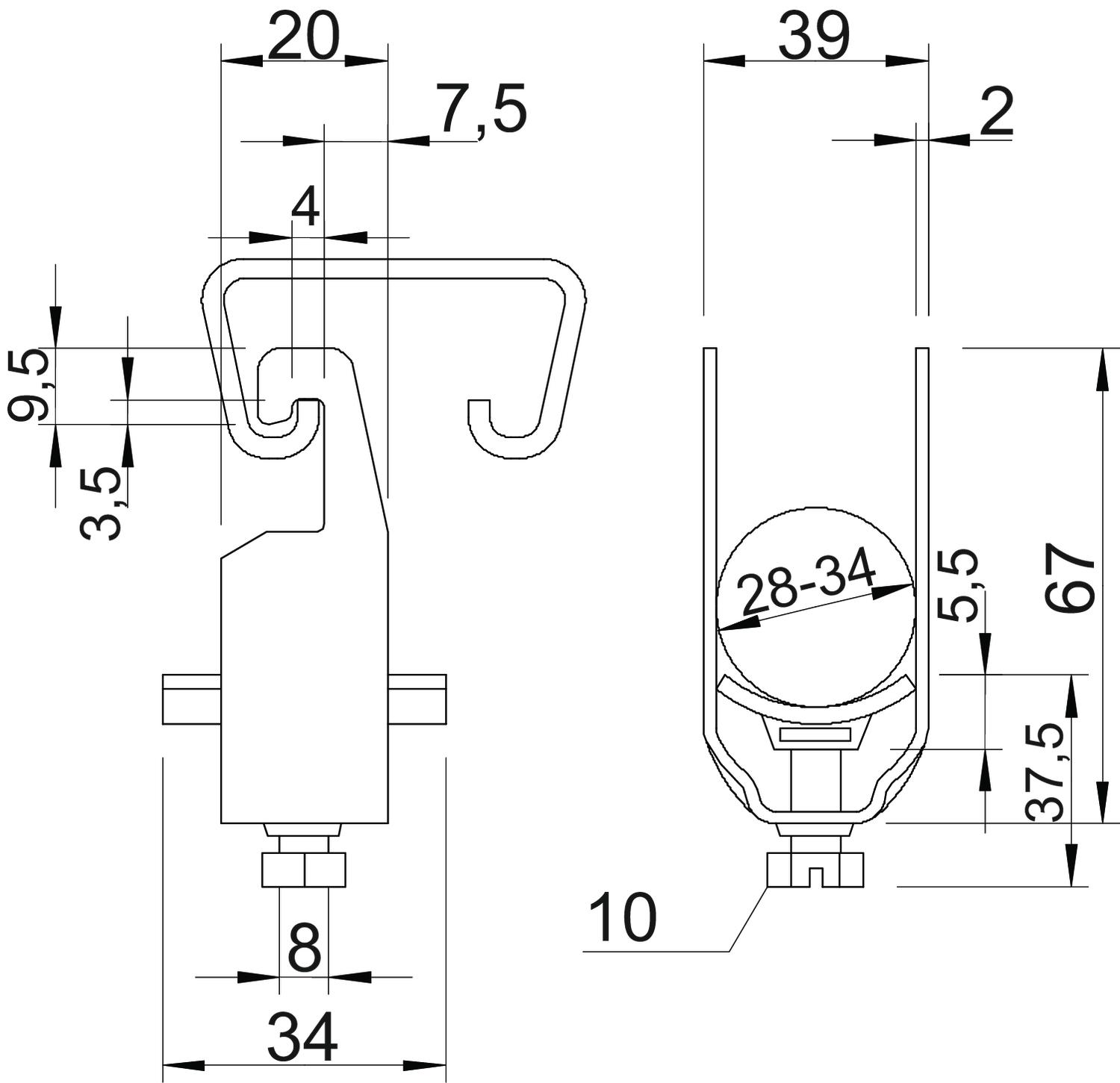

Dimension	28-34mm
Dimension A	20 mm
Dimension B	39 mm
Dimension C	34 mm
Dimension G (mm)	M8
Dimension H	67 mm
Dimension L	37,5 mm
Dimension t	2 mm
Dimension x	5,5 mm
For pipe diameter, max.	32 mm
For pipe diameter, min.	32 mm
for rail with slot width (with interval), max.	22 mm

for rail with slot width (with interval), min.	18 mm
Halogen-free	no
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U M 12 FT	8 mm	12 mm	3 Nm	1158007	piece	100 piece
2056U M 16 FT	12 mm	16 mm	3 Nm	1158015	piece	100 piece
2056U M 22 FT	16 mm	22 mm	3 Nm	1158023	piece	100 piece
2056U M 34 FT	28 mm	34 mm	5 Nm	1158058	piece	100 piece
2056U M 40 FT	34 mm	40 mm	5 Nm	1158066	piece	100 piece
2056U M 46 FT	40 mm	46 mm	5 Nm	1158074	piece	100 piece
2056U M 58 FT	52 mm	58 mm	5 Nm	1158090	piece	100 piece
