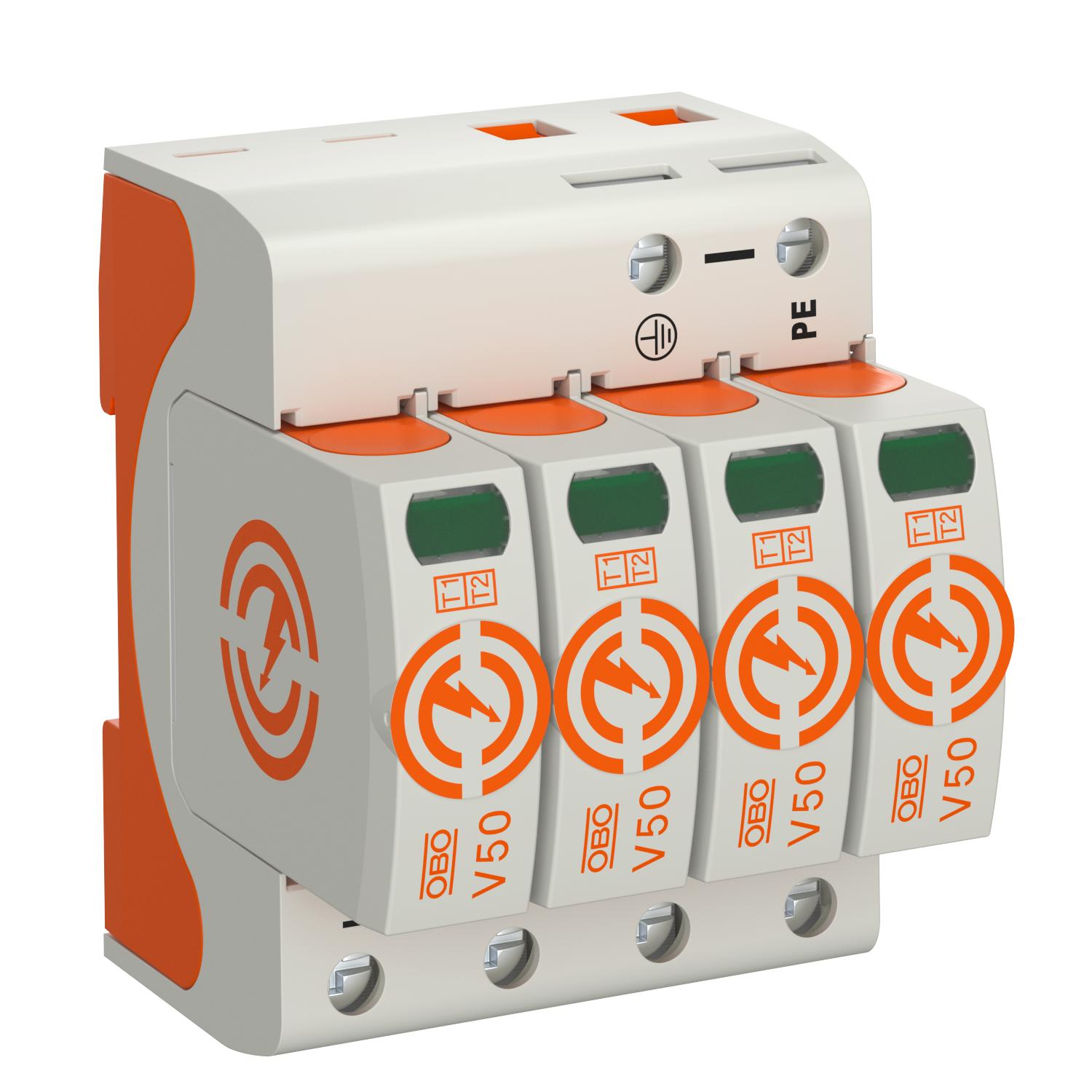

Combination arrester V50, 4-pole 280 V
Item no. 5093513 | EAN 4012196159628
- Product description
-
Product description

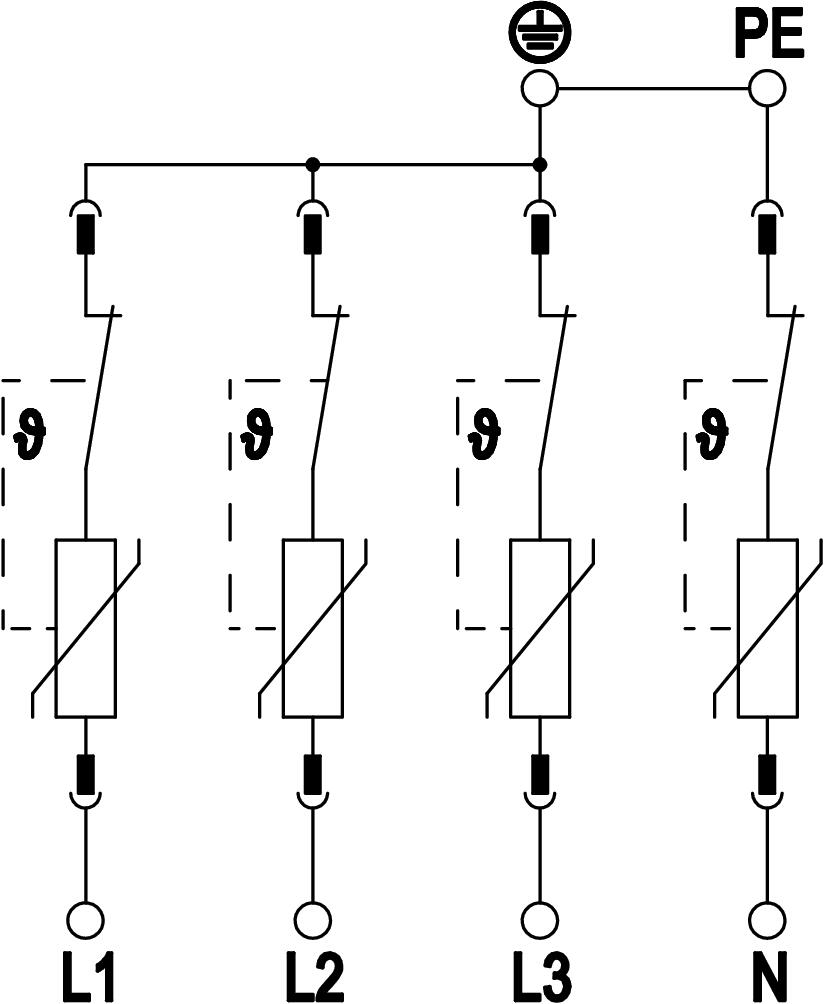

Lightning current combination arrester, type 1+2
• For lightning current equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lightning current equipotential bonding for buildings of class III and IV.
* Complete = Plug-in arrester and base
-
- Technical data
-

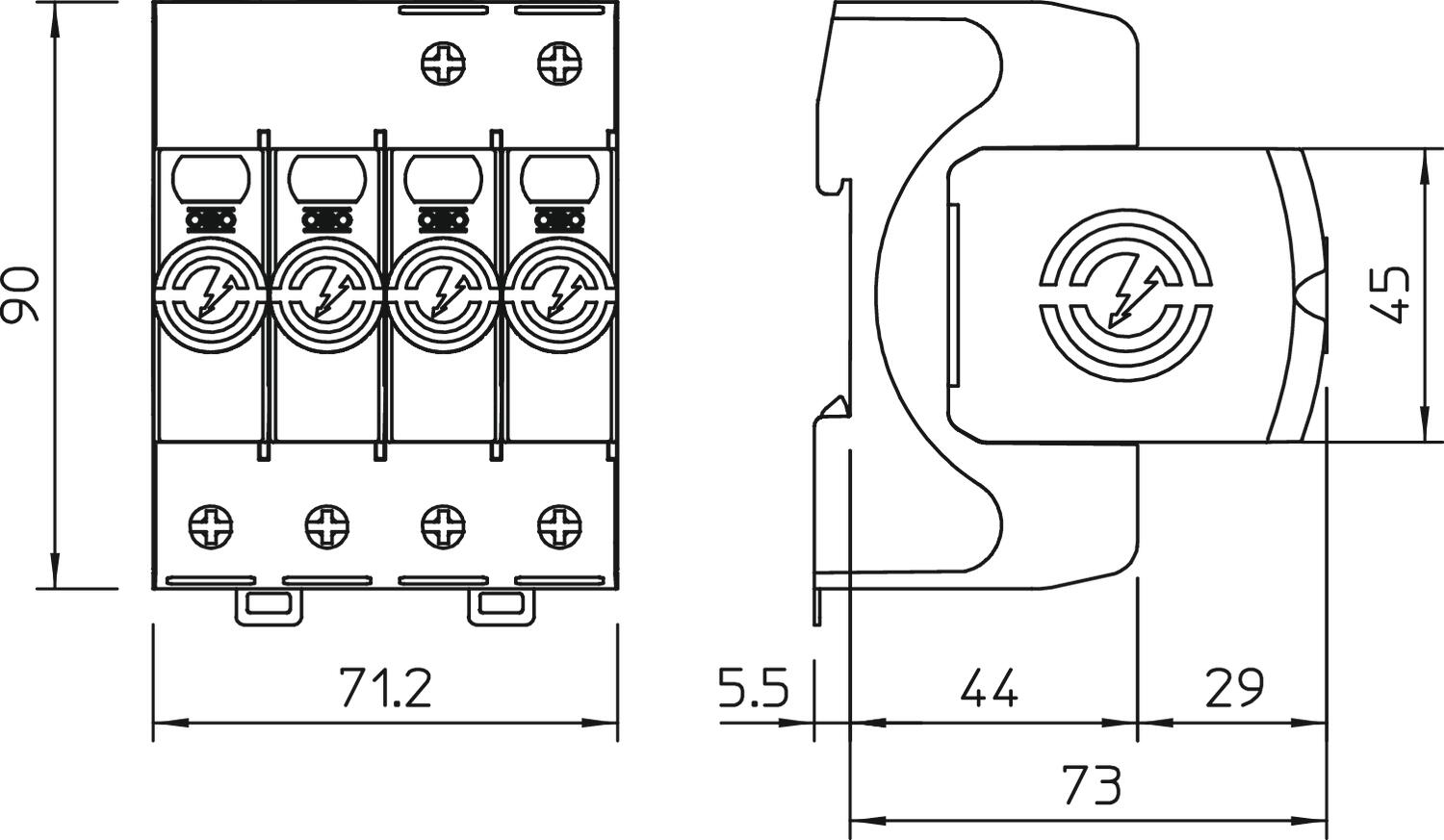

Technical data
Approvals VDE Arrester surge current (8/20 µs) [total] 160 kA Blow-out no Cable type for surge protection devices Power cable AV Conductor cross-section, flexible (fine-wire), max. 2 AWG Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), min. 16 AWG Conductor cross-section, flexible (fine-wire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG Connection cross-section, FM terminals, max. 16 AWG Connection cross-section, FM terminals, max. 1,5 mm² Connection cross-section, FM terminals, min. 21 AWG Connection cross-section, FM terminals, min. 0,5 mm² Dimension 280V Housing material surge protection components PA UL 94 V-0 Installation type DIN rail 35 mm Integrated back-up fuse no Lightning surge current (10/350 μs) 12,5 kA Lightning surge current (10/350) 50 kA Max. mains-side overcurrent protection 160 A gL/gG Maximum back-up fuse 160 A Maximum continuous voltage (L-N) 280 V Maximum continuous voltage AC 280 Maximum discharge current (8/20 μs) 50 kA Maximum discharge current (8/20 μs) [L-N] 50 kA Minimum distance 1,5 mm Network form TN-S Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 4 Pole version 4 Protection level [L-N] ≤1,3 Protection rating IP20 Remote signalling no Residual voltage [L-N] @ 1 kA 0,7 kV Residual voltage [L-N] @ 12.5 kA 1 kV Residual voltage [L-N] @ 5 kA 0,8 kV Response time <25 ns Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II SPD to UL 1449 Type 4 TN network form yes TN-C-S network form yes TN-S network form yes Torque 4 Nm TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 440 V TOV voltage [L-N] ‒ withstand mode ‒ 5 s 335 V TT network form no - All types
