Note: This article is discontinued.
You can find the current article here: 2003700 / UP Flush-mounted device box 46
- Product description
-
Product description

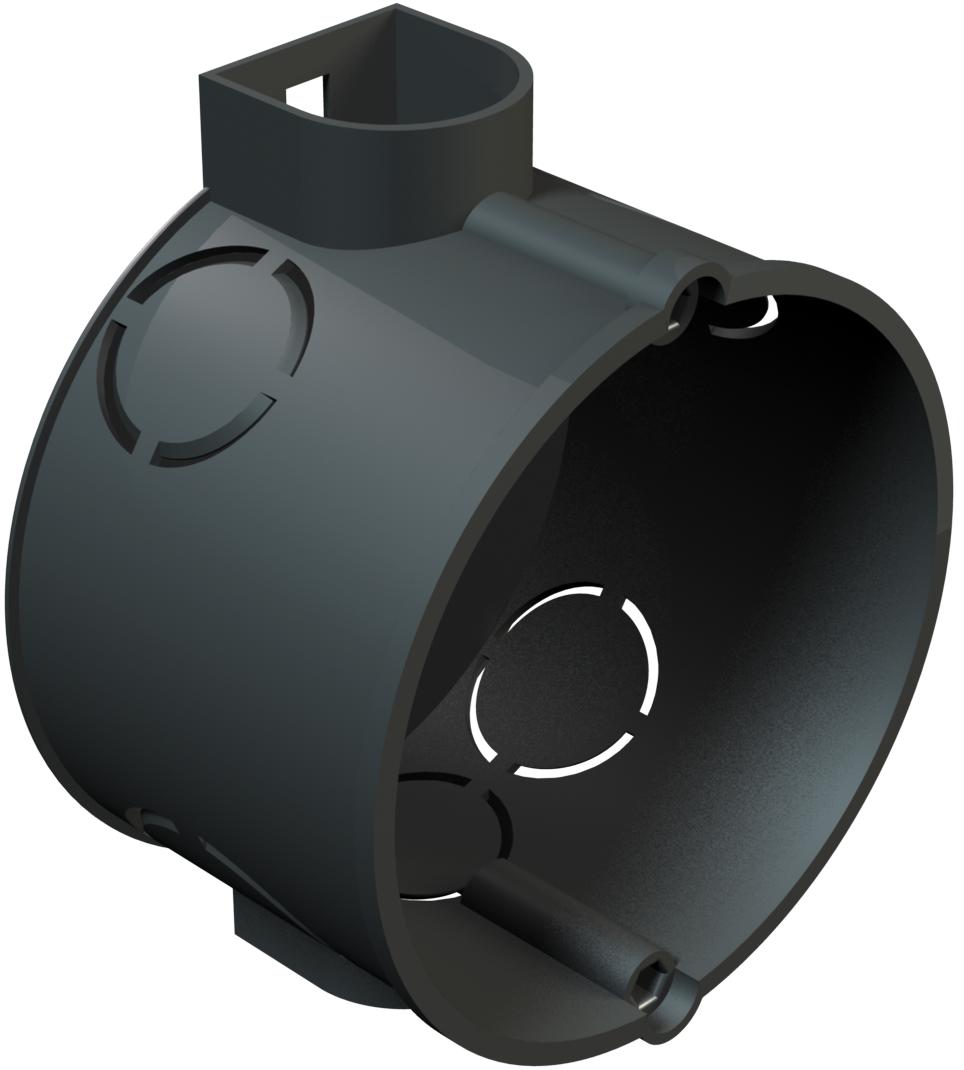

Device socket with torsion-resistant guaranteed standard combination spacing of 71 mm (to DIN 49 073-1) through Snap–lock coupling. 7 break-out openings for cables and pipes Ø 20 mm and Ø 25 mm. Combinable for spreading and screw fastening, low-lying plaster brackets, device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws, with 2 screw bosses without screws, protection rating IP20.
- Technical data
-
Technical data

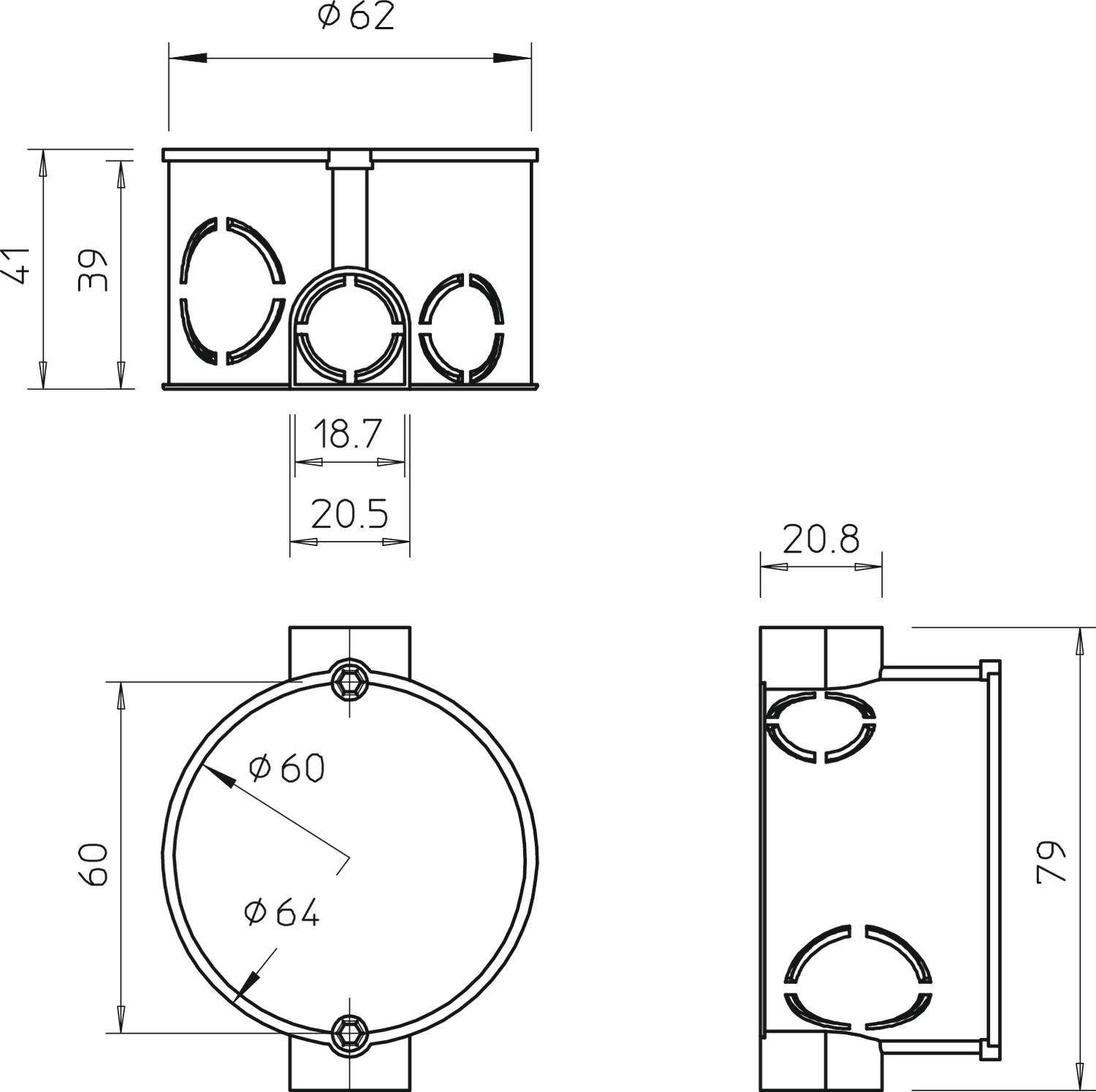

Accessory screw clearance 60 mm Airtight no Colour Black Cover Without Cover fastening Not applicable Device fixing Screw or spread Diameter 60 mm Diameter, interior 60 mm Dimension Ø60mm, H40mm Entries 7 Entry from rear no Equipment Without Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Floor height, min. 42 mm for pipe diameter 20/25 mm Halogen-free yes Height 40 mm Impact-resistant yes Maintain electrical functions Without Material Polystyrene No. of entries 7 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 1 Protection rating IP20 Rated voltage 400 V Sealable no Shape Round Support Tunnel support Type of housing penetration Pre-marking Type of insertion… break-out openings for cables and pipes Ø 20 mm and Ø 25 mm With bolts no With nail strap no With screening no - All types
- Downloads
-
Data sheet UG 60 D / 2003015 , 0.30MB , pdfDeclaration of conformity UG 60 D / 2003015 , 0.04MB , pdfLabel approval VDE symbol approval, UG 60... , 0.12MB , pdf
