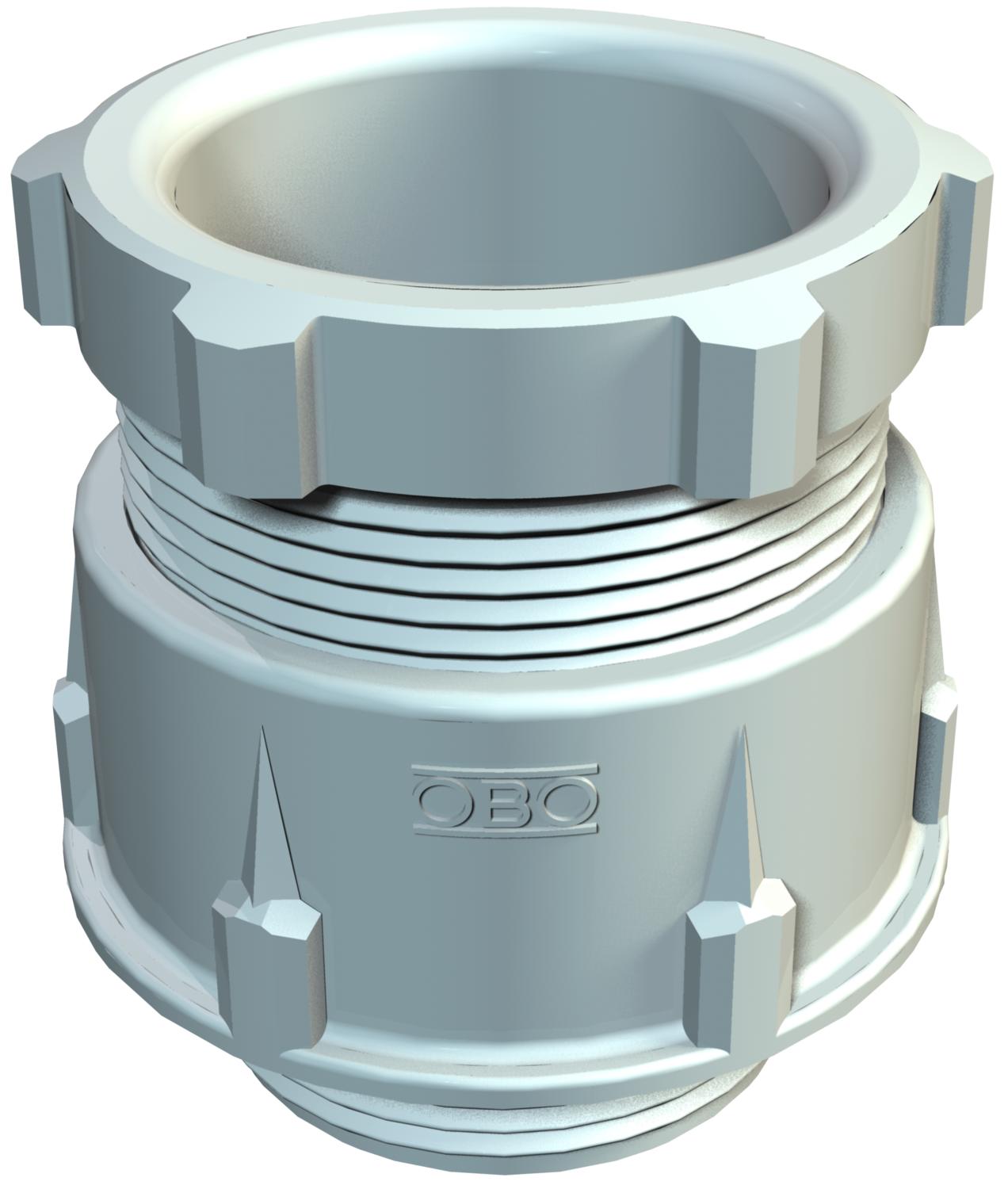

Cone cable gland, metric thread, light grey

Item no. 2035324 | EAN 4012195465072

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension M16
Dimension D1 7 mm
Dimension D2 21,5 mm
Dimension D3 10,2 mm
Dimension D4 10 mm
Dimension G M16x1,5 mm
Dimension L max. 25 mm
Dimension L1 8 mm
Dimension L2 14 mm
Dimension L3 5 mm
Dimension L4 9 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 30 mm
Impact-resistant yes
Length 21,5 mm
Material Polystyrene
Nominal thread size 16
Protection rating IP65
Sealing area D, max. 7 mm
Sealing area D, min. 4,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M16 x 1,5
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Version for Straight
WAF 1 19 mm
WAF 2 16 mm
Width 21,5 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106 M12 PS M12 x 1,5 2035316
50 piece
106 M16 PS M16 x 1,5 2035324
50 piece
106 M 20 PS M20 x 1,5 2035332
50 piece
106 M 25 PS M25 x 1,5 2035340
50 piece
106 M 32 PS M32 x 1,5 2035359
10 piece
106 M 40 PS M40 x 1,5 2035367
10 piece
106 M 50 PS M50 x 1,5 2035375
5 piece
106 M 63 PS M63 x 1,5 2035383
5 piece
