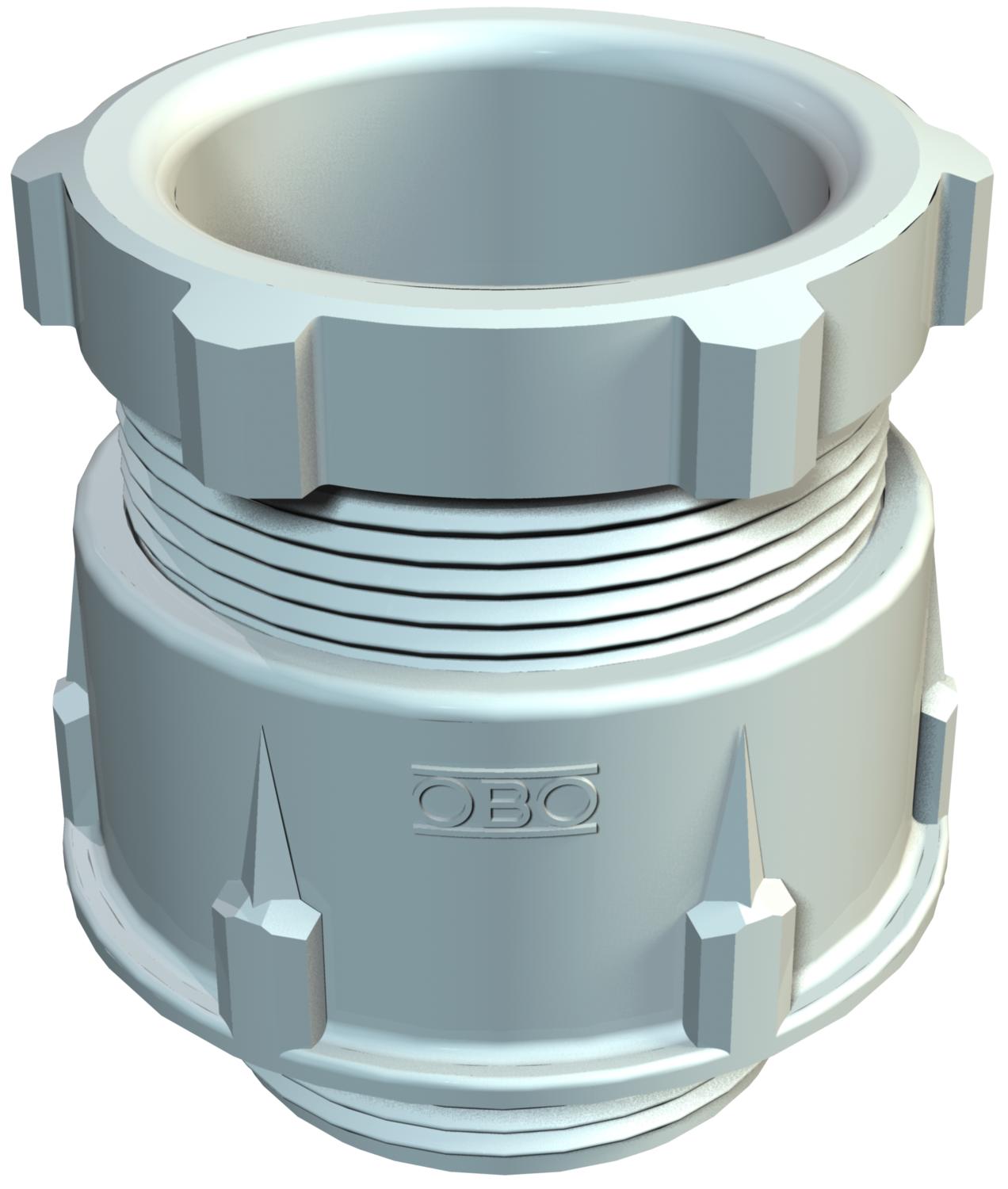

Cone cable gland, metric thread, light grey
Item no. 2035332 | EAN 4012195465256
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M20 Dimension D1 13 mm Dimension D2 27 mm Dimension D3 13,4 mm Dimension D4 13,5 mm Dimension G M20x1,5 mm Dimension L max. 28 mm Dimension L1 9 mm Dimension L2 16 mm Dimension L3 5 mm Dimension L4 10,8 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 35 mm Impact-resistant yes Length 27 mm Material Polystyrene Nominal thread size 20 Protection rating IP65 Sealing area D, max. 13 mm Sealing area D, min. 9 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread M20 x 1,5 Thread length 9 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 1 24 mm WAF 2 21 mm Width 27 mm With locknut no - All types
- Downloads
-
Data sheet 106 M 20 PS / 2035332 , 0.24MB , pdfEU declaration of conformity 106 M 20 PS / 2035332 , 0.13MB , pdfREACH Declaration of conformity 106 M 20 PS / 2035332 , 0.12MB , pdfRoHS Declaration of conformity 106 M 20 PS / 2035332 , 0.12MB , pdf
