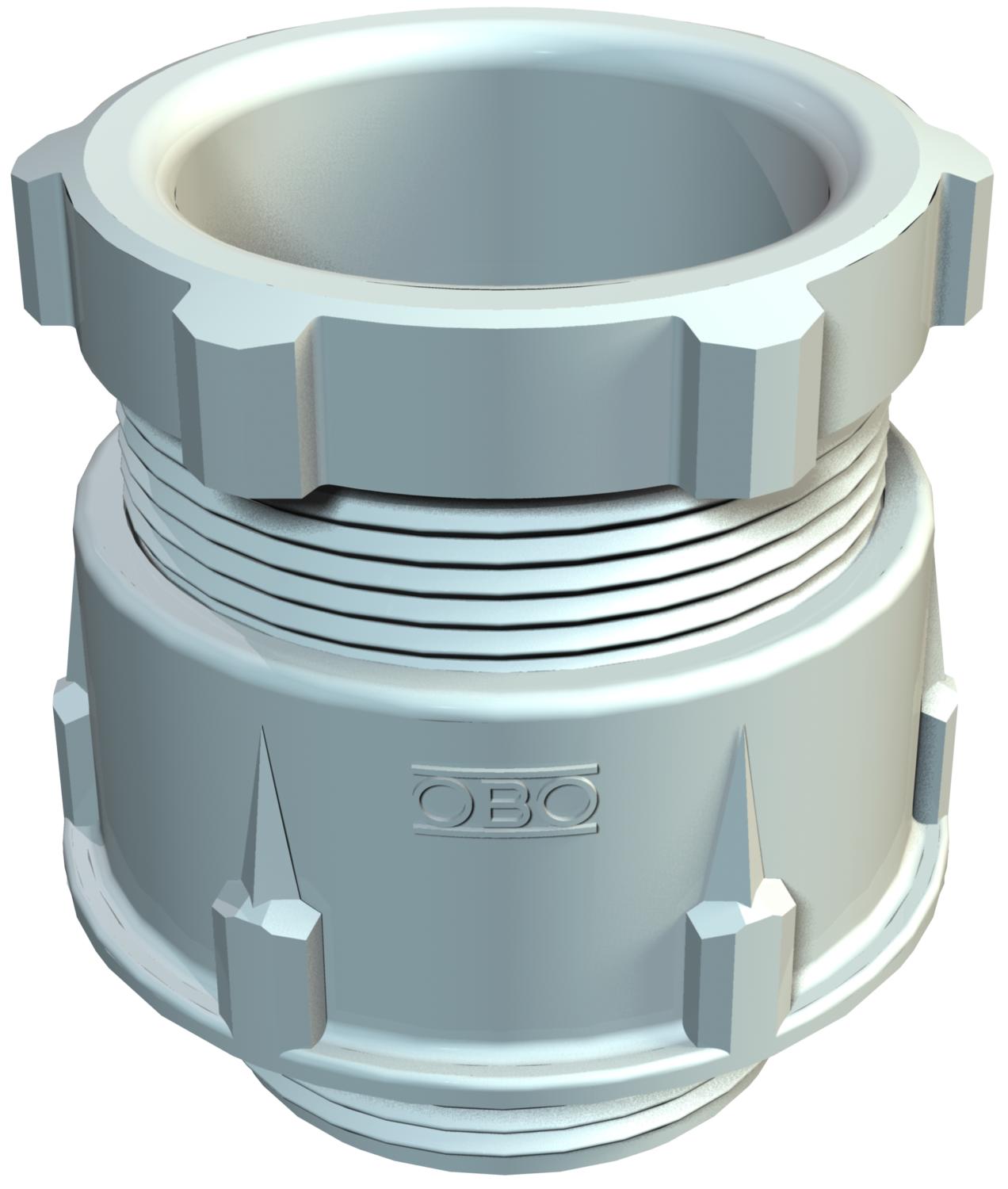

Cone cable gland, metric thread, light grey

Item no. 2035359 | EAN 4012195467410

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension M32
Dimension D1 25 mm
Dimension D2 47,5 mm
Dimension D3 30,3 mm
Dimension D4 26 mm
Dimension G M32x1,5 mm
Dimension L max. 42 mm
Dimension L1 11 mm
Dimension L2 20,5 mm
Dimension L3 8 mm
Dimension L4 18 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 50,5 mm
Impact-resistant yes
Length 47,5 mm
Material Polystyrene
Nominal thread size 32
Protection rating IP65
Sealing area D, max. 25 mm
Sealing area D, min. 18 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M32 x 1,5
Thread length 11 mm
Thread type Metric
Type of seal Sealing ring
Version for Straight
WAF 1 42 mm
WAF 2 40 mm
Width 47,5 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106 M12 PS M12 x 1,5 2035316
50 piece
106 M16 PS M16 x 1,5 2035324
50 piece
106 M 20 PS M20 x 1,5 2035332
50 piece
106 M 25 PS M25 x 1,5 2035340
50 piece
106 M 32 PS M32 x 1,5 2035359
10 piece
106 M 40 PS M40 x 1,5 2035367
10 piece
106 M 50 PS M50 x 1,5 2035375
5 piece
106 M 63 PS M63 x 1,5 2035383
5 piece
