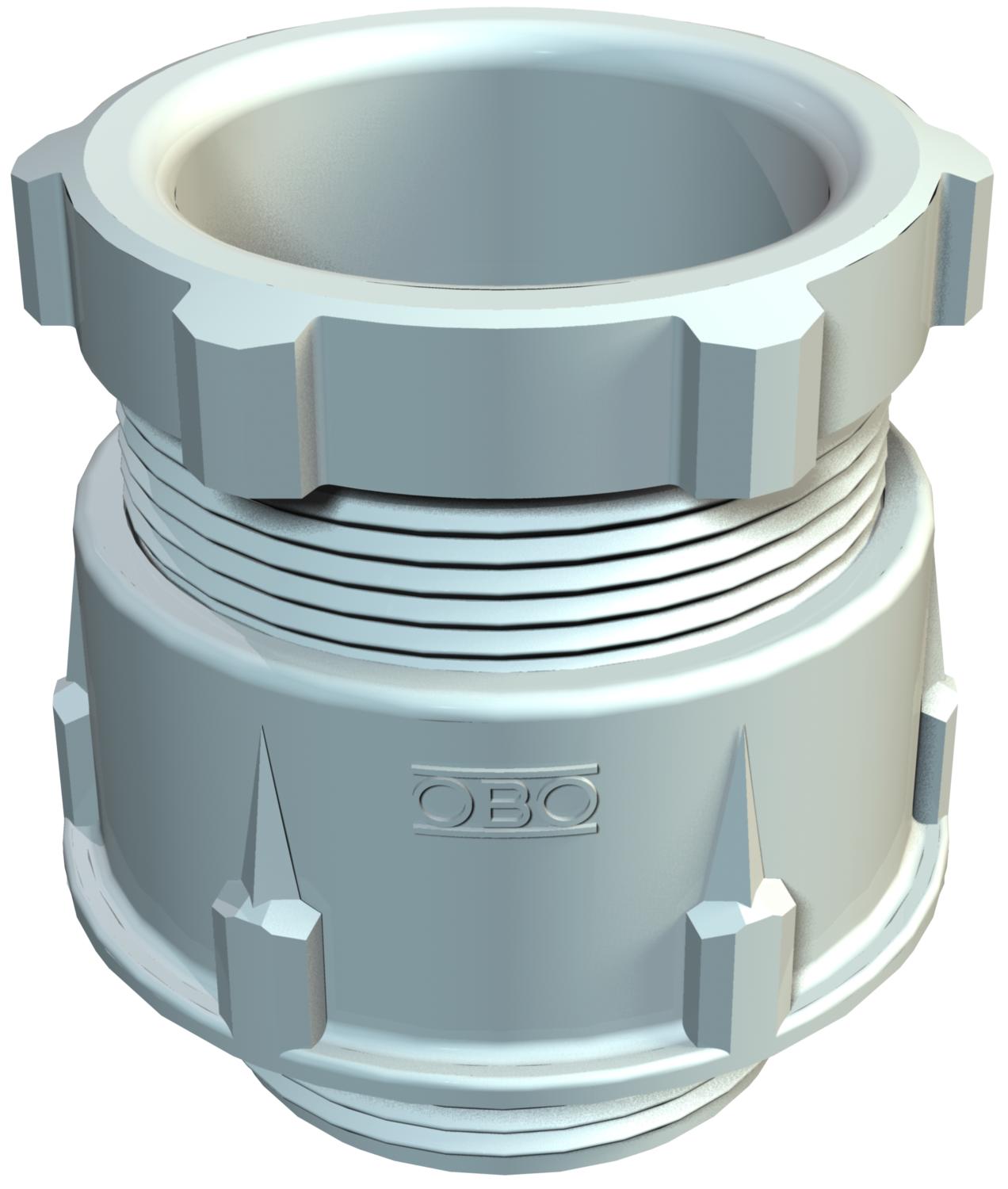

Cone cable gland, metric thread, light grey

Item no. 2035383 | EAN 4012195468011

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension M63
Dimension D1 44 mm
Dimension D2 74 mm
Dimension D3 50 mm
Dimension D4 40,5 mm
Dimension G M63x1,5 mm
Dimension L max. 48 mm
Dimension L1 14 mm
Dimension L2 27 mm
Dimension L3 9 mm
Dimension L4 18,5 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 60,5 mm
Impact-resistant yes
Length 70 mm
Material Polystyrene
Nominal thread size 63
Protection rating IP65
Sealing area D, max. 44 mm
Sealing area D, min. 37 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M63 x 1,5
Thread length 14 mm
Thread type Metric
Type of seal Sealing ring
Version for Straight
WAF 1 65 mm
WAF 2 60 mm
Width 74 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106 M12 PS M12 x 1,5 2035316
50 piece
106 M16 PS M16 x 1,5 2035324
50 piece
106 M 20 PS M20 x 1,5 2035332
50 piece
106 M 25 PS M25 x 1,5 2035340
50 piece
106 M 32 PS M32 x 1,5 2035359
10 piece
106 M 40 PS M40 x 1,5 2035367
10 piece
106 M 50 PS M50 x 1,5 2035375
5 piece
106 M 63 PS M63 x 1,5 2035383
5 piece
