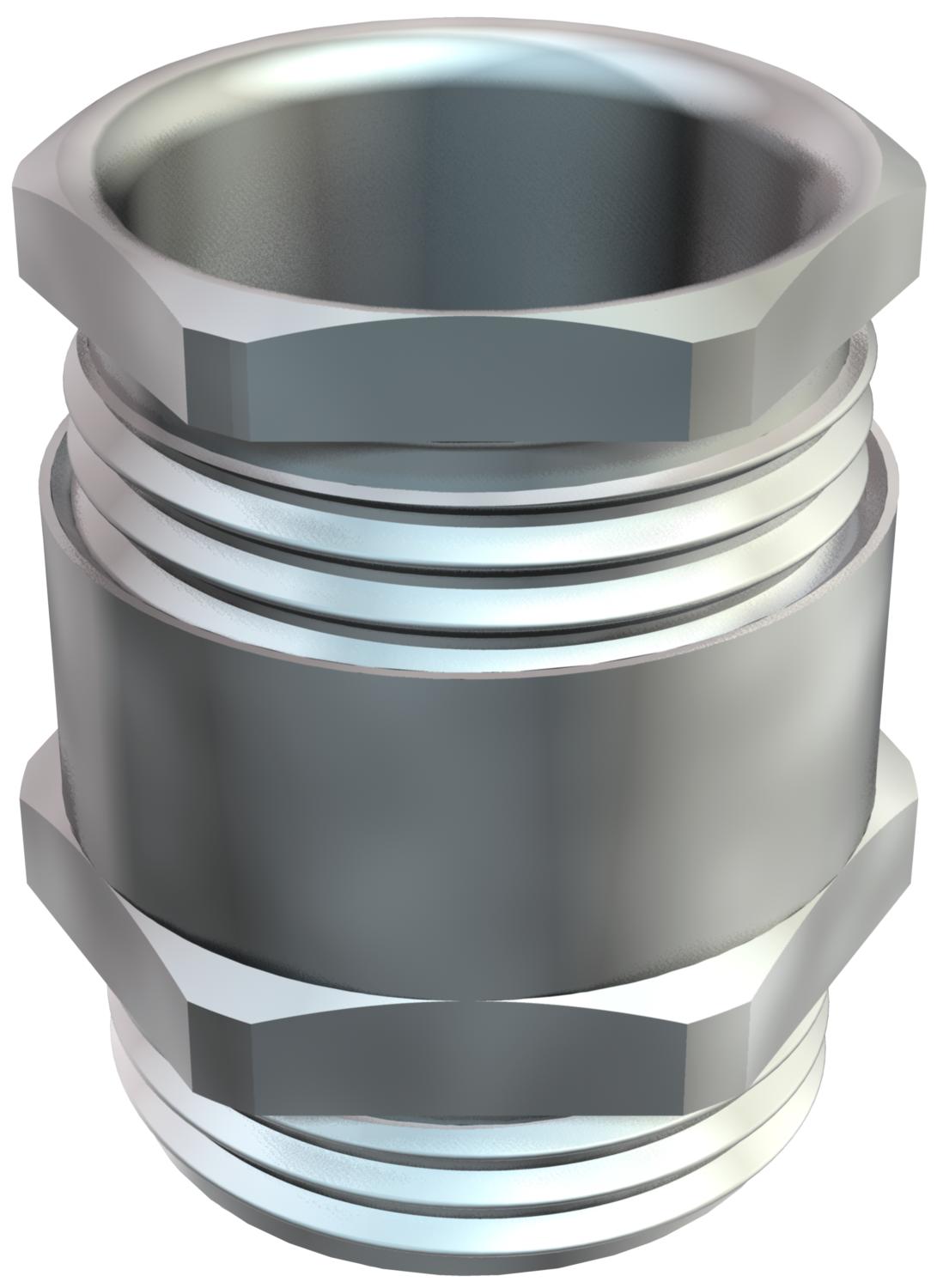

Cone cable gland, metric thread, small cutting ring, nickel-plated

Item no. 2083639 | EAN 4012195481874

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel.

NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With simple sealing ring, with small internal diameter.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric

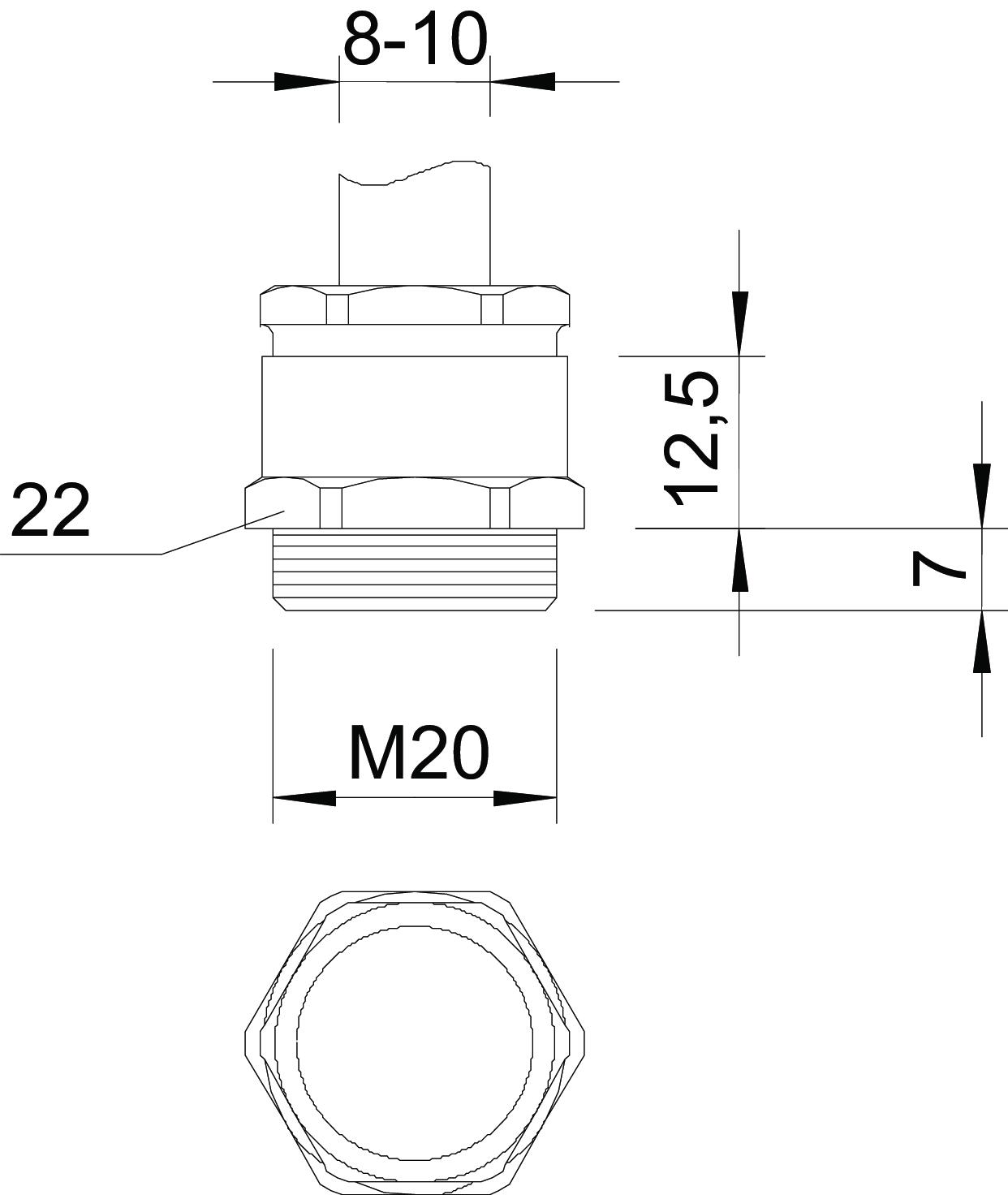

Technical data

Technical data

Bend protection no
Dimension M20
Dimension E 24,4 mm
Dimension L1 7 mm
Dimension L2 12,5 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Impact-resistant no
Material Brass
Protection rating IP54
Sealing area D, max. 10 mm
Sealing area D, min. 8 mm
Sealing insert, multiple no
Strain relief option no
Surface Nickel-plated
Thread M20 x 1,5
Thread length 7 mm
Thread type Metric
Type of seal Sealing ring
WAF 1 22 mm
WAF 2 20 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
163 MS M20 M20 x 1,5 2083639
25 piece
163 MS M25 M25 x 1,5 2083647
25 piece
