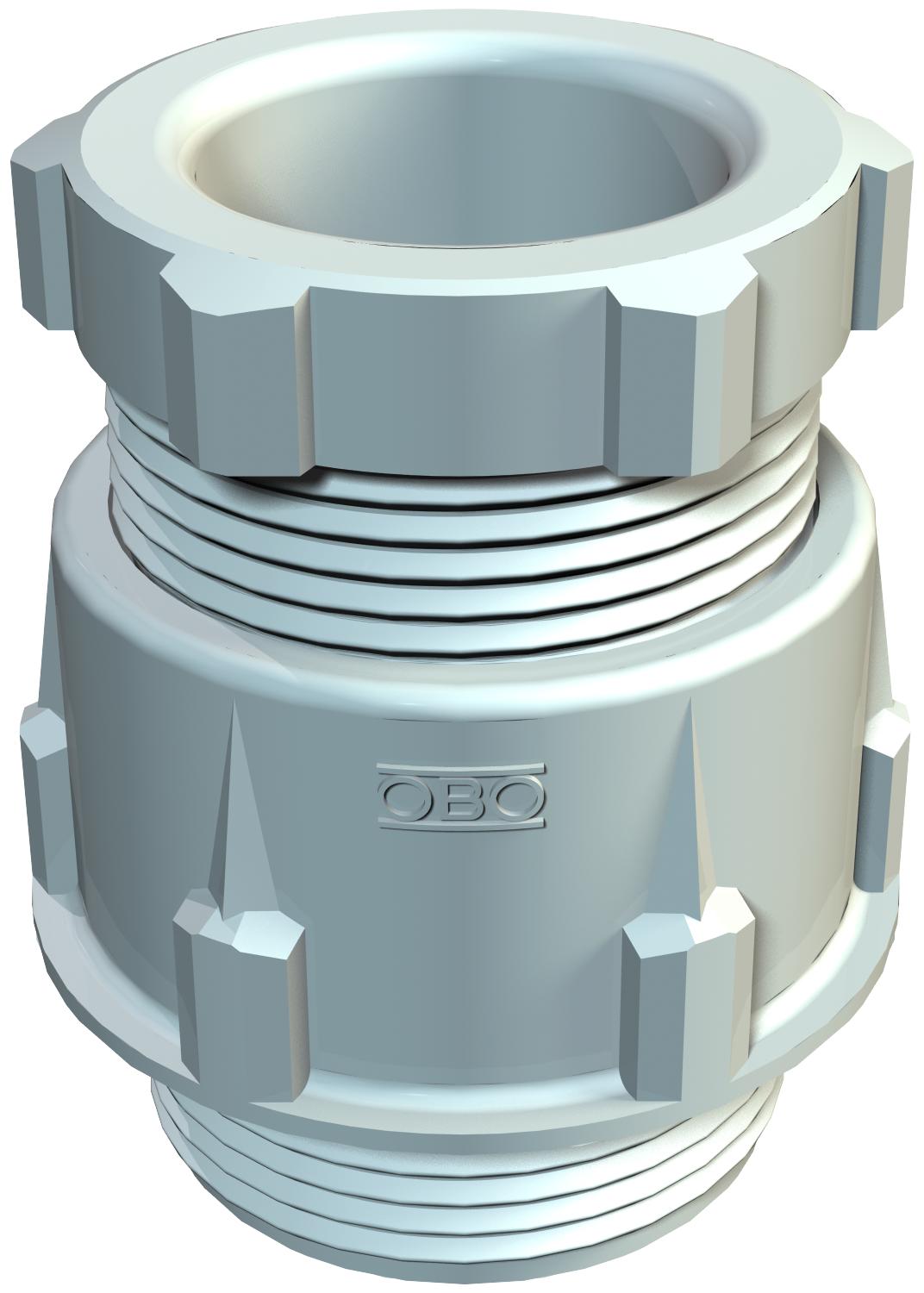

Cone cable gland, PG thread, light grey
Item no. 2036118 | EAN 4012195172277
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG11 Dimension D1 9 mm Dimension D2 25 mm Dimension D3 13 mm Dimension D4 13 mm Dimension G Pg11 mm Dimension L max. 27 mm Dimension L1 8 mm Dimension L2 15 mm Dimension L3 5 mm Dimension L4 10 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 33 mm Impact-resistant no Length 25 mm Material Polystyrene Nominal thread size 11 Protection rating IP65 Sealing area D, max. 10 mm Sealing area D, min. 5,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 11 Thread length 8 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 22 mm WAF 2 19 mm Width 25 mm With locknut no - All types
