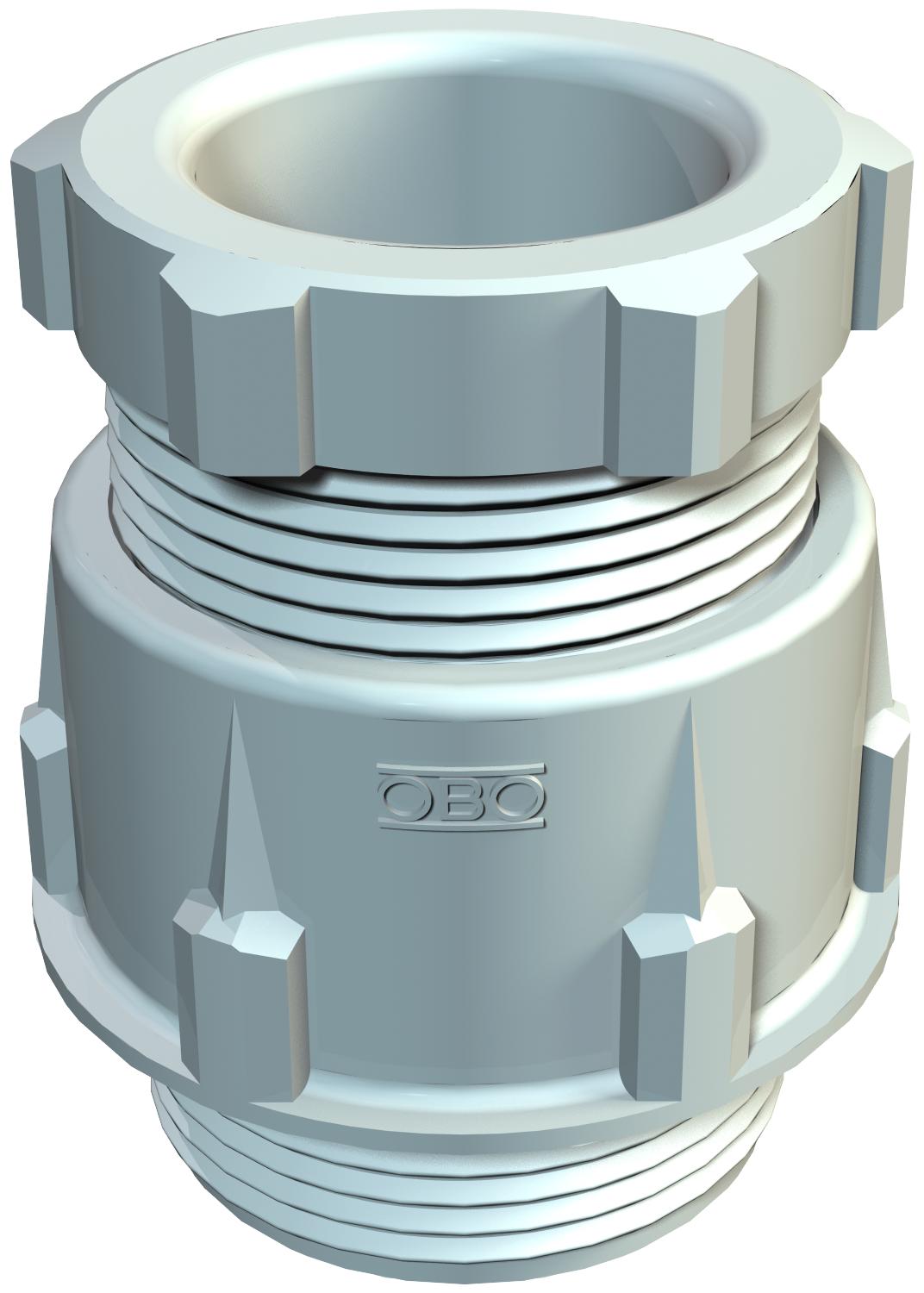

Cone cable gland, PG thread, light grey
Item no. 2036169 | EAN 4012195172574
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG16 Dimension D1 14 mm Dimension D2 30 mm Dimension D3 16 mm Dimension D4 8 mm Dimension G Pg16 mm Dimension L max. 30 mm Dimension L1 10 mm Dimension L2 16,5 mm Dimension L3 6 mm Dimension L4 12 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 39 mm Impact-resistant no Length 30 mm Material Polystyrene Nominal thread size 16 Protection rating IP65 Sealing area D, max. 14 mm Sealing area D, min. 10 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 16 Thread length 10 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 27 mm WAF 2 23 mm Width 30 mm With locknut no - All types
- Downloads
-
Data sheet 106 PG16 / 2036169 , 0.22MB , pdfEU declaration of conformity 106 PG16 / 2036169 , 0.13MB , pdfREACH Declaration of conformity 106 PG16 / 2036169 , 0.12MB , pdfRoHS Declaration of conformity 106 PG16 / 2036169 , 0.12MB , pdf
