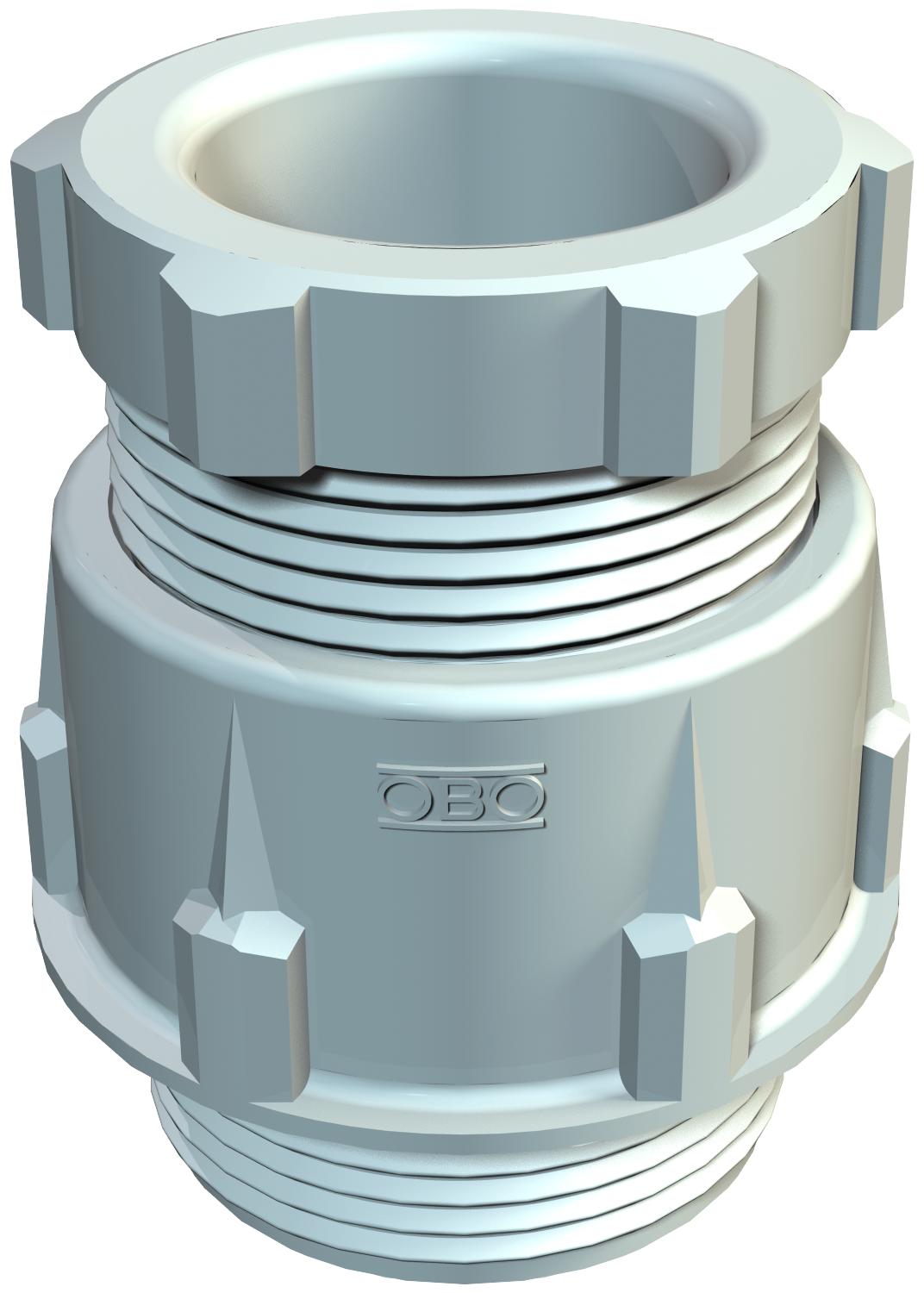

Cone cable gland, PG thread, light grey

Item no. 2036428 | EAN 4012195172994

Product description
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension PG42
Dimension D1 38 mm
Dimension D2 68 mm
Dimension D3 45 mm
Dimension D4 40,5 mm
Dimension G Pg42 mm
Dimension L max. 48 mm
Dimension L1 13 mm
Dimension L2 27 mm
Dimension L3 9 mm
Dimension L4 18,5 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 59 mm
Impact-resistant no
Length 65 mm
Material Polystyrene
Nominal thread size 42
Protection rating IP65
Sealing area D, max. 38 mm
Sealing area D, min. 30 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread Pg 42
Thread length 13 mm
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 1 60 mm
WAF 2 55 mm
Width 68 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106 PG7 Pg 7 2036061
50 piece
106 PG9 Pg 9 2036096
50 piece
106 PG11 Pg 11 2036118
50 piece
106 PG13.5 Pg 13,5 2036134
50 piece
106 PG16 Pg 16 2036169
50 piece
106 PG21 Pg 21 2036215
50 piece
106 PG29 Pg 29 2036290
10 piece
106 PG36 Pg 36 2036363
10 piece
106 PG42 Pg 42 2036428
5 piece
106 PG48 Pg 48 2036487
5 piece
