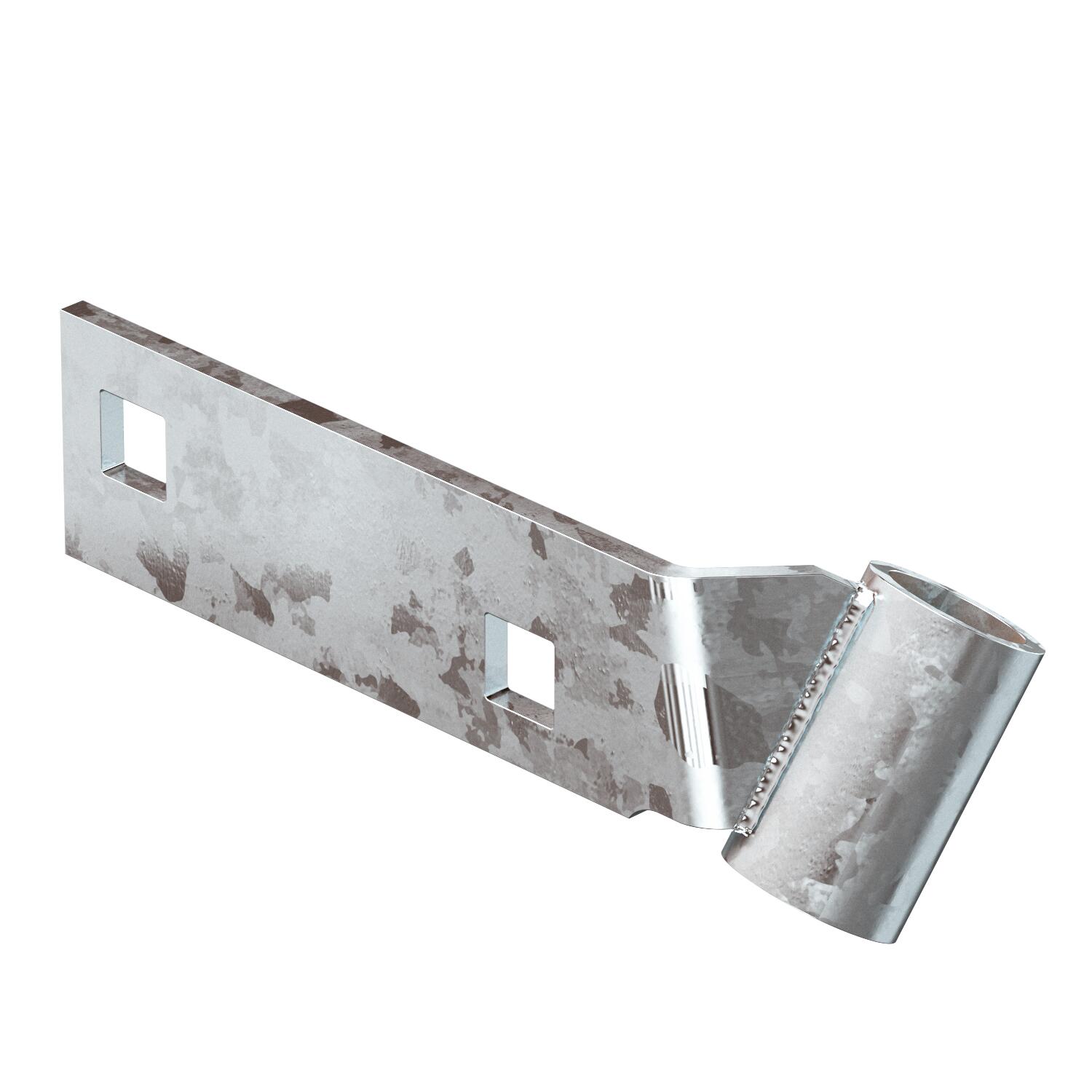

Connection component for bracket, type AW 30
Item no. 7207062 | EAN 4012196846184
- Product description
-
Product descriptionConnection component to accept a threaded rod. Mounting on the tip of the bracket, type AW30. Prevents sagging of the cable support system when subjected to fire load. Including 2 M8 x 16 truss-head bolts and combination nuts.
-
- Technical data
-
Technical data

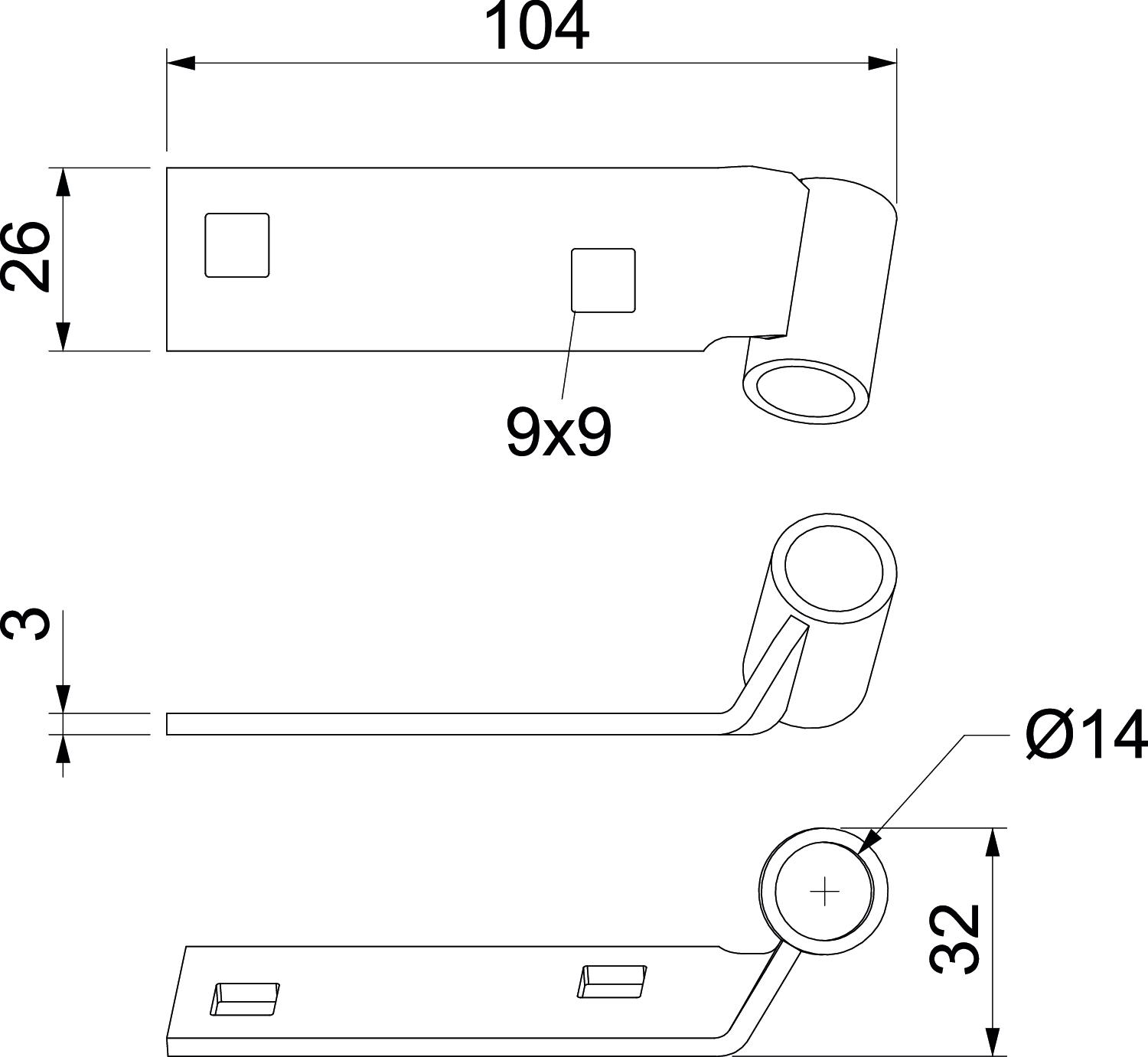

Colour zinc Dimension 103x33x30 Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet AB AW 30 FT / 7207062 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity AB AW 30 FT / 7207062 , 0.10MB , pdfNo invitation to tender text is available for this product.
