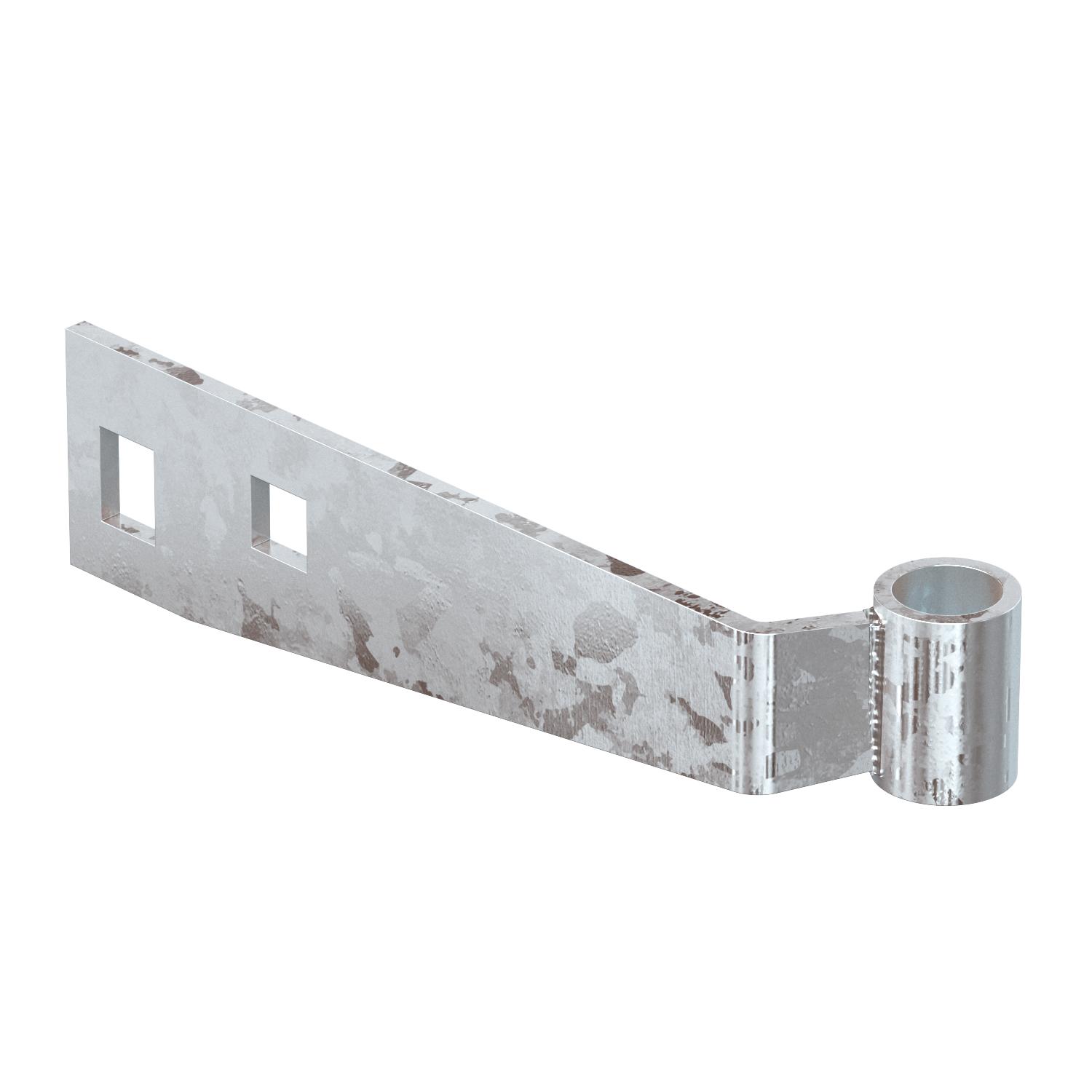

Connection component for bracket, type AW15
Item no. 7207060 | EAN 4012196846177
- Product description
-
Product descriptionConnection component to accept a threaded rod. Mounting on the tip of the bracket, type AW15. Prevents sagging of the cable support system when subjected to fire load. Including 2 M8 x 16 truss-head bolts and combination nuts.
-
- Technical data
-
Technical data

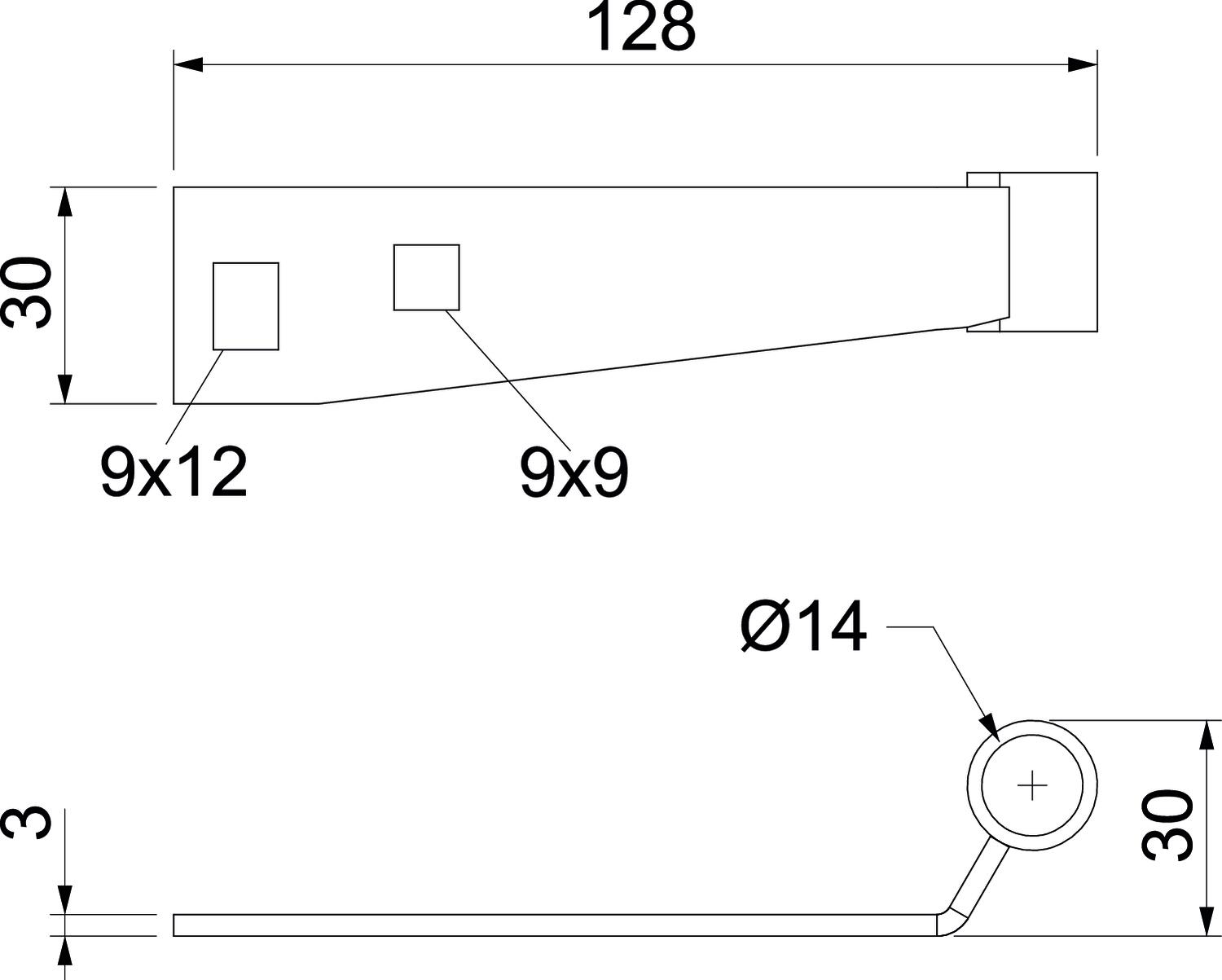

Colour zinc Dimension 127x28x30 Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet AB AW 15 FT / 7207060 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity AB AW 15 FT / 7207060 , 0.10MB , pdfNo invitation to tender text is available for this product.
