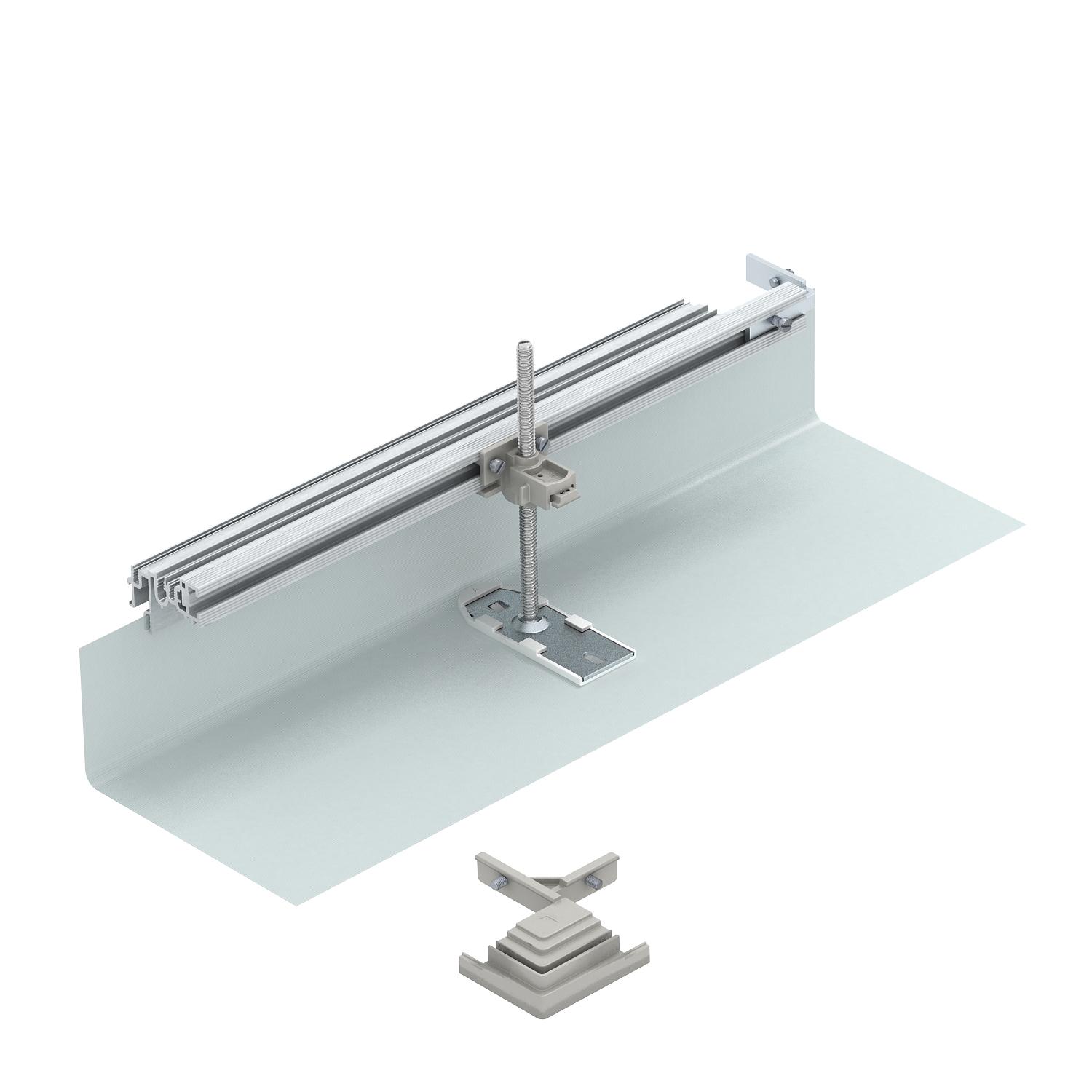

Construction set for 90° angle to right, height 40−150 mm

Item no. 7423978 | EAN 4012195651475

Product description

Product description

For the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Decouplable no

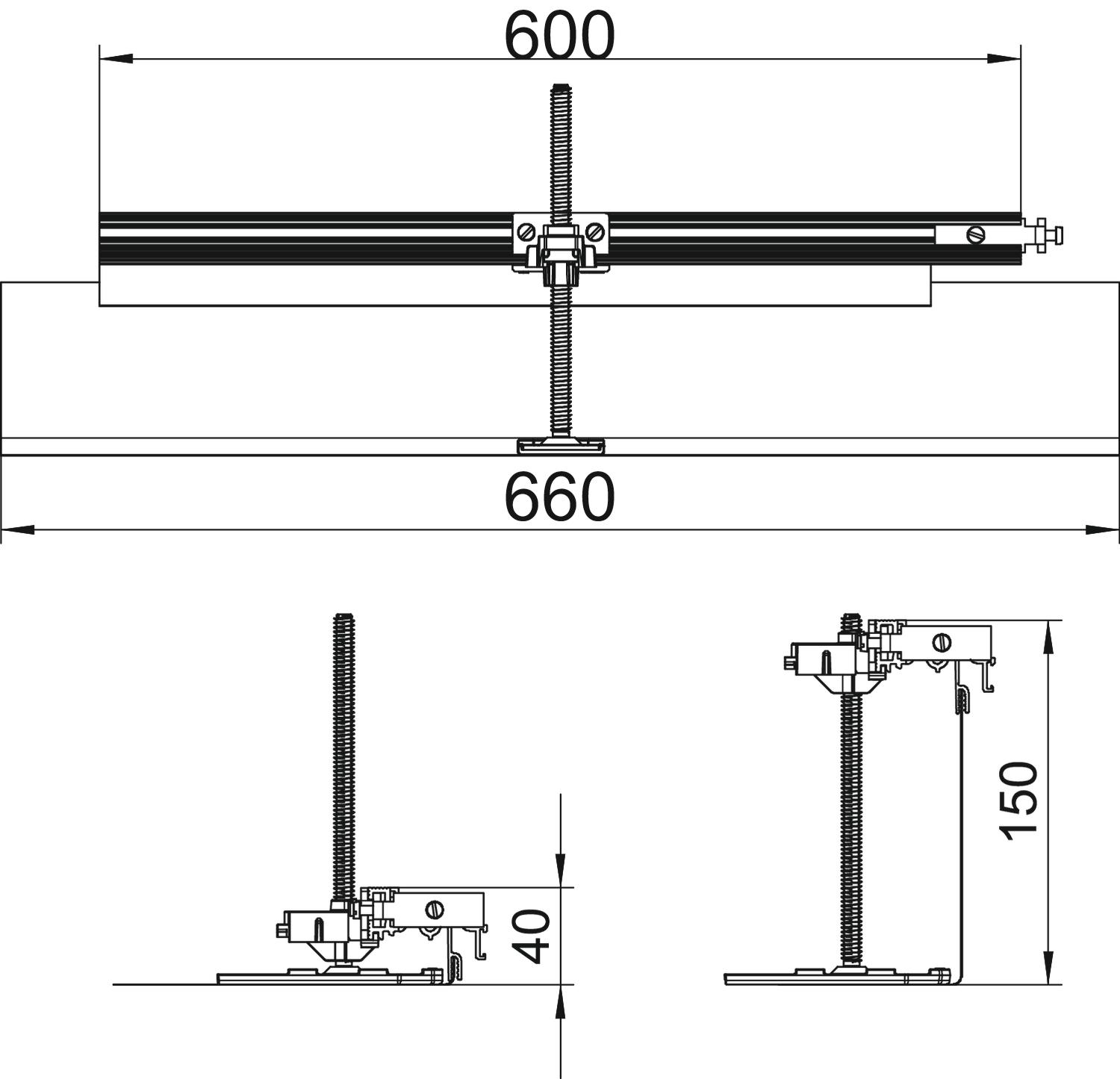

Duct height, min. 40 mm
Floor plate no
Function Branch
Height-adjustment range, max. 110 mm
Installation opening for on-floor tank no
Length 660 mm
Material Steel
Minimum screed height 40
Mounting opening cover no
Removable cover no
Seal installation option no
Suitable for expansion joint no
Suitable for flushfloor, open underfloor trunking no
Suitable for screed-covered underfloor ducts no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking height, max. 150 mm
Width 600 mm
With connection opening no
With equipotential bonding no
With overhang yes
With separating retainer no
All types

All types

Types Width Item no. Quantity SSU
OKA-G20040150FBR 200 mm 7423970
1 piece
OKA-G30040150FBR 300 mm 7423972
1 piece
OKA-G40040150FBR 400 mm 7423974
1 piece
OKA-G50040150FBR 500 mm 7423976
1 piece
OKA-G60040150FBR 600 mm 7423978
1 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
