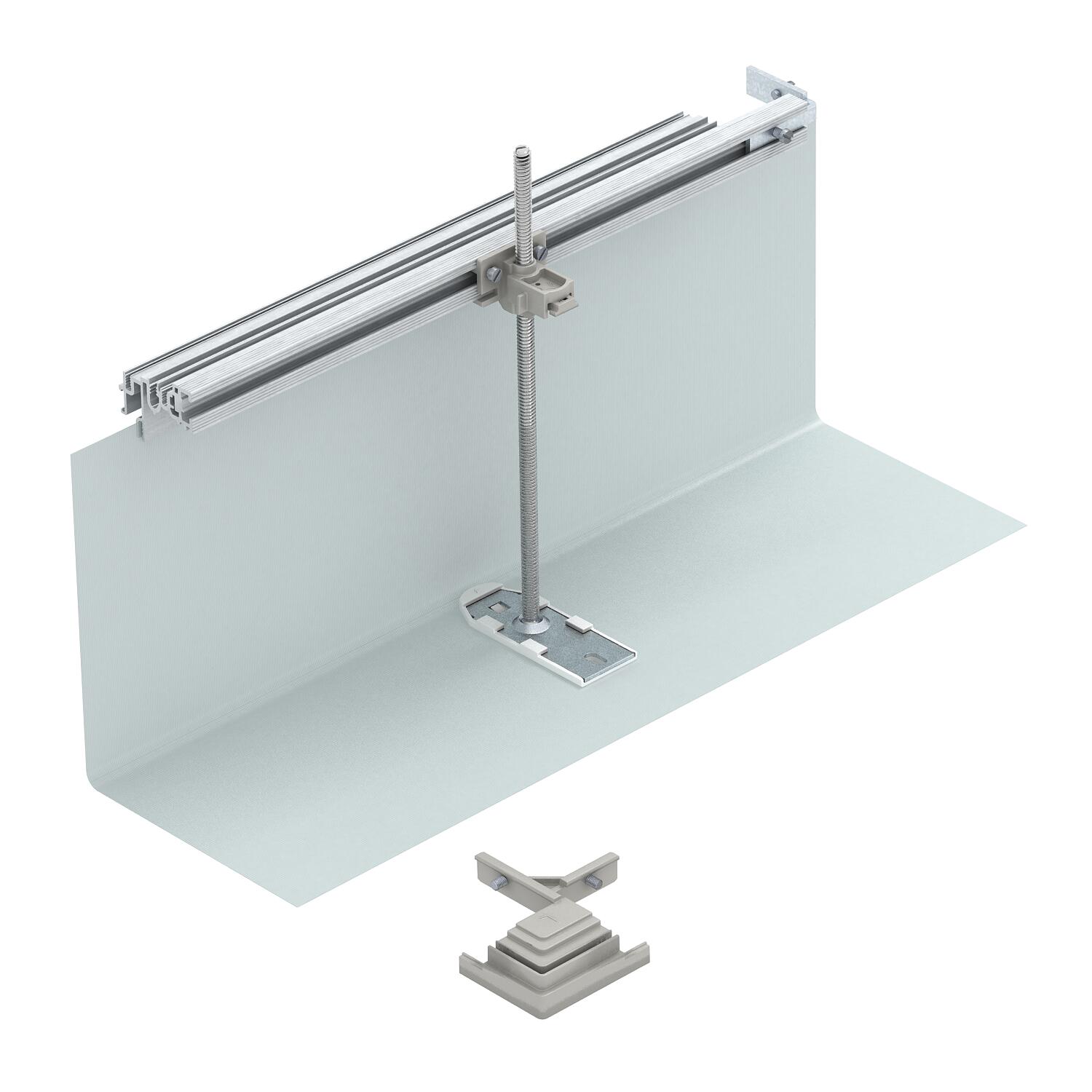

Construction set for 90° angle to right, height 40−240 mm 600

Construction set for 90° angle to right, height 40−240 mm

Item no. 7423988 | EAN 4012195651543

Item no. / Types

Width

Product description

Product description

For the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.

Technical data

Technical data

Cover fastening, locking	no
Decouplable	no

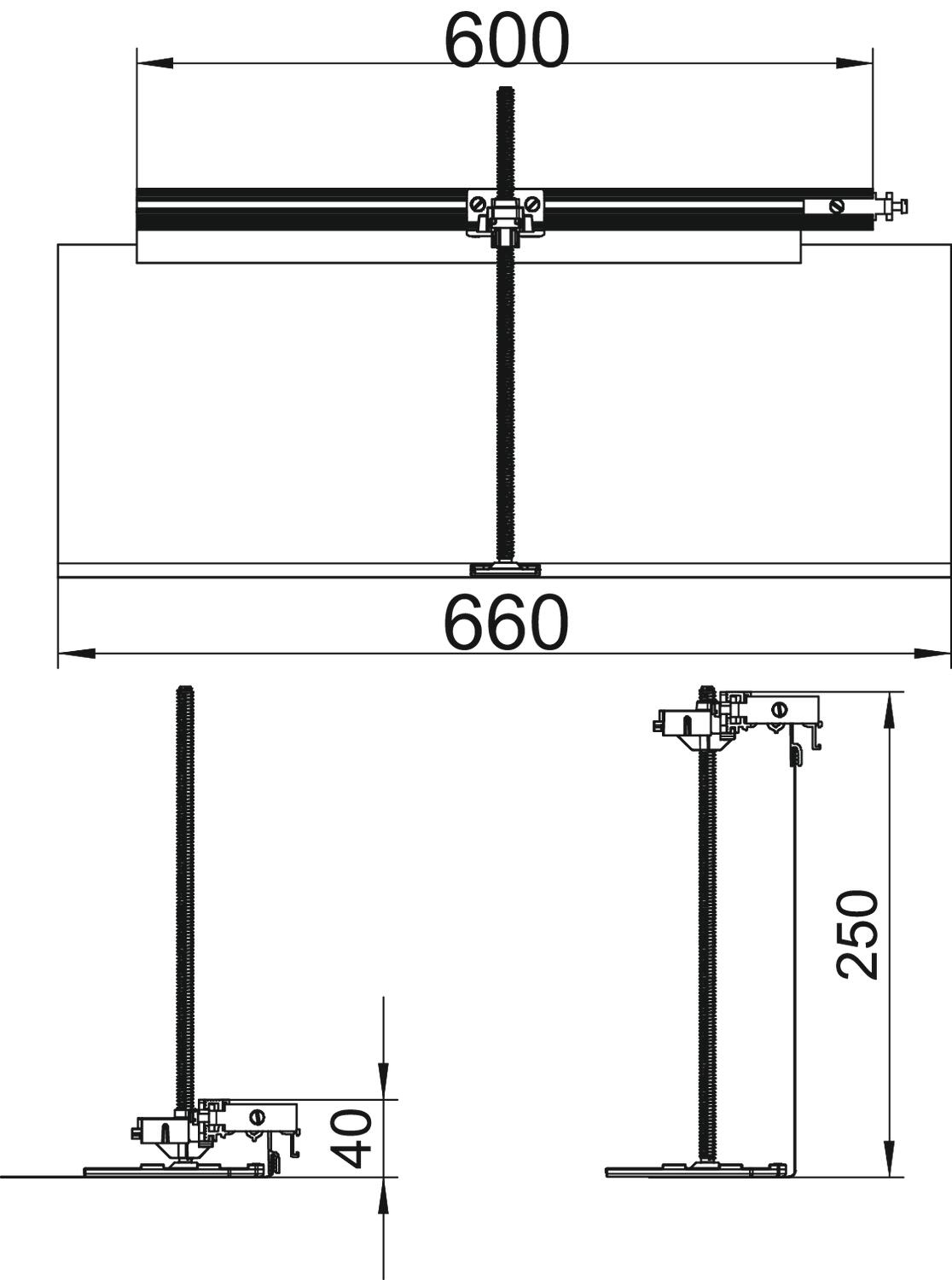

Duct height, min.	40 mm
Floor plate	no
Function	Branch
Height-adjustment range, max.	200 mm
Installation opening for on-floor tank	no
Length	660 mm
Material	Steel
Minimum screed height	40
Mounting opening cover	no
Removable cover	no

Seal installation option	no
Suitable for expansion joint	no
Suitable for flushfloor, open underfloor trunking	no
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Trunking height, max.	240 mm
Width	600 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Width	Item no.	Quantity	SSU
OKA-G20040240FBR	200 mm	7423980	piece	1 piece
OKA-G30040240FBR	300 mm	7423982	piece	1 piece
OKA-G40040240FBR	400 mm	7423984	piece	1 piece
OKA-G50040240FBR	500 mm	7423986	piece	1 piece
OKA-G60040240FBR	600 mm	7423988	piece	1 piece
