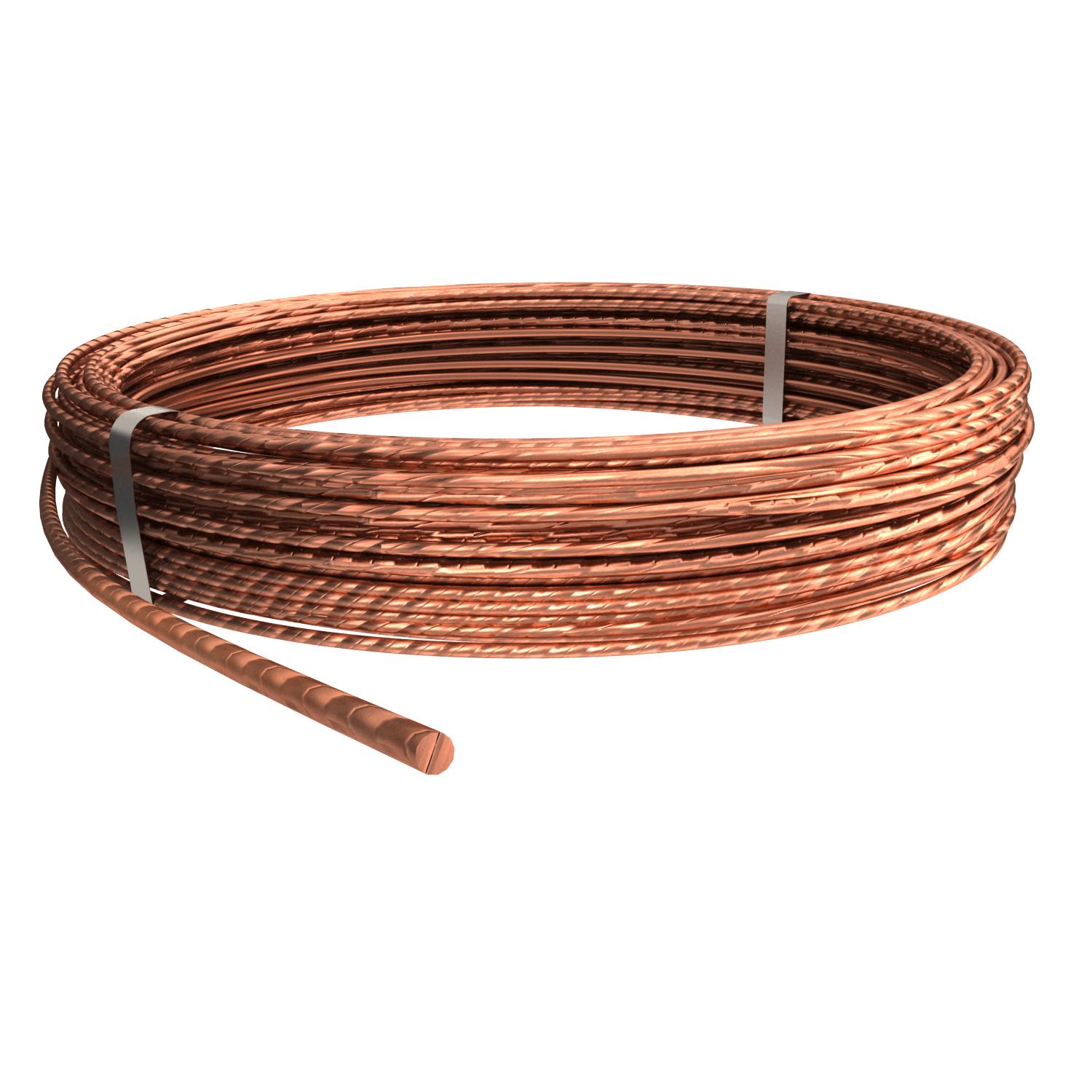

Copper cable Tin-plated

Item no. 5021656 | EAN 4012195938668

Product description
Product description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Suitable for earthing heavy current systems > 1 kV to DIN VDE 0101-2
• Type S 11-CU Sn: Tin-plated version
Technical data

Technical data

Cross-section 70 mm²
Diameter 10,5 mm
Diameter of the individual wires 2,1 mm

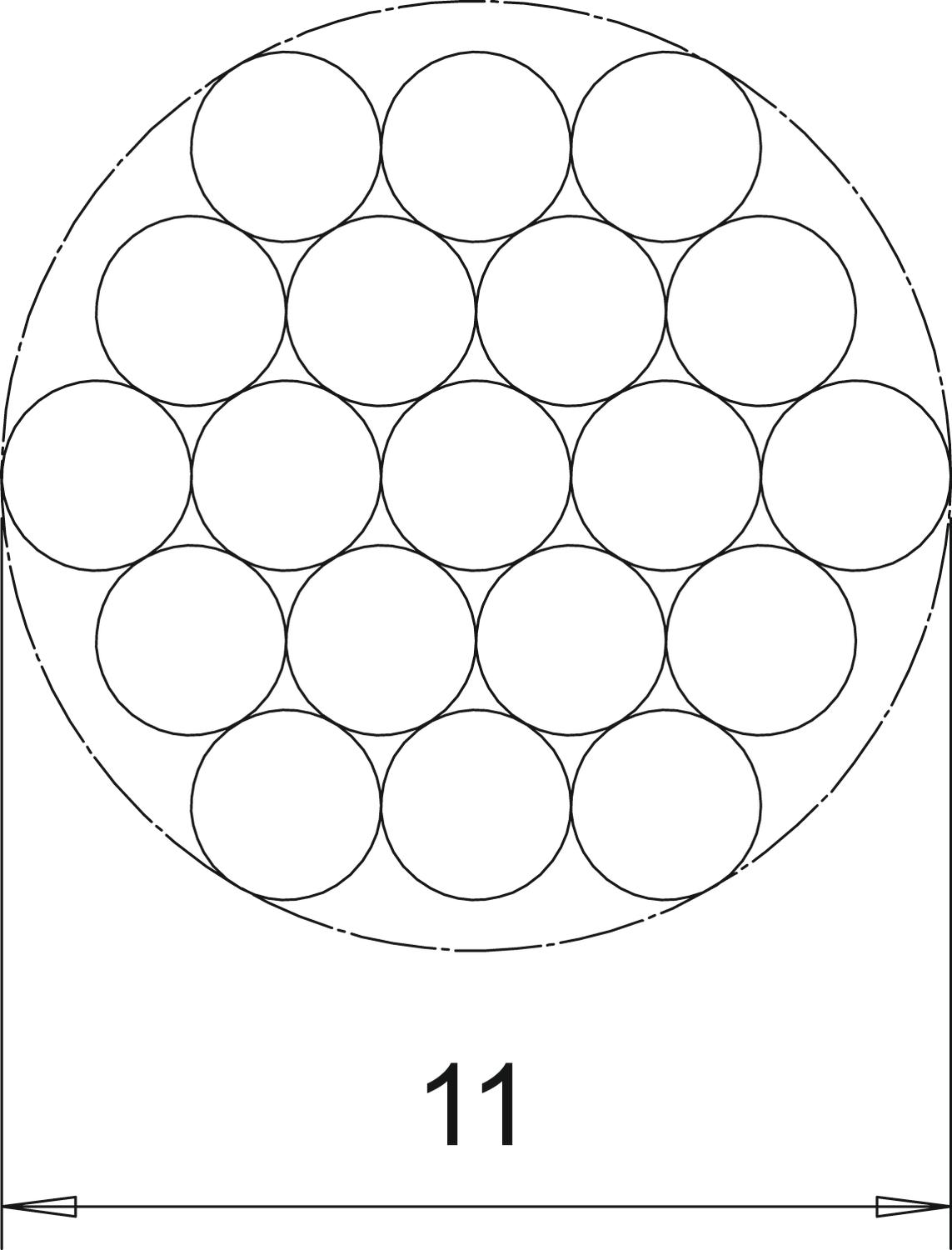

Dimension 19x2,1mm
Dimension D 10,5 mm
Lightning protection application no
Material Copper
Material jacket Without
Nomal ring (approx. m) 50
Normal ring (ca. kg) 30
Number of individual wires 19
Surface Tin-plated
All types

All types

Types Dimension D Normal ring (ca. kg) Cross-section Surface Item no. Quantity SSU
S 9-CU 9 mm 45 50 mm² - 5021652
100 m
S 11-CU 10.5 mm 30 70 mm² - 5021654
50 m
S-11-CU SN 10.5 mm 30 70 mm² Tin-plated 5021656
50 m
