Corner connector G
Item no. 6016715 | EAN 4012196307876
- Product description
-

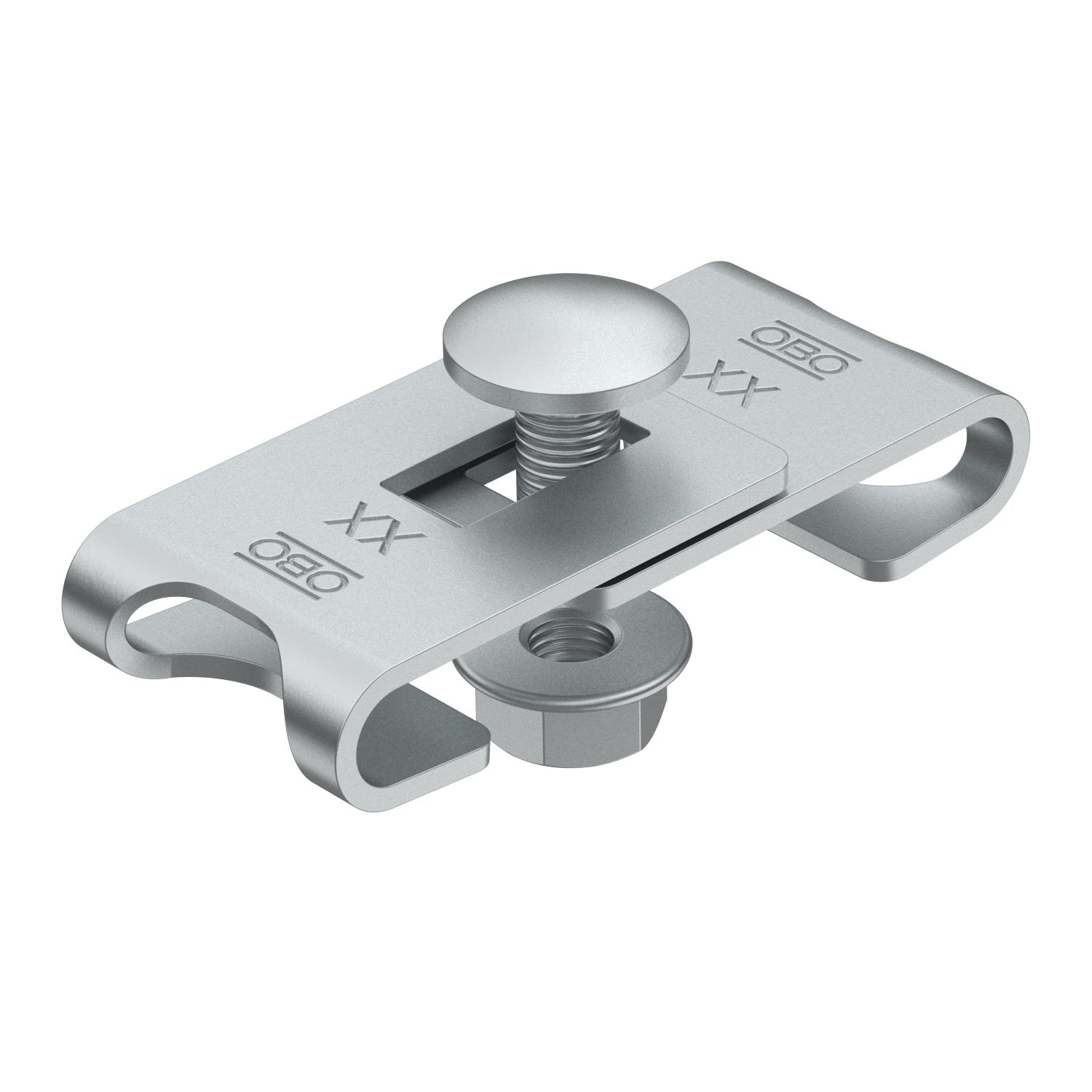

Product descriptionCorner connector for the creation of mesh cable tray bend elements.
-
- Technical data
-
Technical data

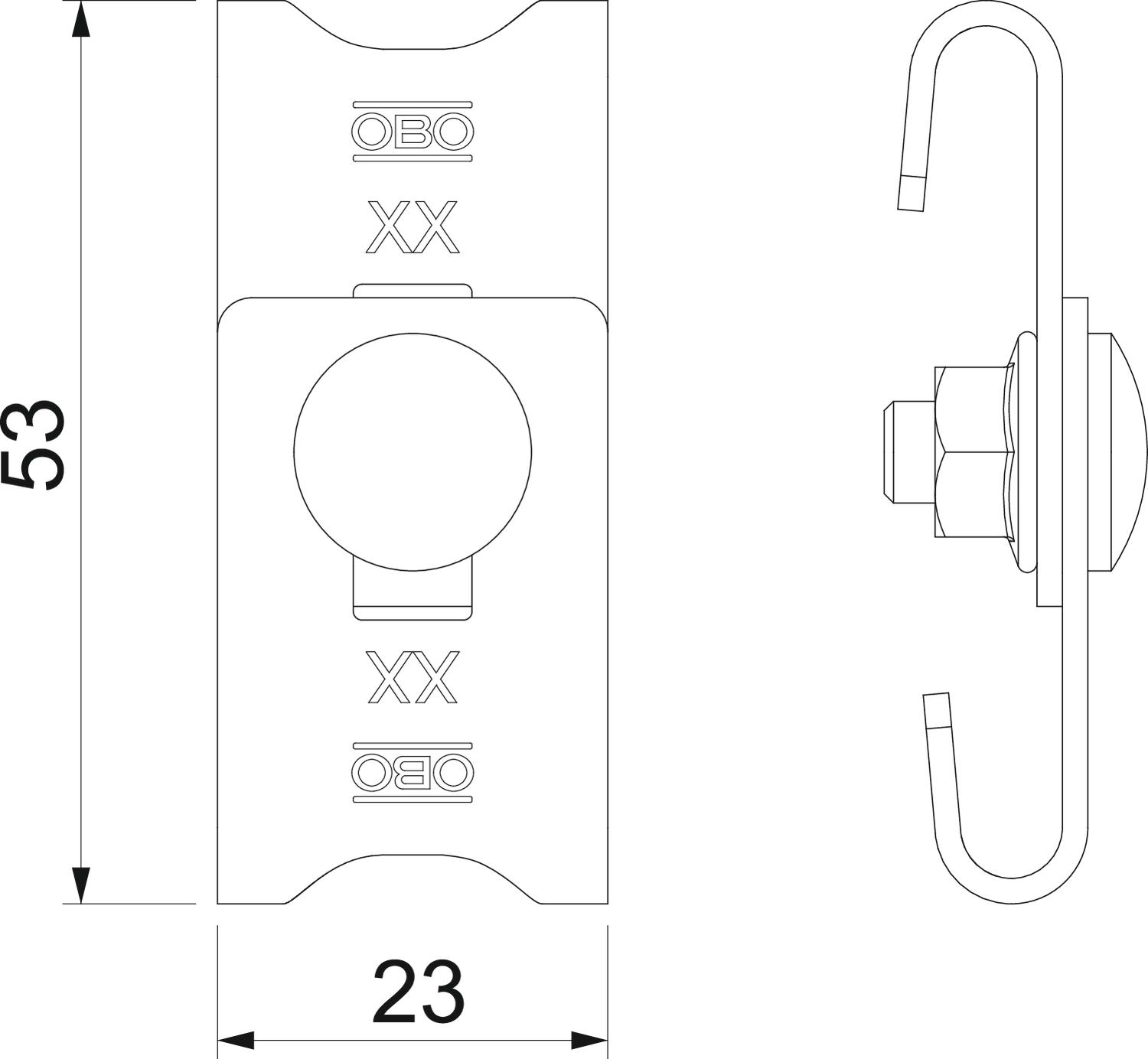

Colour zinc Connection type Screw connector CO₂ Footprint (GWP) Cradle-to-Gate 0,0668 kg CO₂e / 1 Piece Dimension 42-54 x 23 Height 16 mm Height 0,63 in Length 56 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Electrogalvanized Version for Corner connector Width 0,91 in Width 23 mm - All types
- Downloads
-
Data sheet GEV 36 G / 6016715 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity GEV 36 G / 6016715 , 0.10MB , pdfUK Declaration of Conformity GEV 36 G / 6016715 , 0.14MB , pdfREACH Declaration of conformity GEV 36 G / 6016715 , 0.12MB , pdfRoHS Declaration of conformity GEV 36 G / 6016715 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
