Note: This article is discontinued. You can find the current article here: 1198058 / Universal counter-trough, plastic

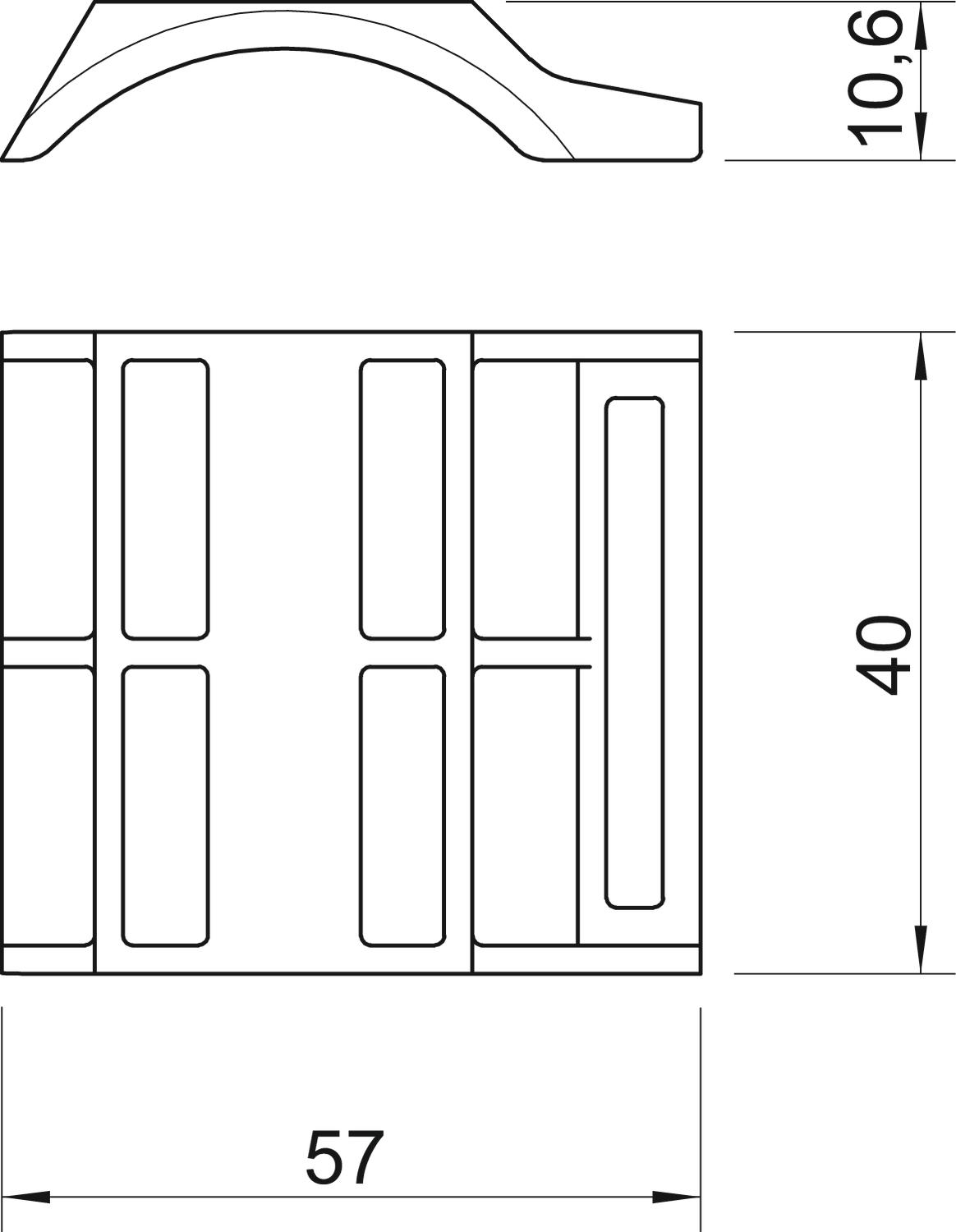

Counter-trough, plastic, universal 57 | 10.6 | 40 | 52 | 58
morepic-1 morepic-2

Counter-trough, plastic, universal

Item no. 1197584 | EAN 4012195083597

40 mm
Product description
Product description
Irrespective of the rail, universally applicable by pushing onto a limb of the BBS clamp clip.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11–12 mm
  • Slot width 16–17 mm
  • Slot width 18 mm
  • Slot width 22 mm
Technical data

Technical data

Clamping range D, max. 58 mm
Clamping range D, min. 52 mm
Colour Light grey; RAL 7035
Counter-trough/clip version Counter sleeve
CO₂ Footprint (GWP) Cradle-to-Gate 0,017 kg CO₂e / 1 Piece
Dimension 52-58mm
Dimension B 57 mm
Dimension H 10,6 mm
Dimension L 40 mm
Halogen-free yes
Material Polypropylene
Suitable for max. cable diameter 58 mm
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058FW 52 LGR 51.5 mm 9.8 mm 40 mm 46 mm 52 mm 1197525
100 piece
2058FW 58 LGR 57 mm 10.6 mm 40 mm 52 mm 58 mm 1197584
100 piece
Downloads

Download

Download

REACH Declaration of conformity 2058FW 58 LGR / 1197584 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2058FW 58 LGR / 1197584 , 0.12MB , pdf
Download

2058FW 58 LGR / 1197584
Download
