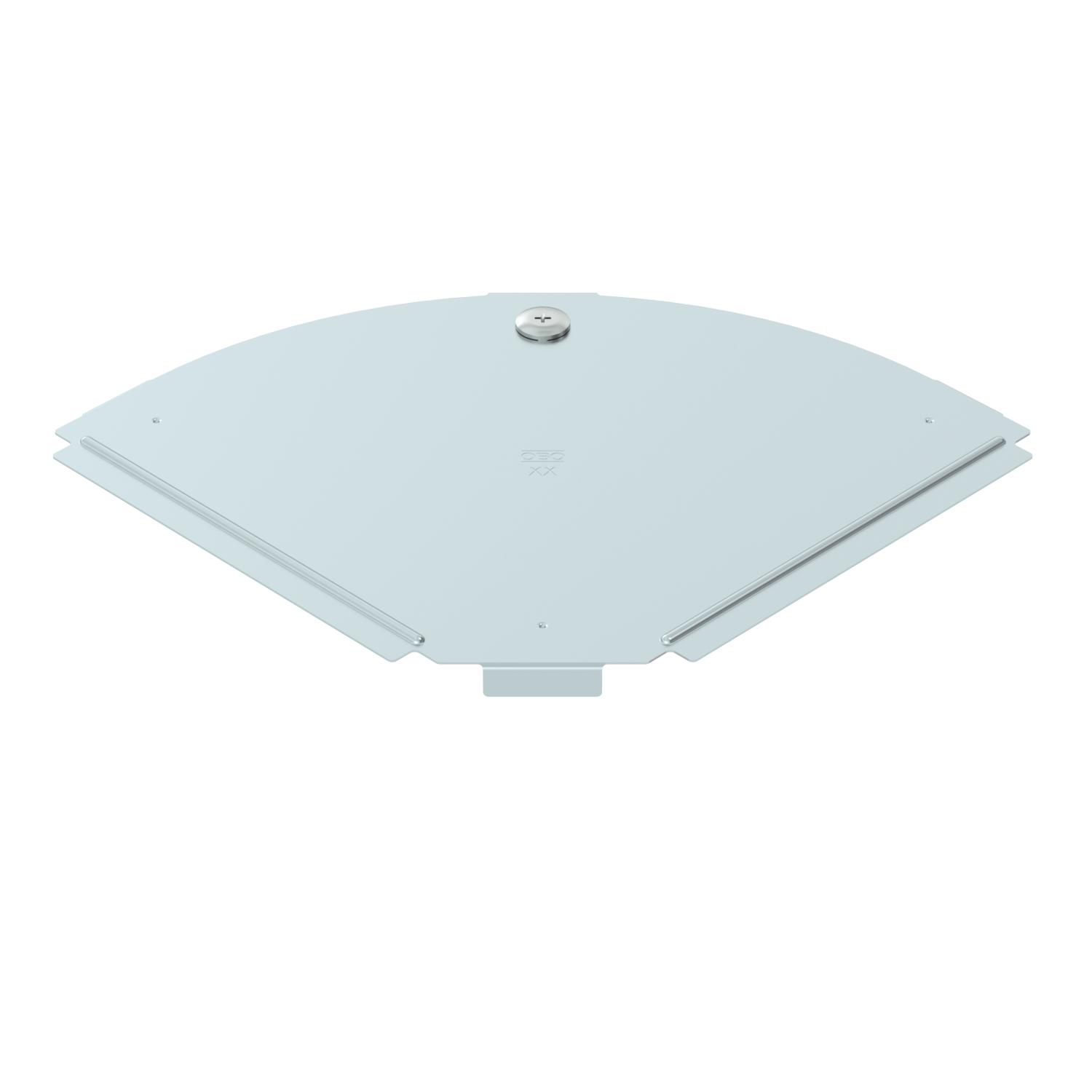

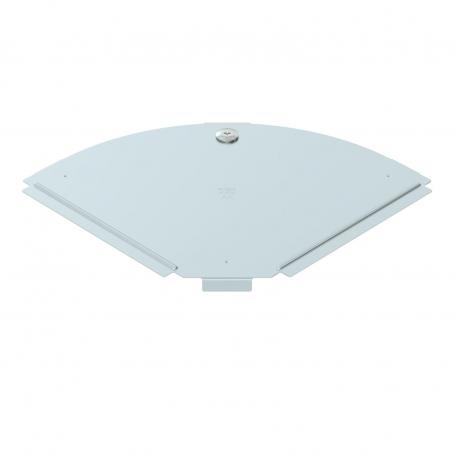

Cover, 90° bend FS

Item no. 6036904 | EAN 4012197405663

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Dimension	B200mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel
Number of turn buckles	1 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD 90 100 FS	100 mm	0.75 mm	6036900	piece	1 piece
RBD 90 150 FS	150 mm	0.75 mm	6036902	piece	1 piece
RBD 90 200 FS	200 mm	0.75 mm	6036904	piece	1 piece
RBD 90 300 FS	300 mm	0.75 mm	6036906	piece	1 piece
RBD 90 400 FS	400 mm	1 mm	6036908	piece	1 piece
RBD 90 500 FS	500 mm	1 mm	6036910	piece	1 piece
RBD 90 600 FS	600 mm	1 mm	6036912	piece	1 piece
