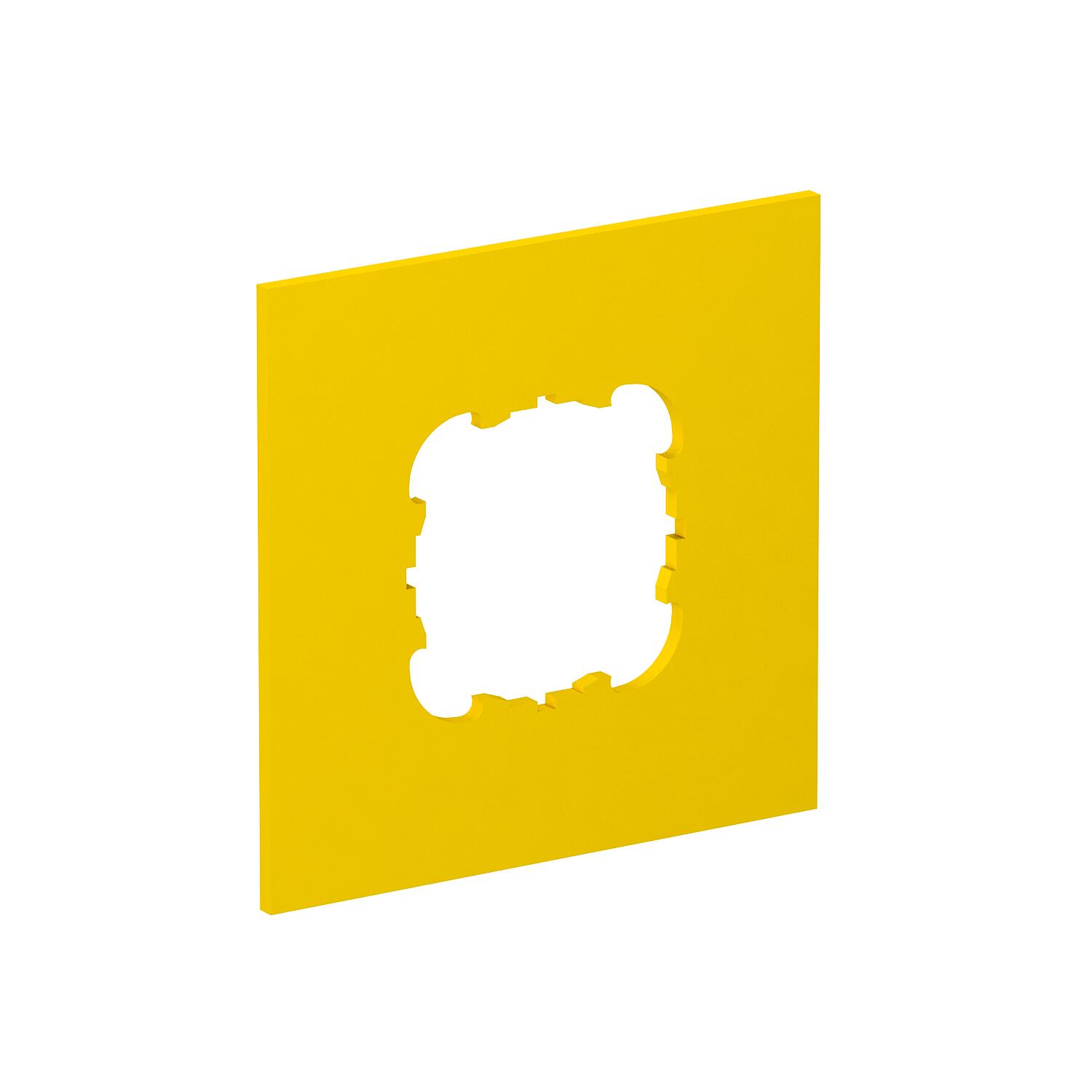

Cover plate VH, for EK and EKR devices

Item no. 6109834 | EAN 4012195125273

Product description

Product description

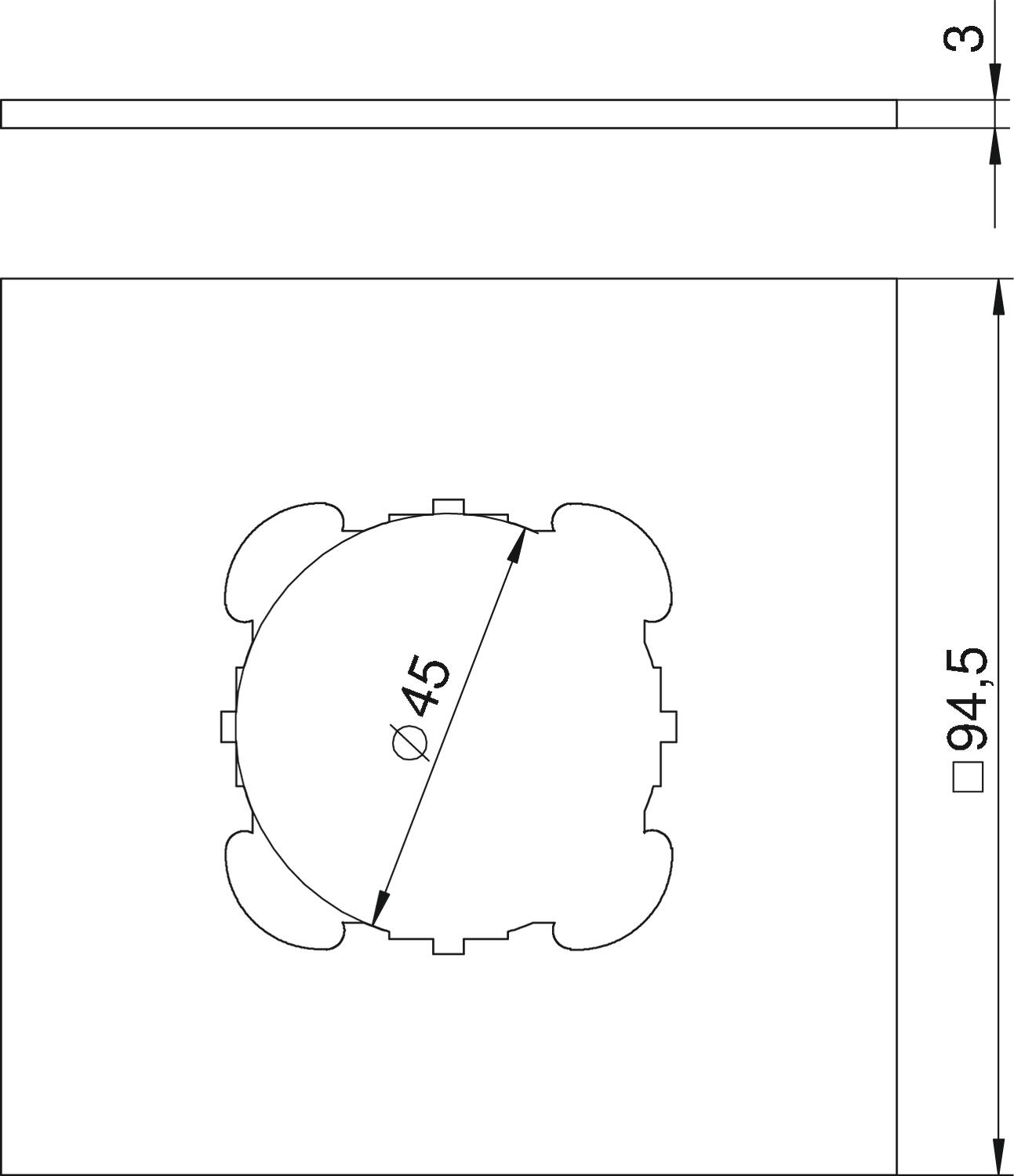

Cover plate with opening Ø 45 mm for the installation of a device with concealed support ring or support clamp.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021
Dimension 95x95mm
Fastening type Screw-on
Halogen-free yes
Height 94,5 mm
Installation technology Miscellaneous
Material Polyamide
Number of units 1
Opening shape Rectangular
Protection rating IP20
Width 94,5 mm
All types

All types

Types Item no. Quantity SSU
VH-P2 6109834
1 piece
Downloads

Download

Download

REACH Declaration of conformity VH-P2 / 6109834 , 0.12MB , pdf
RoHS Declaration of conformity VH-P2 / 6109834 , 0.12MB , pdf

VH-P2 / 6109834
