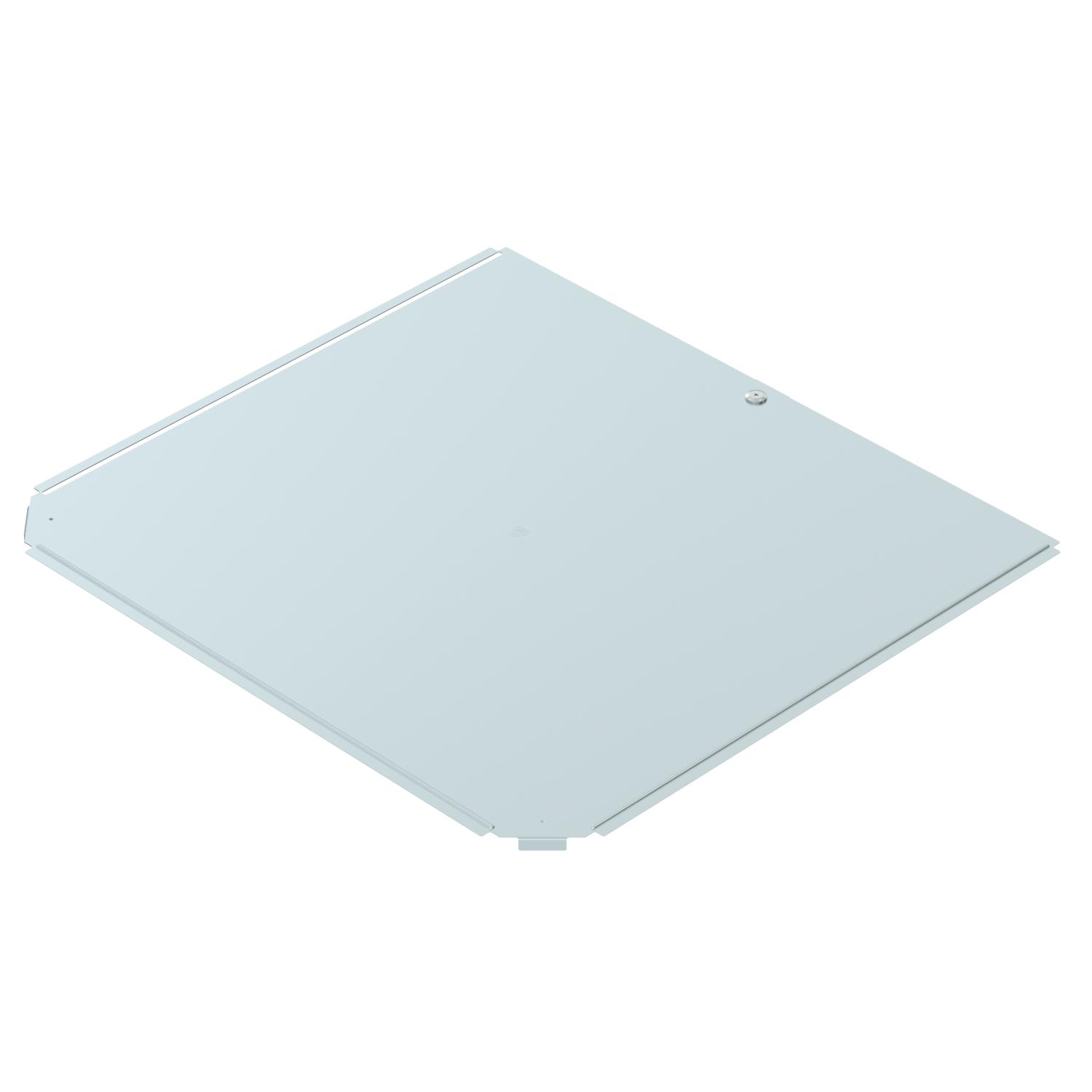

Cover, T piece FS

Item no. 6038612 | EAN 4012197408114

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for T piece fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	zinc
Dimension	B600mm
Dimension B	600 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanized
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RTD 100 FS	100 mm	0.75 mm	6038600	piece	1 piece
RTD 200 FS	200 mm	0.75 mm	6038604	piece	1 piece
RTD 300 FS	300 mm	0.75 mm	6038606	piece	1 piece
RTD 400 FS	400 mm	1 mm	6038608	piece	1 piece
RTD 500 FS	500 mm	1 mm	6038610	piece	1 piece
RTD 600 FS	600 mm	1 mm	6038612	piece	1 piece
