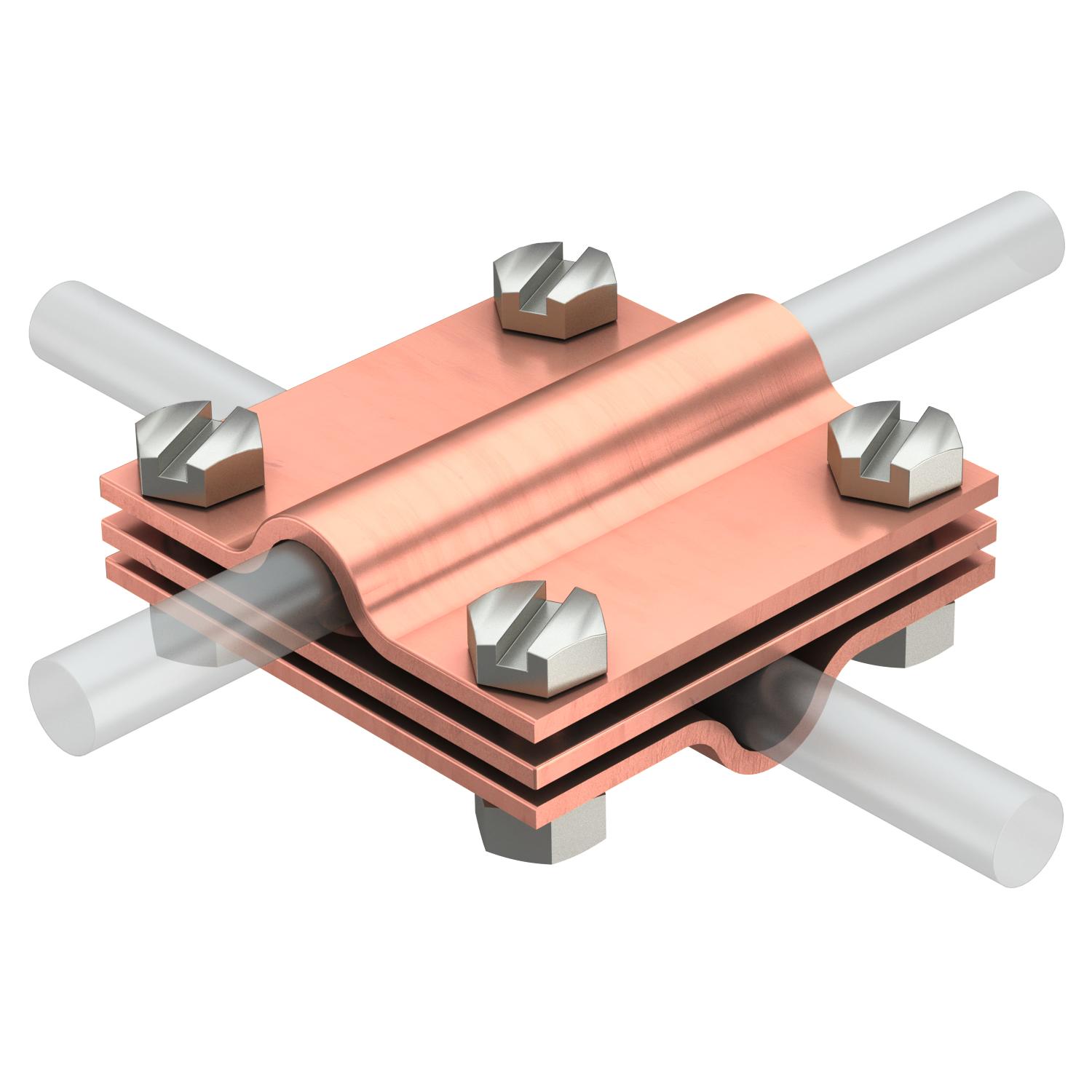

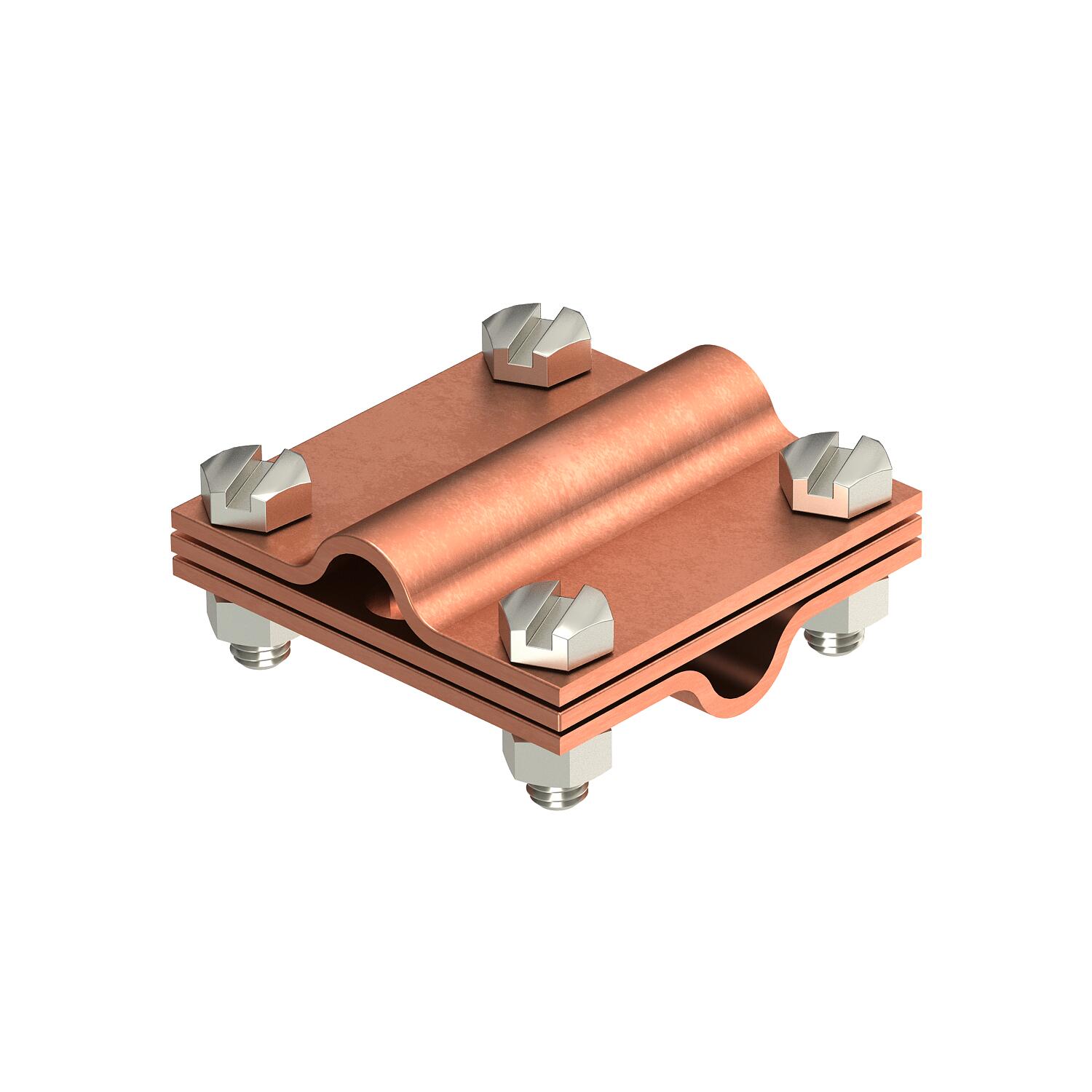

Cross-connector with intermediate plate for Rd 8−10 mm Cu
Item no. 5314135 | EAN 4012195419112
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10
• With adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6 (F)
made of rustproof steel (VA)
-
- Technical data
-
Technical data

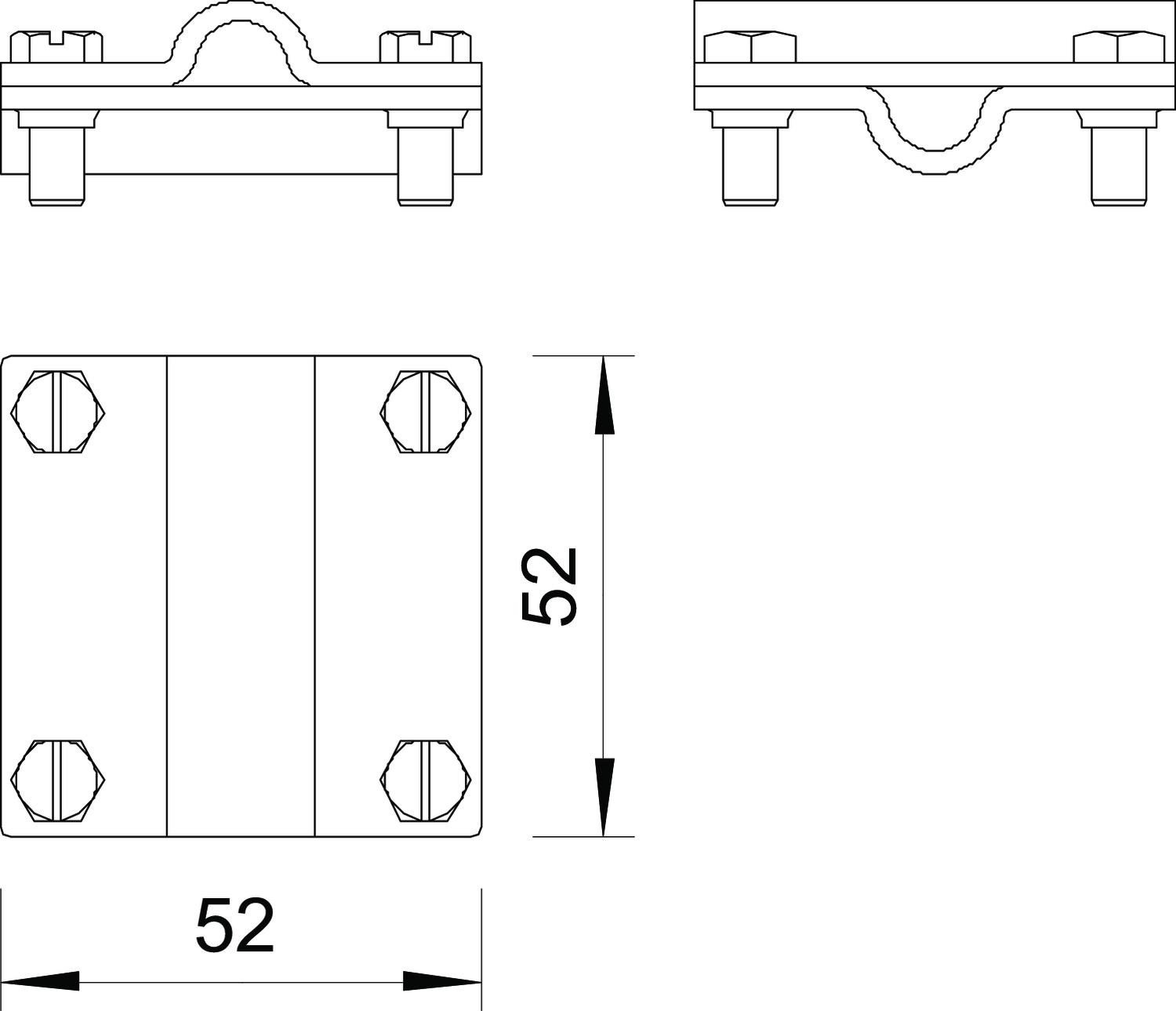

Dimension 8-10mm Dimension A 52 mm Dimension B 52 mm Fit Rd 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Copper Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 254 DIN 8-10 CU / 5314135 , 0.20MB , pdfEU declaration of conformity 254 DIN 8-10 CU / 5314135 , 0.06MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
