Cutting ring Pg 16 | M25

morepic-1

morepic-2

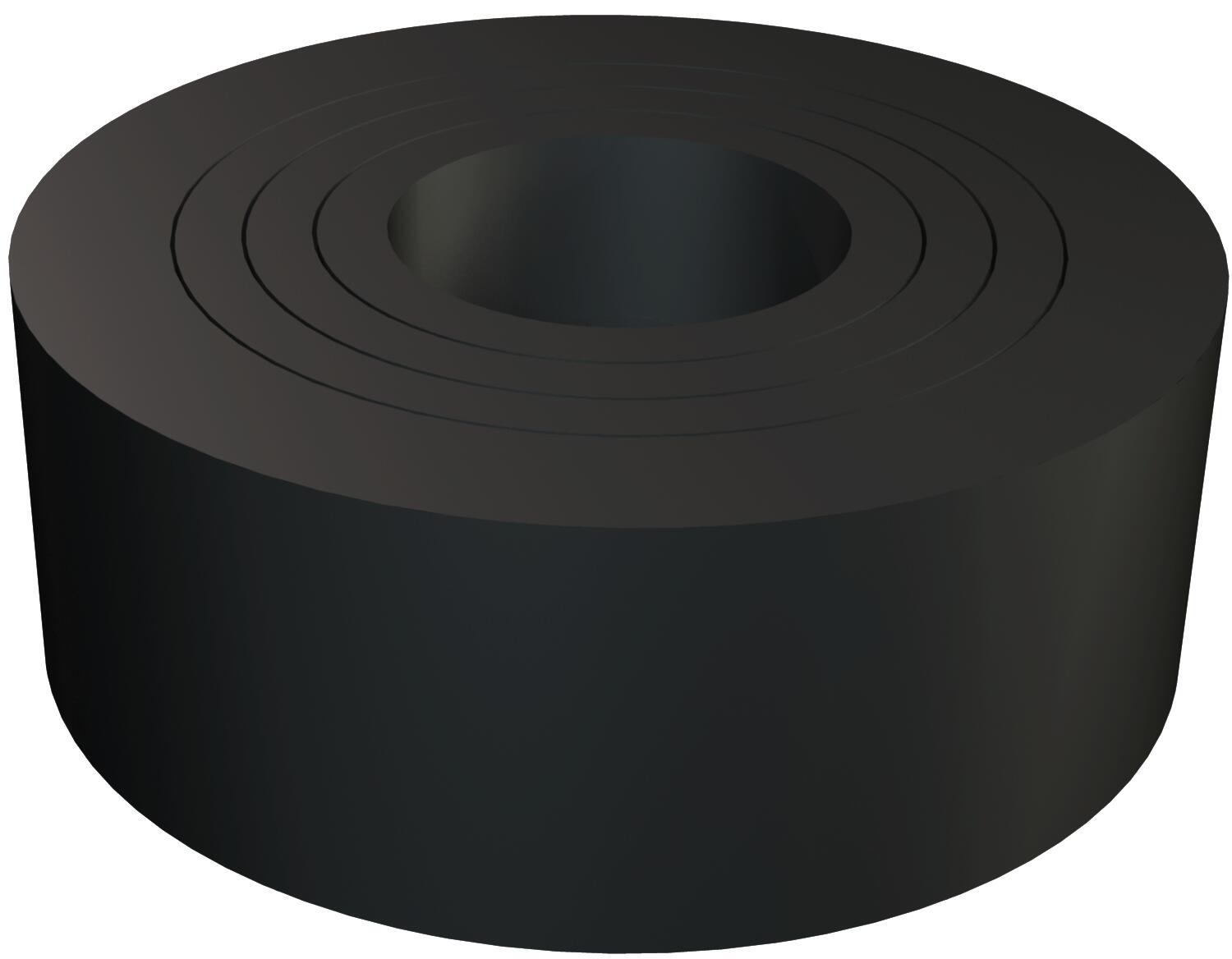

Cutting ring

Item no. 2029162 | EAN 4012195167235

Item no. / Types

Size

Size

Product description

Product description

Rubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.

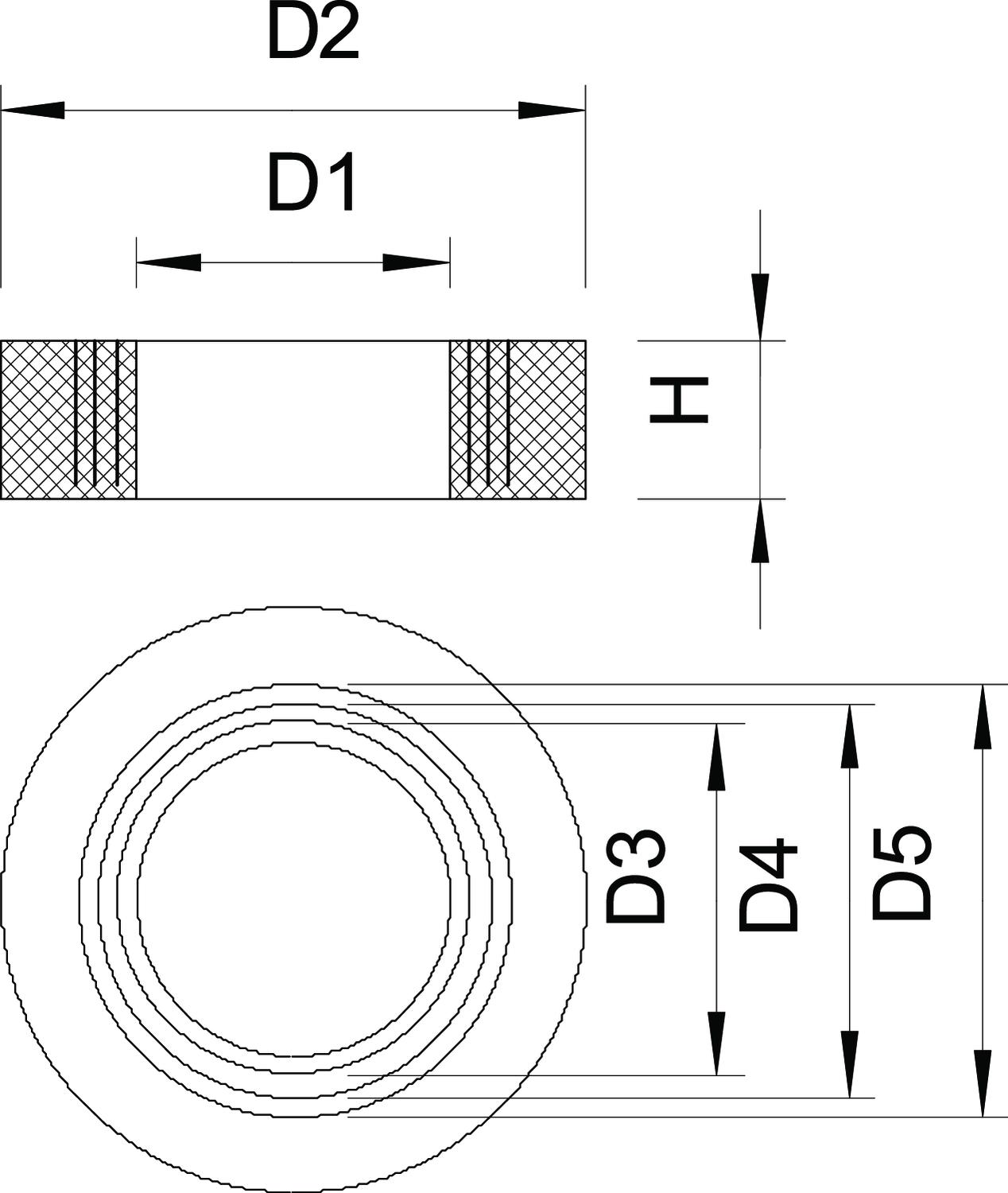

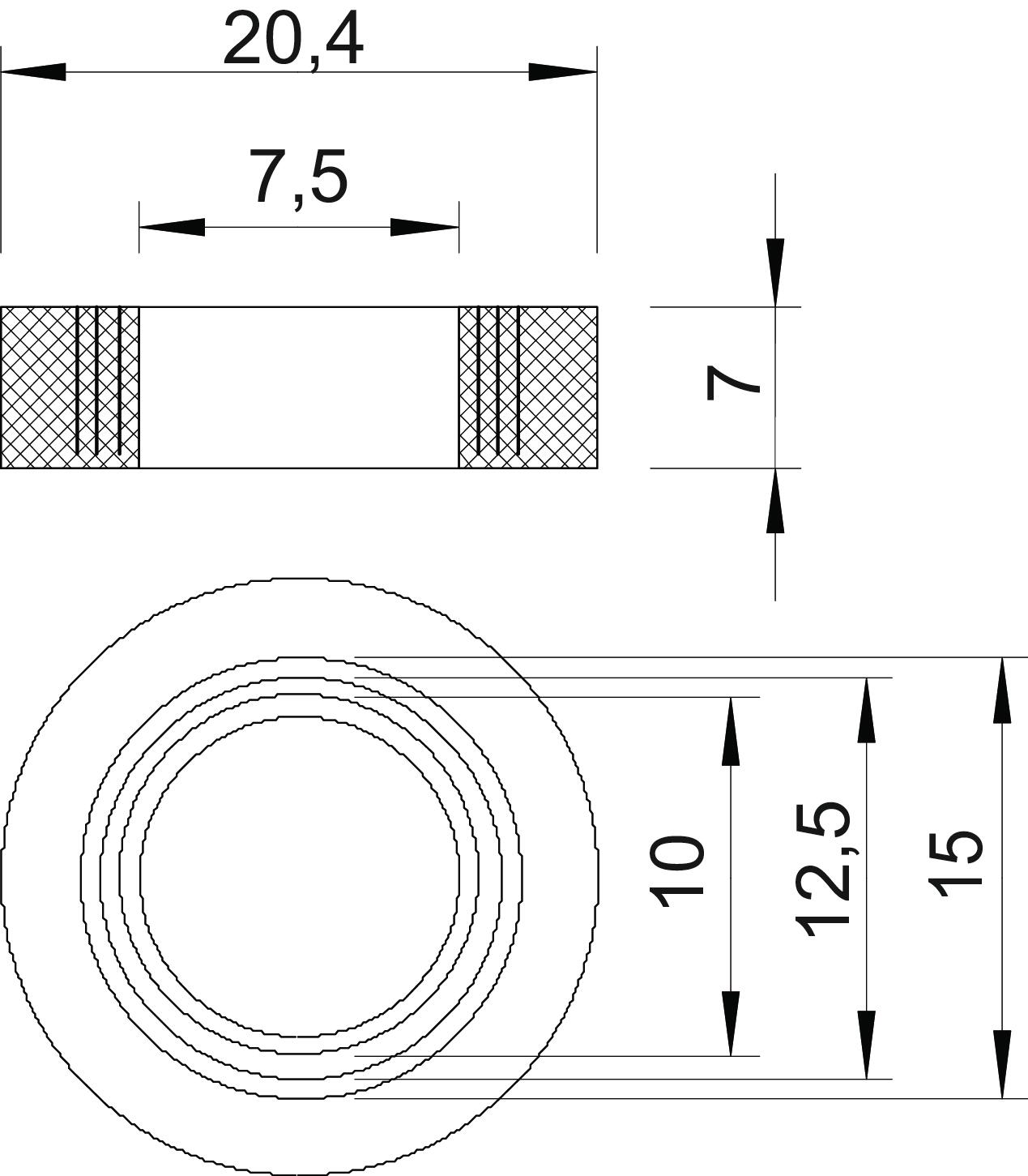

Technical data

Technical data

Colour	Black
Dimension	PG16
Dimension D1	7,5 mm
Dimension D2	20,4 mm
Dimension D3	10 mm
Dimension D4	12,5 mm
Dimension D5	15 mm

Dimension H	7 mm
Material	Rubber mixture
Sealing area D, max.	15 mm
Sealing area D, min.	7,5 mm
Size	M25
Size	Pg 16

All types

All types

Types	Size	Size	Item no.	Quantity	SSU
107 B PG9	Pg 9	M16	2029103	piece	100 piece
107 B PG11	Pg 11	-	2029111	piece	100 piece
107 B PG13.5	Pg 13,5	M20	2029138	piece	100 piece
107 B PG16	Pg 16	M25	2029162	piece	100 piece
107 B PG21	Pg 21	-	2029219	piece	100 piece
107 B PG29	Pg 29	M32	2029294	piece	100 piece
107 B PG36	Pg 36	M40	2029367	piece	50 piece
107 B PG42	Pg 42	M50	2029421	piece	50 piece
107 B PG48	Pg 48	M63	2029480	piece	50 piece
