Cutting ring Pg 21 |
morepic-1 morepic-2

Cutting ring

Item no. 2029219 | EAN 4012195167297

Product description

Product description

Rubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Black
Dimension PG21
Material Rubber mixture
Sealing area D, max. 19 mm
Sealing area D, min. 10 mm
Size Pg 21

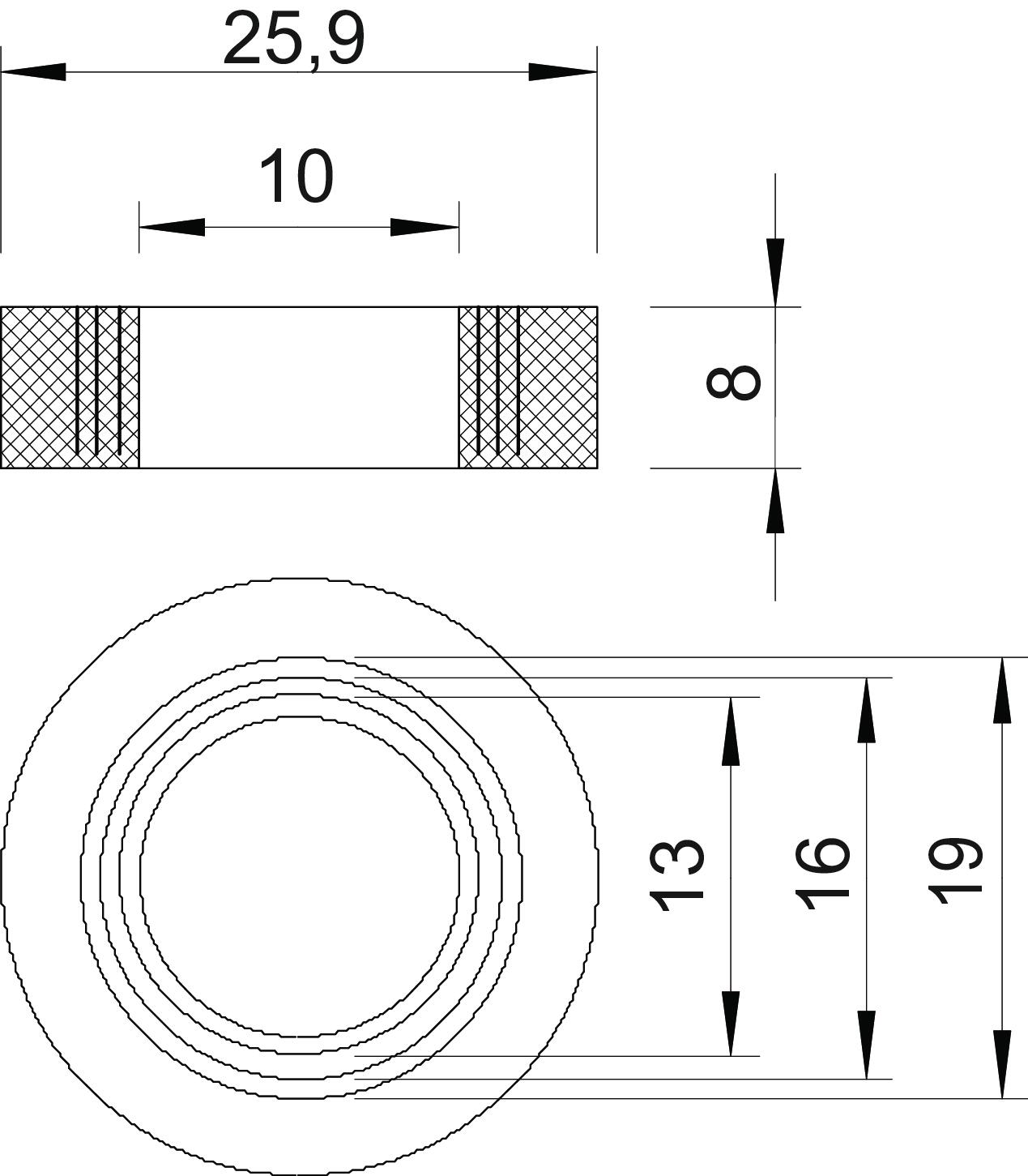

Dimensions

Dimension D1 10 mm
Dimension D2 25,9 mm
Dimension D3 13 mm
Dimension D4 16 mm
Dimension D5 19 mm
Dimension H 8 mm
All types

All types

Types Size Size Item no. Quantity SSU
107 B PG9 Pg 9 M16 2029103
100 piece
107 B PG11 Pg 11 - 2029111
100 piece
107 B PG13.5 Pg 13,5 M20 2029138
100 piece
107 B PG16 Pg 16 M25 2029162
100 piece
107 B PG21 Pg 21 - 2029219
100 piece
107 B PG29 Pg 29 M32 2029294
100 piece
107 B PG36 Pg 36 M40 2029367
50 piece
107 B PG42 Pg 42 M50 2029421
50 piece
107 B PG48 Pg 48 M63 2029480
50 piece
Downloads

Download

Download

Declaration of conformity 107 B PG21 / 2029219 , 0.05MB , pdf
Download
REACH Declaration of conformity 107 B PG21 / 2029219 , 0.12MB , pdf
Download
RoHS Declaration of conformity 107 B PG21 / 2029219 , 0.12MB , pdf
Download

107 B PG21 / 2029219
Download
