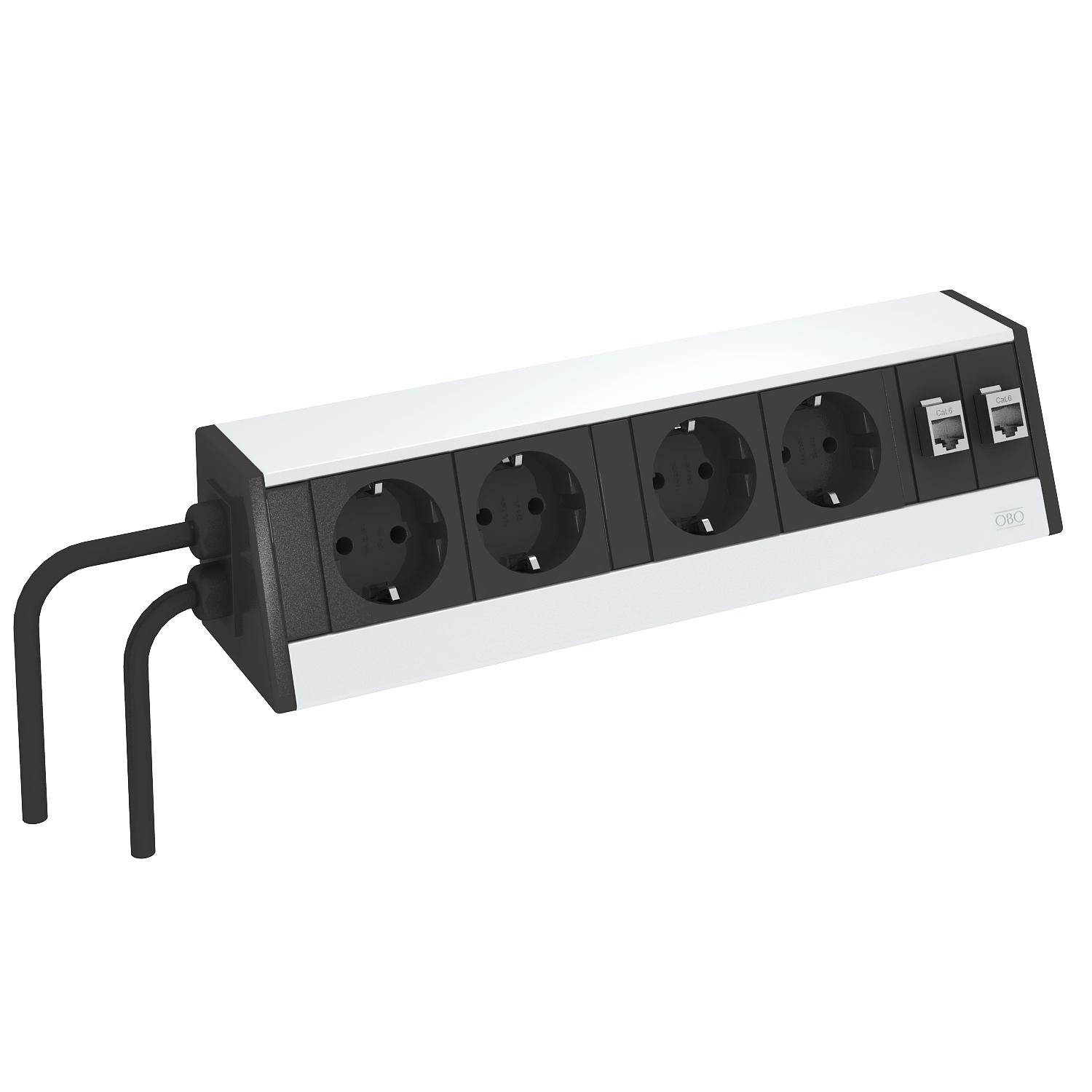

Deskbox DB, freely placeable, 2+2 sockets, 2x RJ45 Cat. 6

Item no. 6116918 | EAN 4012195875239

6116918 / DB-0A3 D22SR2K
Housing, silver anodised
Product description

Product description

Deskbox with connection cable, cable outlet on the left and right housing cover, freely placeable using non-slip support points.


Equipment:

- Two black protection contact sockets in 0° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7, cable exit on the left housing cover.

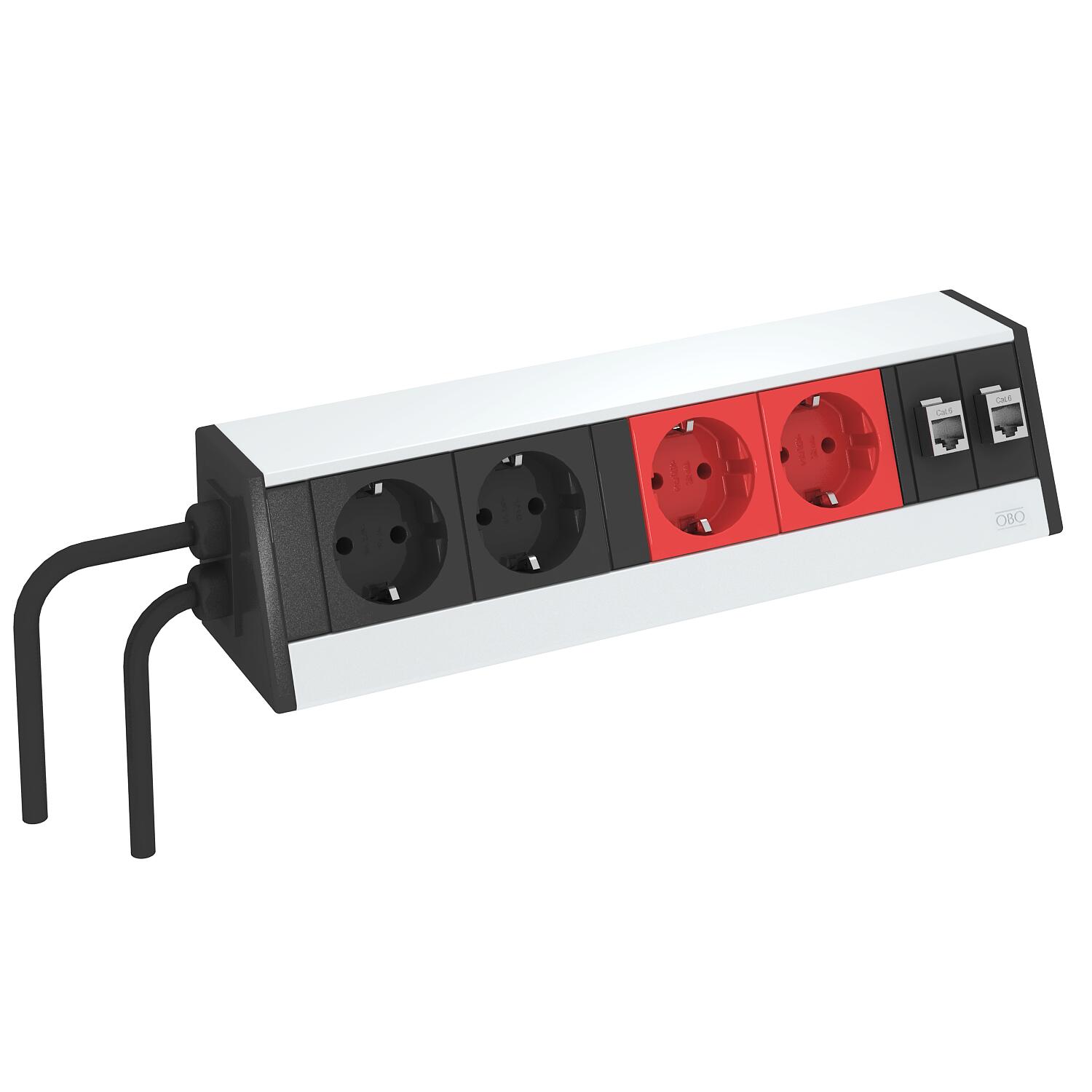

- Two red protection contact sockets in 0° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7, cable exit on the left housing cover.

- Two data technology couplings RJ45 to RJ45, 1:1 switched, Cat. 6 shielded, cable exit on the right housing cover.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
Technical data

Technical data

Colour Aluminium
Extendable no
Foldable no

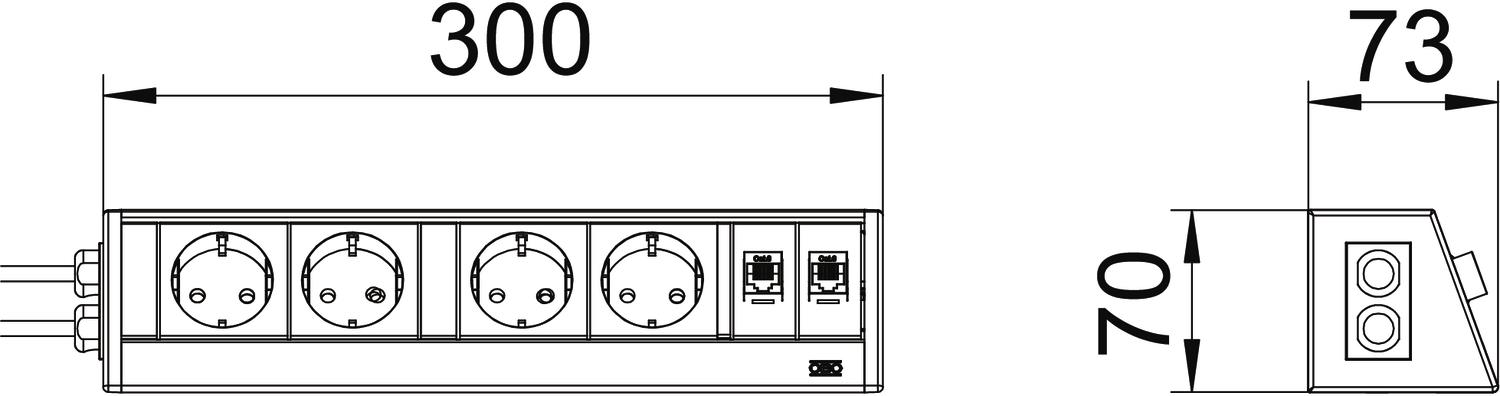

Height 70 mm
Length 300 mm
Length of the supply cable 3 m
Material Aluminium
Number of CAT 6 connections 2
Number of SCHUKO sockets 4
Surge protection no
Version for Housing, silver anodised
Width 73 mm
All types

All types

Types Version for Item no. Quantity SSU
DB-0A3 D22SR2K Housing, silver anodised 6116918
1 piece
