Deskbox DBK, 2 sockets, HDMI, 2x RJ45 Cat. 6

Item no. 6116810 | EAN 4012196486014

Product description

Product description

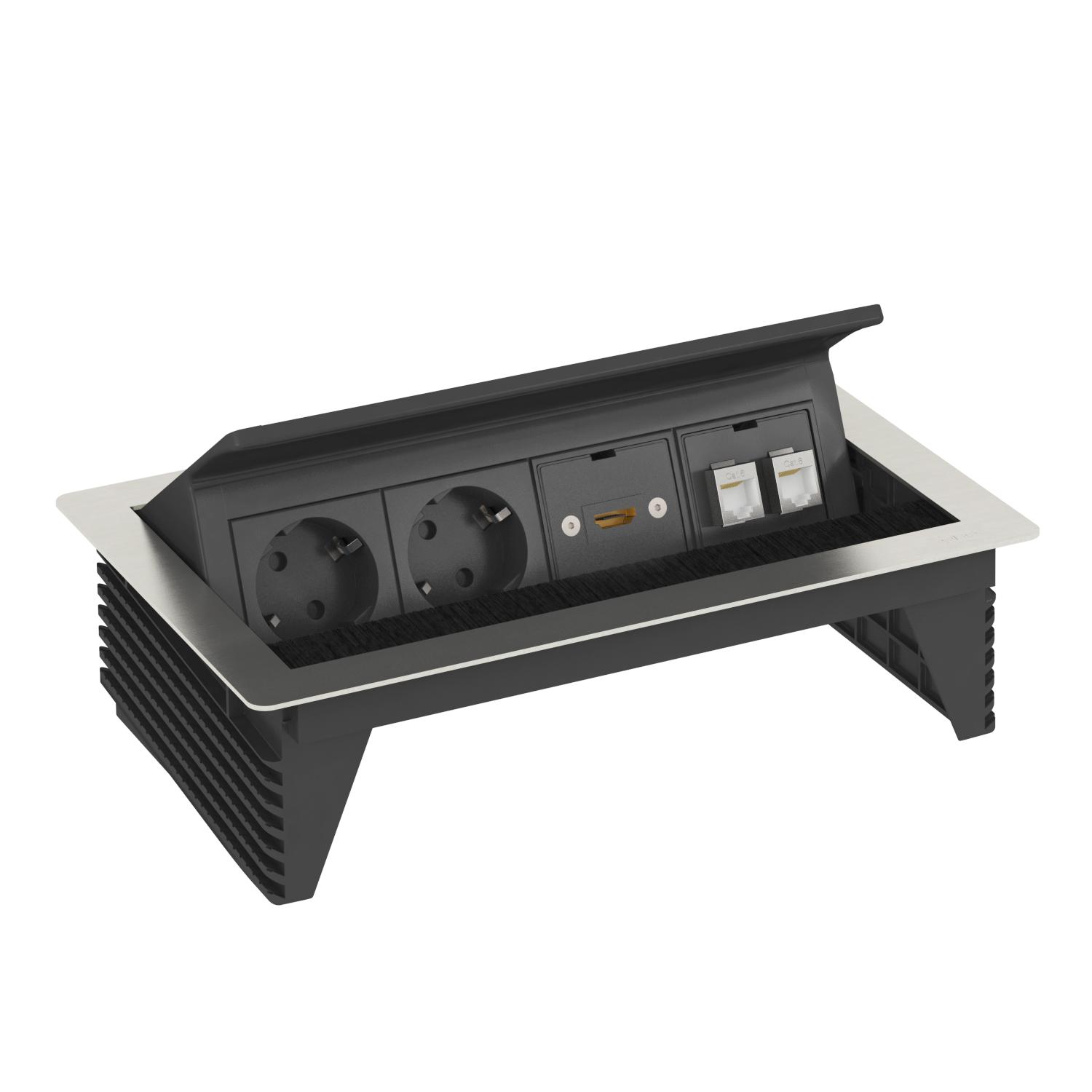

Foldable Deskbox with connection cable for fixed installation in a tabletop, housing made of brushed stainless steel with brush bar as cable outlet. Mounting is done via an installation opening 245 x 157 mm in the tabletop.


Equipped with:

- Two black protective contact sockets of 60° plug-in direction, including 3.0 m power cable with angular connector CEE 7/7.

- One HDMI 1.3 socket, including 3.0 m connection cable with plug.

- Two data technology couplings RJ45 on RJ45, 1:1, Cat. 6 shielded.


Note: Can be used in tabletops of up to 50 mm thickness.


The ready-for-connection type DBK Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
Technical data

Technical data

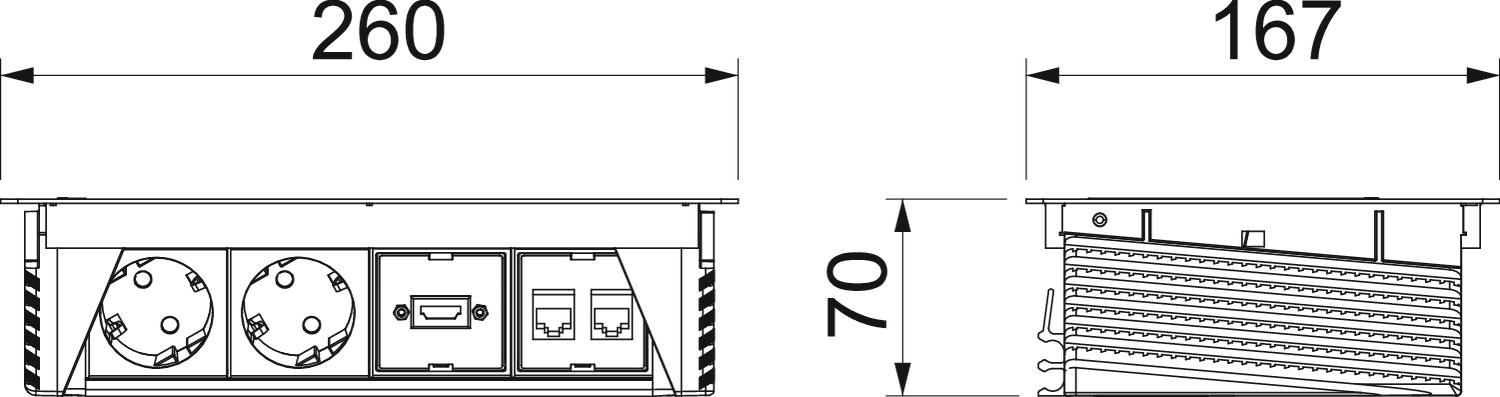

Dimension 260x167x68
Extendable no
Foldable yes
Installation depth 68 mm
Length 260 mm
Length of the supply cable 3 m
Material Stainless steel
Number of CAT 6 connections 2
Number of HDMI connections 1
Number of SCHUKO sockets 2
Surge protection no
Width 167 mm
All types

All types

Types Item no. Quantity SSU
DBK2-M4H D2S2K 6116810
1 piece
Downloads

Download

No invitation to tender text is available for this product.
