Distribution box, 12 division units, with terminal strip, polystyrene 286 | 202 | 126 | Connector

Distribution box, 12 division units, with terminal strip, polystyrene

Item no. 2008812 | EAN 4012196465699

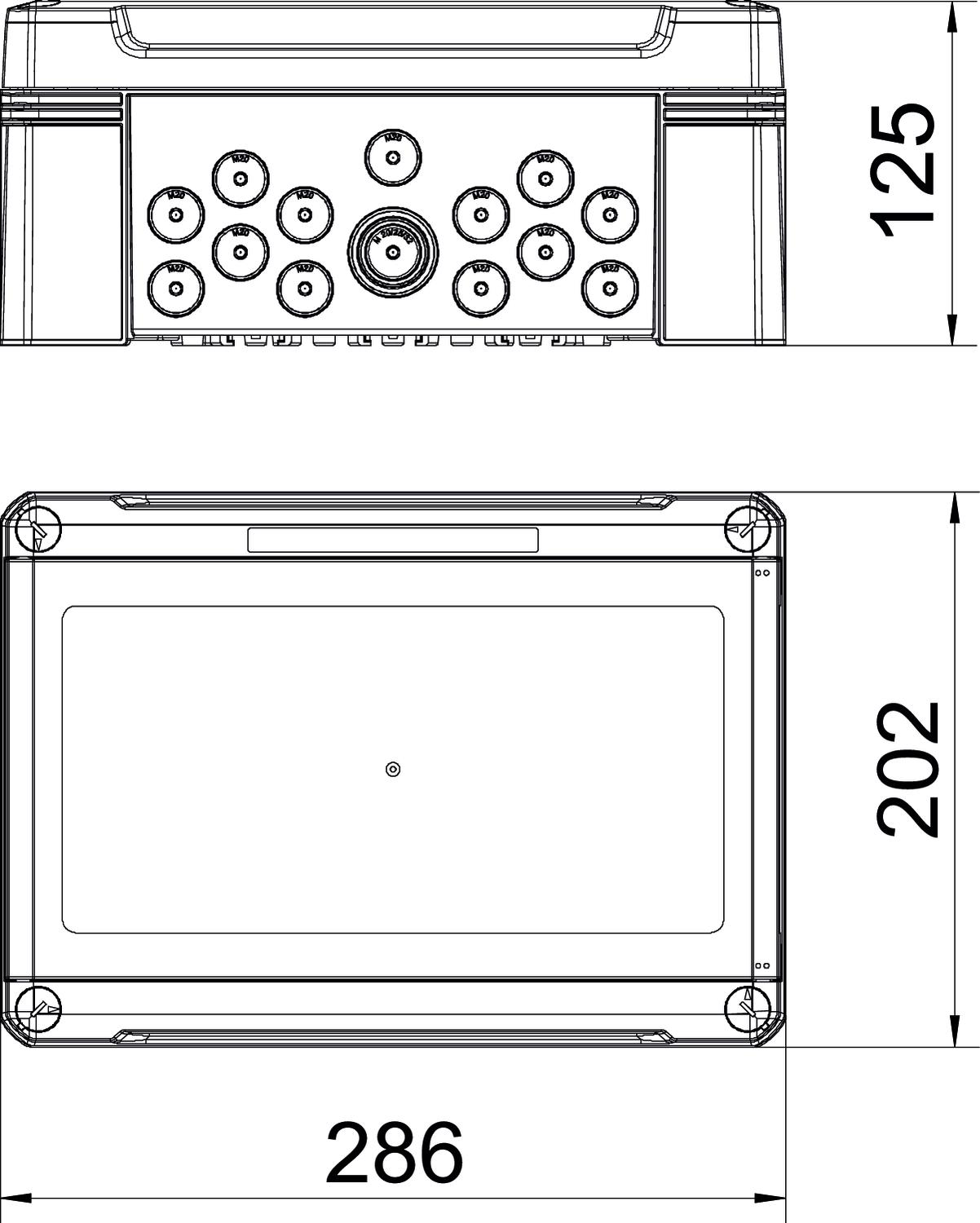

Item no. / Types	2008812 / SDB 12 PS

Length	286 mm

Width	202 mm

Height	126 mm

Terminals	Connector

Product description

Product description

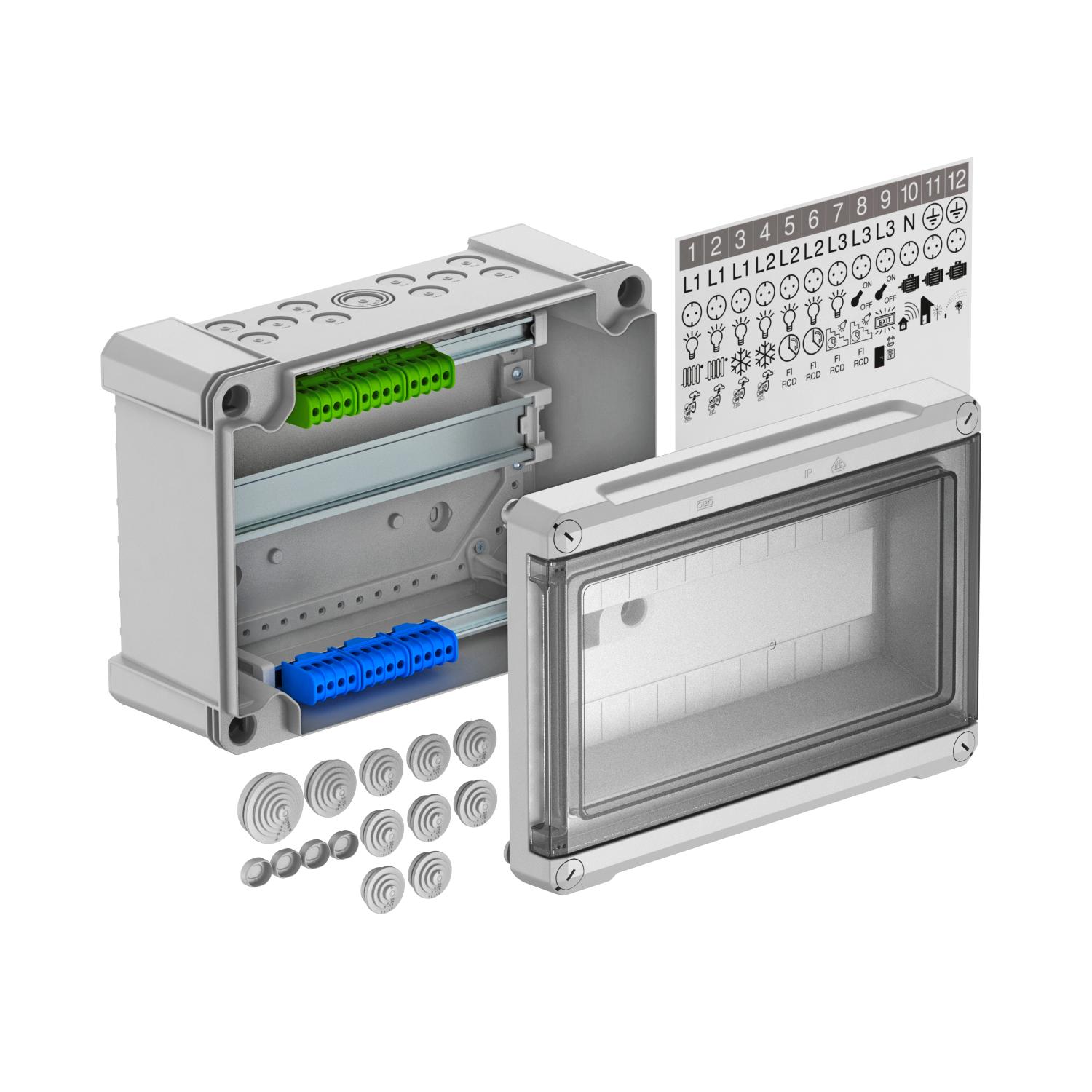

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 12 division units

- Terminal strip set consisting of: Three each of: PE/N terminals with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set

- Identification plates for connected consumers

- 8 elastic cable entries Ø20 mm for cable diameters of 0–17 mm

- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm

- 1 elastic cable entry Ø32 mm for cable diameters of 0–28 mm

- 10 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 25.1 W

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover
Dimension	286x202x125
DIN rail	yes
EMC version	no
Extension option	yes
Height	126 mm
Length	286 mm
Material	Polystyrene
Mounting type, consumer units	Structure
Nominal current	63 A

Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK07.
Terminals	Connector
Transparent lid	yes
Version, small distributor cover	With cut-out
Width	202 mm
Width in divisional units	12
With lock	no
With mounting plate	no
