Distribution box, 3 division units, empty, polystyrene 191 | 151 | 126 |

Distribution box, 3 division units, empty, polystyrene

Item no. 2008820 | EAN 4012196465705

Item no. / Types	2008820 / SDB 03L PS

Length	191 mm

Width	151 mm

Height	126 mm

Product description

Product description

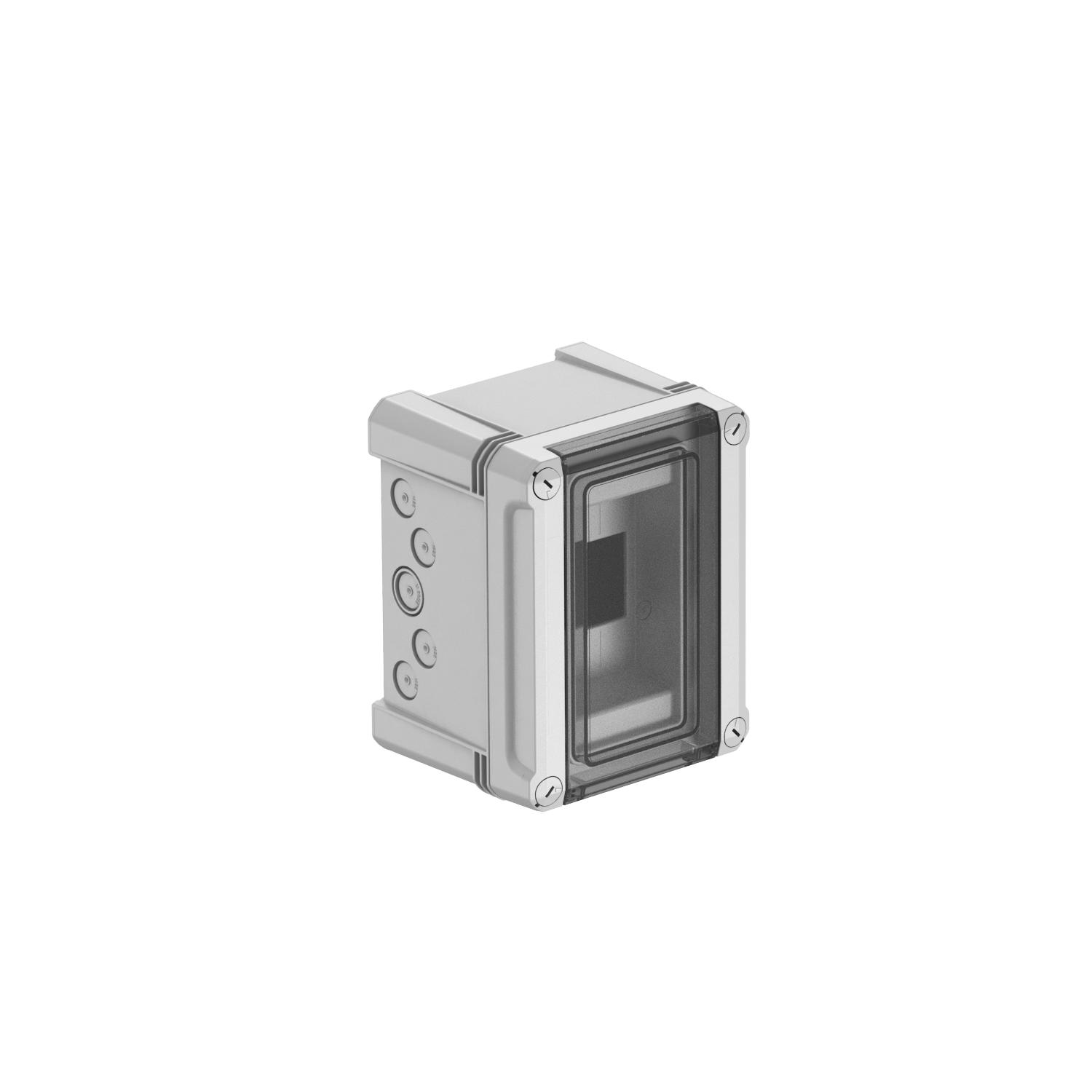

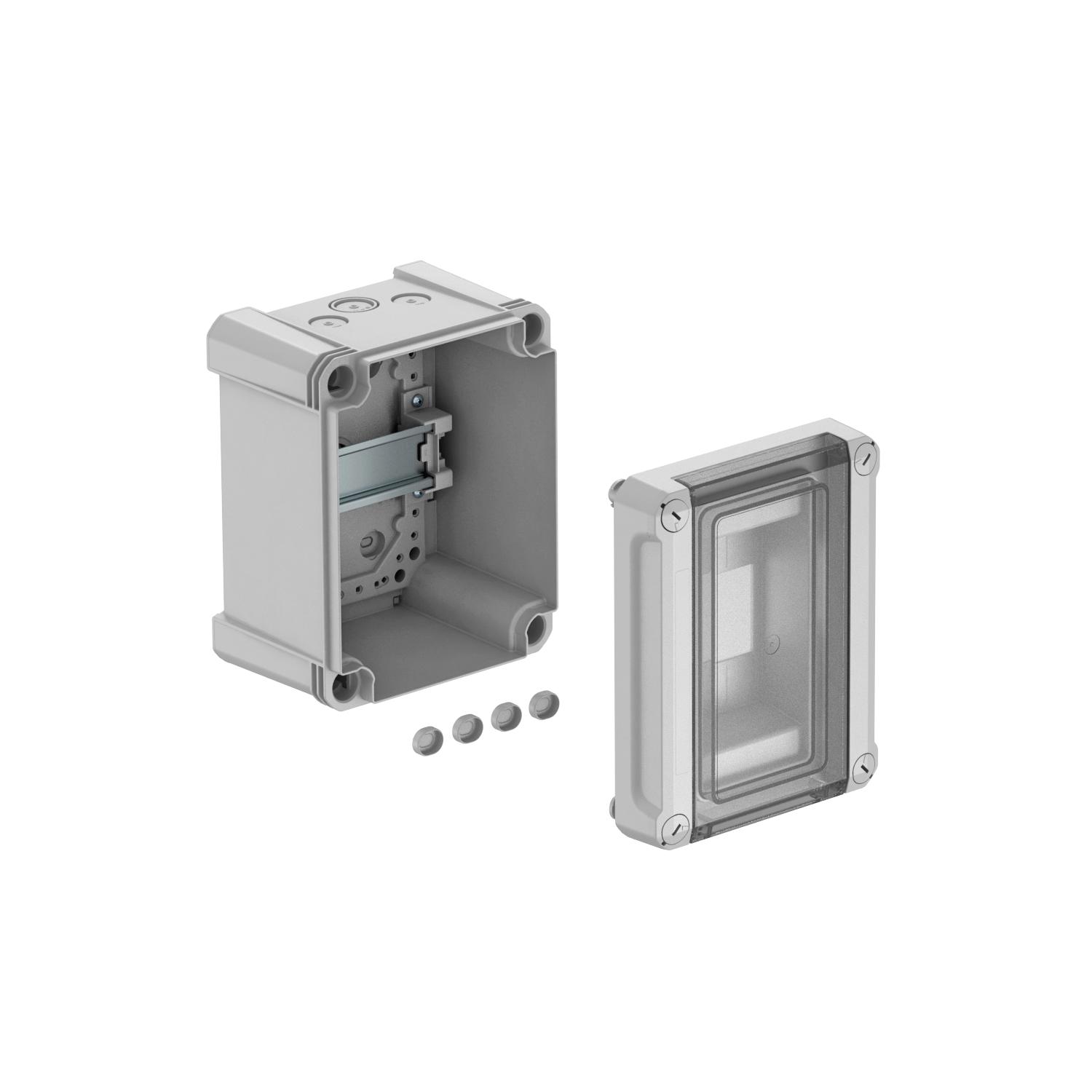

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 3 division units

- 2 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
The PS small distributors are suitable for mounting in interiors and in protected exteriors.
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover
CO₂ Footprint (GWP) Cradle-to-Gate	2,657 kg CO₂e / 1 Piece

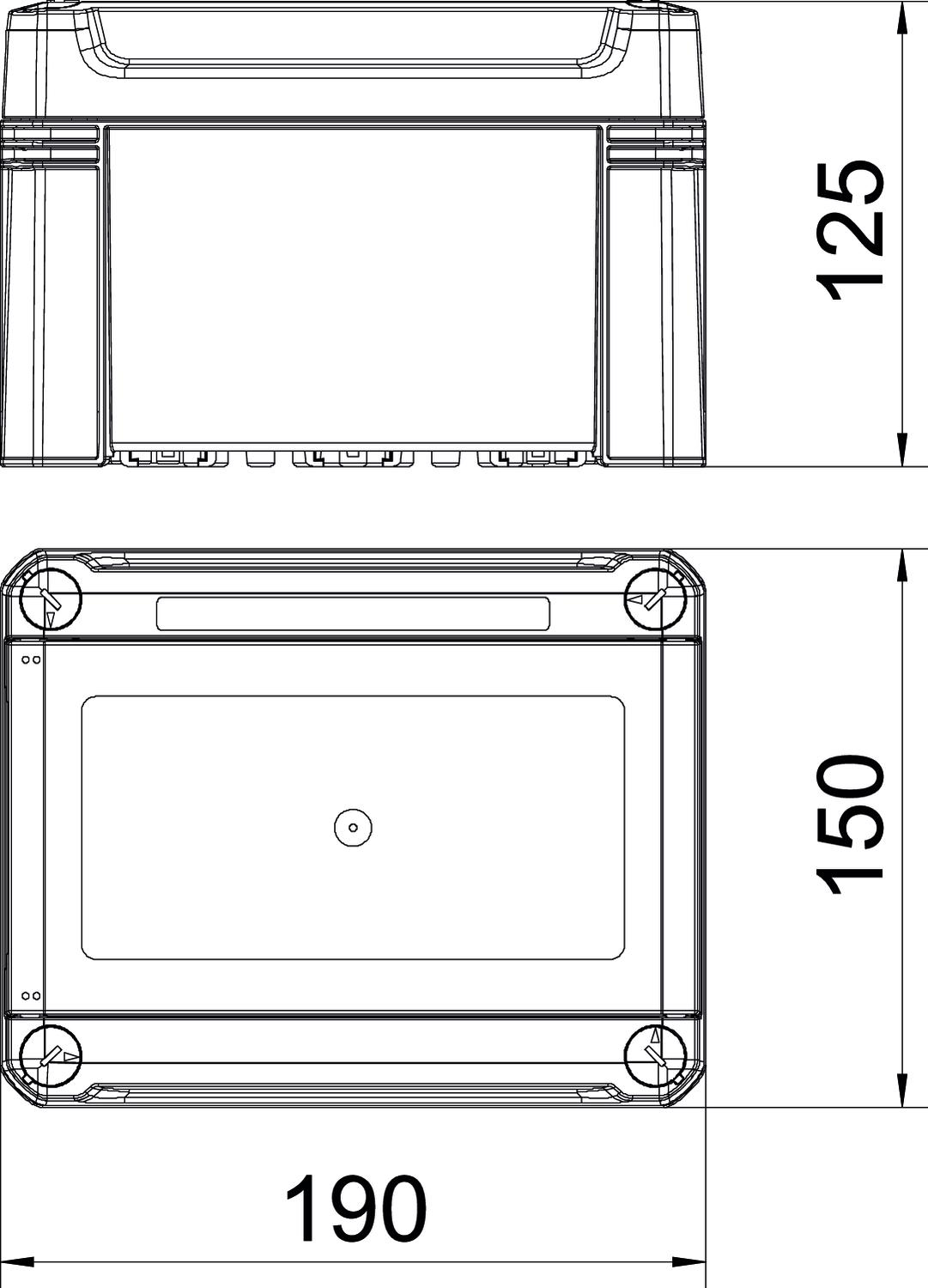

Dimension	150x190x125
DIN rail	yes
EMC version	no
Extension option	yes
Height	126 mm
Length	191 mm
Material	Polystyrene
Mounting type, consumer units	Structure

Nominal current	40 A
Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK07.
Transparent lid	yes
Version, small distributor cover	With cut-out
Width	151 mm
Width in divisional units	3
With lock	no
With mounting plate	no
