Distribution box, 9 division units, empty, polystyrene

Item no. 2008828 | EAN 4012196465729

Item no. / Types	2008828 / SDB 09L PS

Length	241 mm

Width	191 mm

Height	126 mm

Product description

Product description

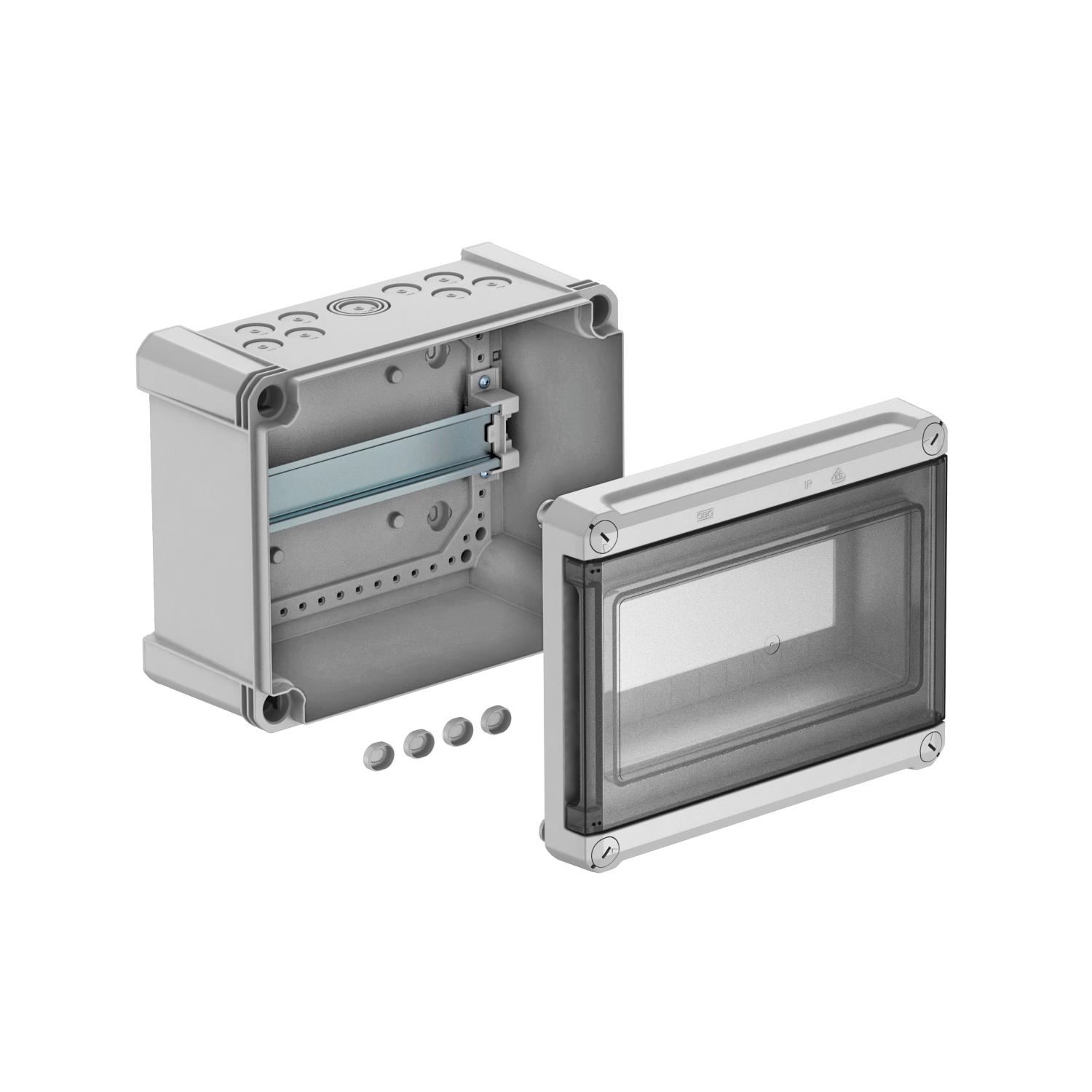

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 9 division units

- 8 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 63 A
Power loss at 40 K 20.7 W

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover

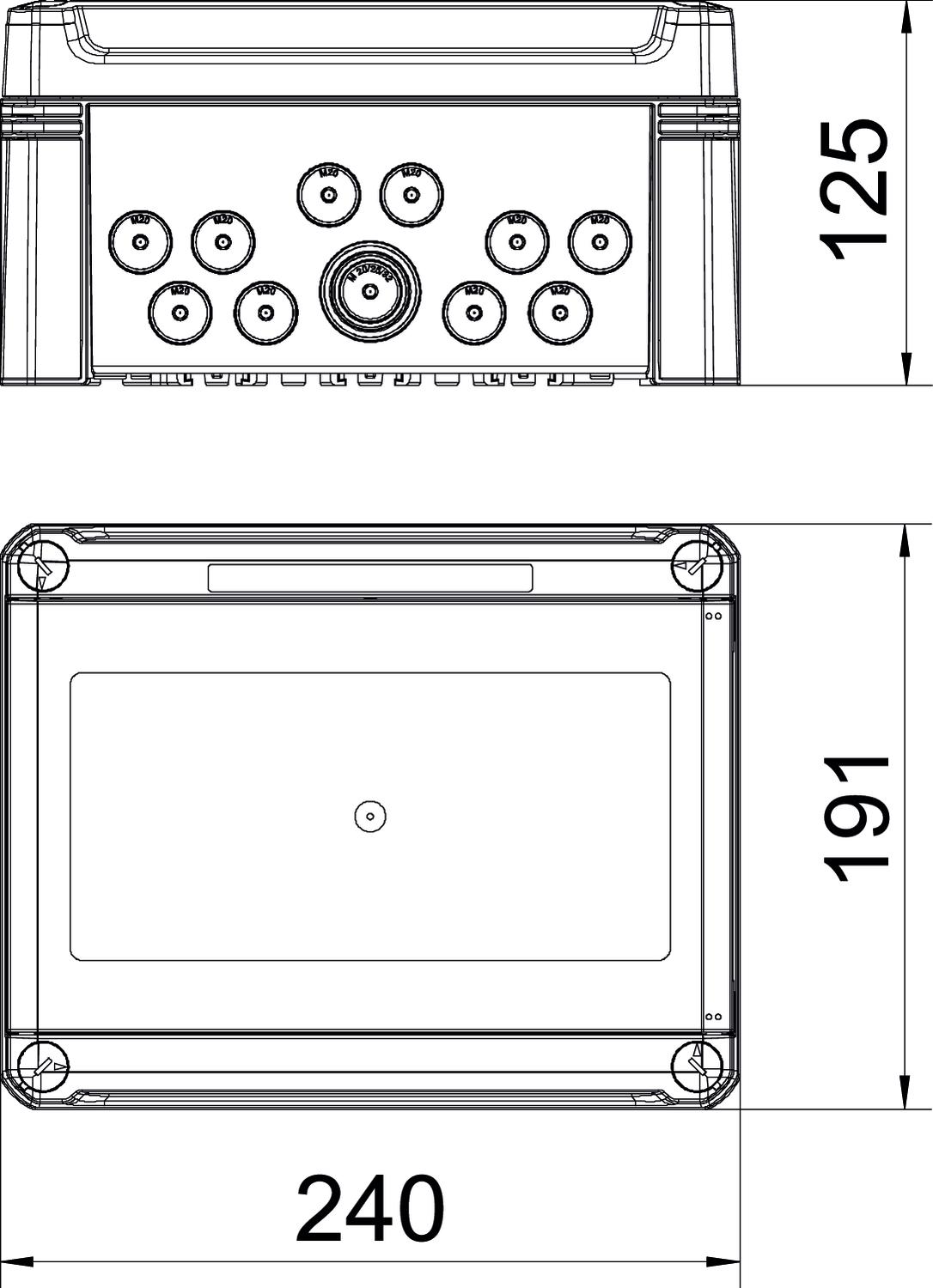

Dimension	240x191x125
DIN rail	yes
EMC version	no
Extension option	yes
Height	126 mm
Length	241 mm
Material	Polystyrene
Mounting type, consumer units	Structure
Nominal current	63 A

Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK07.
Transparent lid	yes
Version, small distributor cover	With cut-out
Width	191 mm
Width in divisional units	9
With lock	no
With mounting plate	no
