Driving spike for OMEX earth rod

Item no. 3041255 | EAN 4012195242833

Item no. / Types

Earther diameter

for earth rods

Product description

Product description

• Suitable for OMEX system
• DIN 48852, Form SP

Technical data

Technical data

Dimension	25mm
Earther diameter	25 mm
for earth rods	25 mm

Material	cast steel
Surface	Hot-dip galvanised

All types

All types

Types	Earther diameter	for earth rods	Item no.	Quantity	SSU
1819 20	20 mm	20 mm	3041204	piece	5 piece
1819 25	25 mm	25 mm	3041255	piece	5 piece

Downloads

Data sheet 1819 25 / 3041255 , 0.12MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 1819 25 / 3041255 , 0.06MB , pdf

Download

REACH Declaration of conformity 1819 25 / 3041255 , 0.12MB , pdf

Download

RoHS Declaration of conformity 1819 25 / 3041255 , 0.13MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Product graphic 1819 25 / 3041255, 29.09 kB, jpg

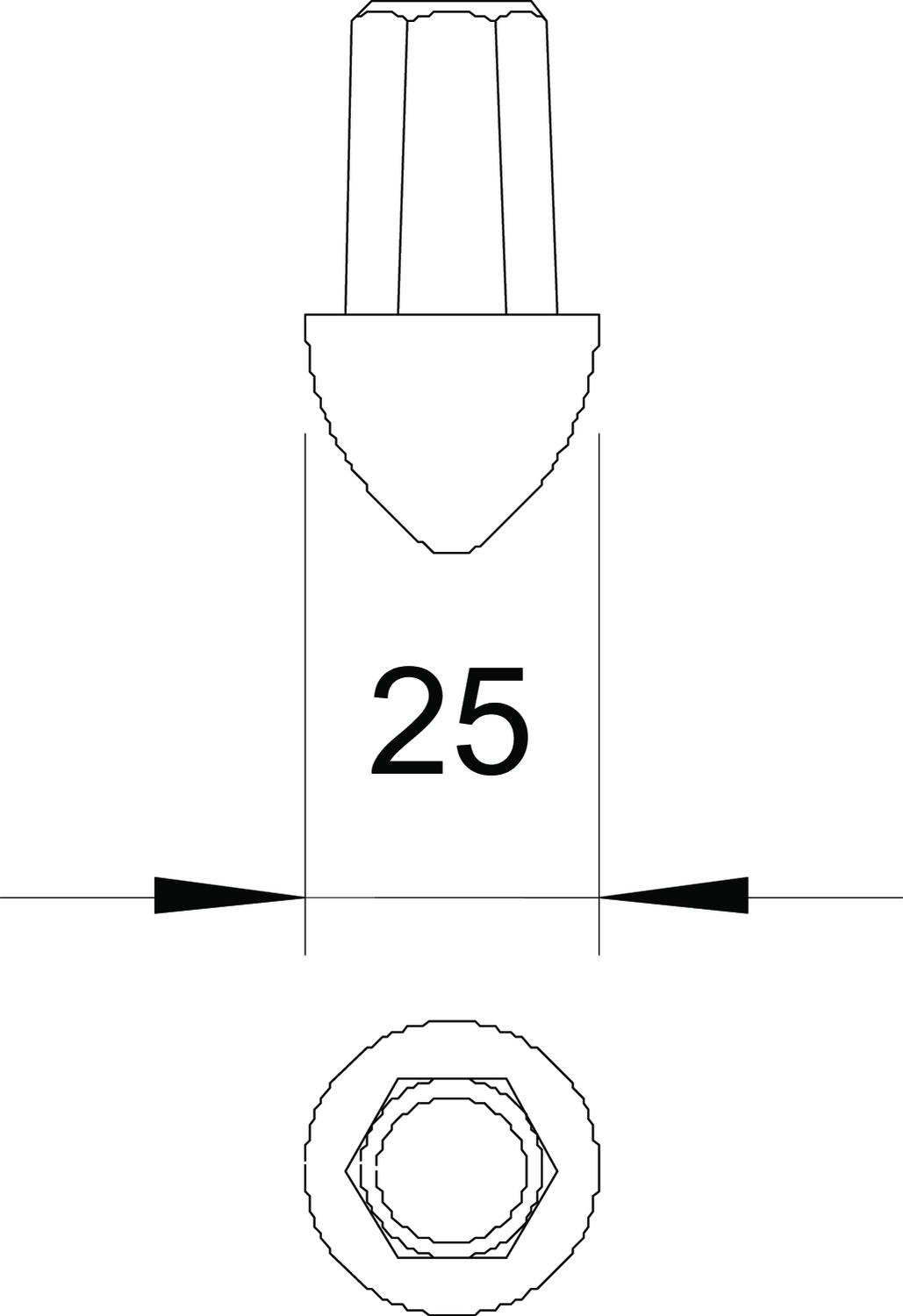

Scale drawing 1819 25 / 3041255, 43.36 kB, jpg
