Drop-out FS 85

morepic-1

morepic-2

Drop-out FS

Item no. 6220139 | EAN 4012195677932

Item no. / Types	6220139 / KAB GR FS

Width	85 mm

Product description

Product description

Drop-out plate for mesh cable trays.

Technical data

Technical data

Dimension	192x85x51
Length	193 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no

Surface	Strip galvanized
Wide-span version	no
Width	3,47 in
Width	85 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
KAB GR FS	85 mm	6220139	piece	10 piece

Downloads

Data sheet KAB GR FS / 6220139 , 0.22MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity KAB GR FS / 6220139 , 0.10MB , pdf

UK Declaration of Conformity KAB GR FS / 6220139 , 0.14MB , pdf

Download

REACH Declaration of conformity KAB GR FS / 6220139 , 0.12MB , pdf

Download

RoHS Declaration of conformity KAB GR FS / 6220139 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

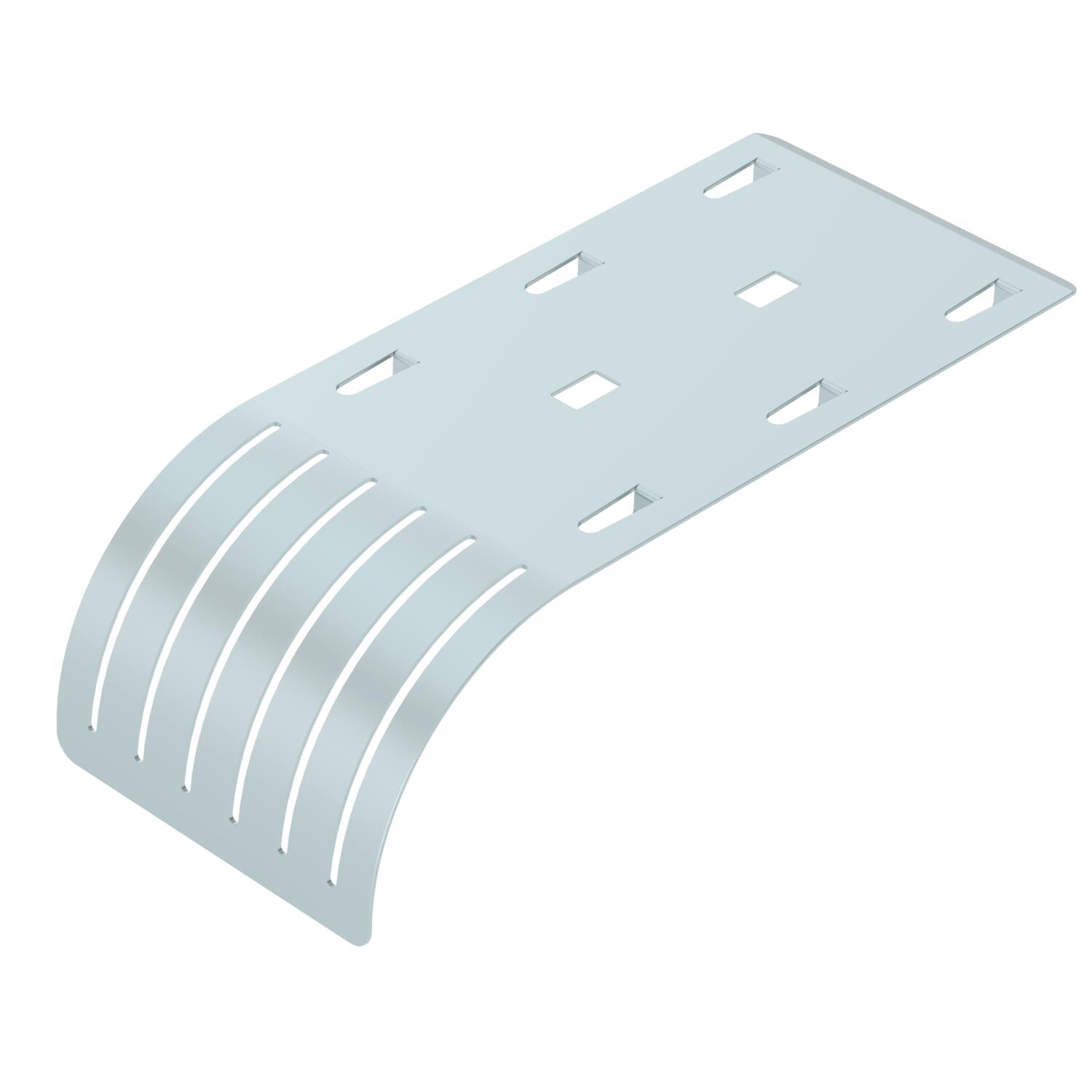

Product graphic KAB GR FS / 6220139, 45.31 kB, jpg

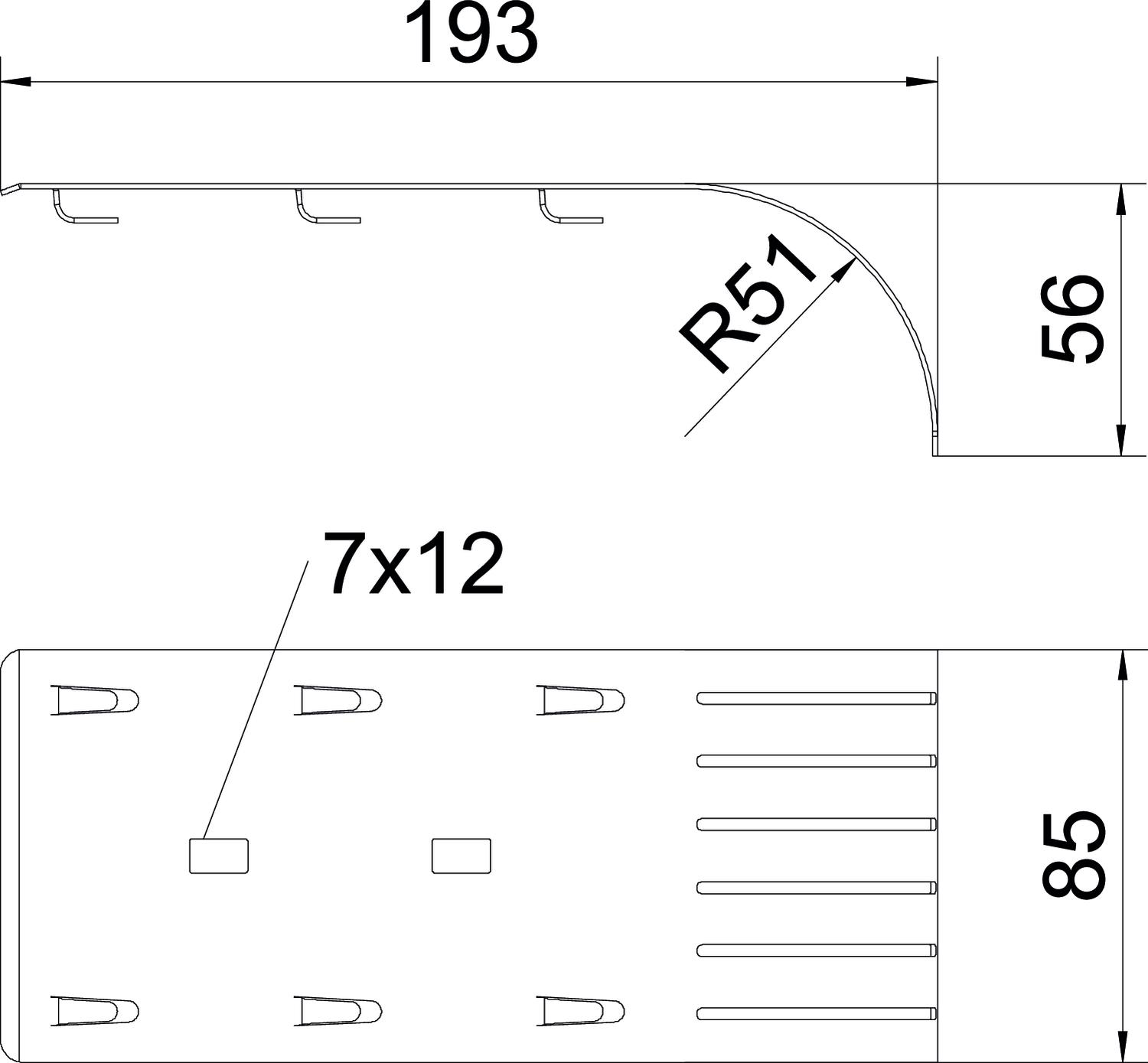

Scale drawing KAB GR FS / 6220139, 77.64 kB, jpg

KAB GR FS / 6220139

6220139_KSTP1.stp, 415.77 kB

kabelabgangsblech KAB GR FS.rfa, 492.00 kB
