Drop-out plate FT
Item no. 6220436 | EAN 4012196163397
| Item no. / Types |
6220436 / LAB 20 FT
|
|---|
- Product description
-

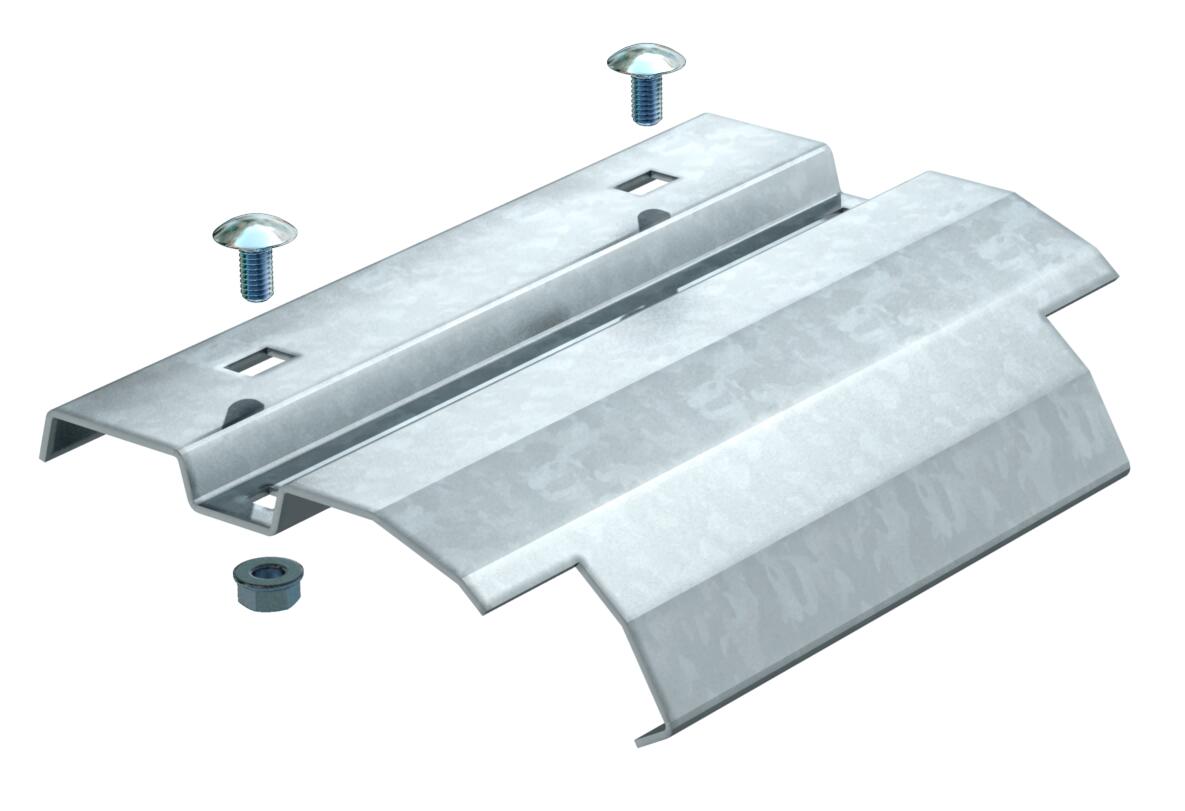

Product descriptionExit plate for installation on the rung for vertically exiting cables.
-
- Technical data
-
Technical data

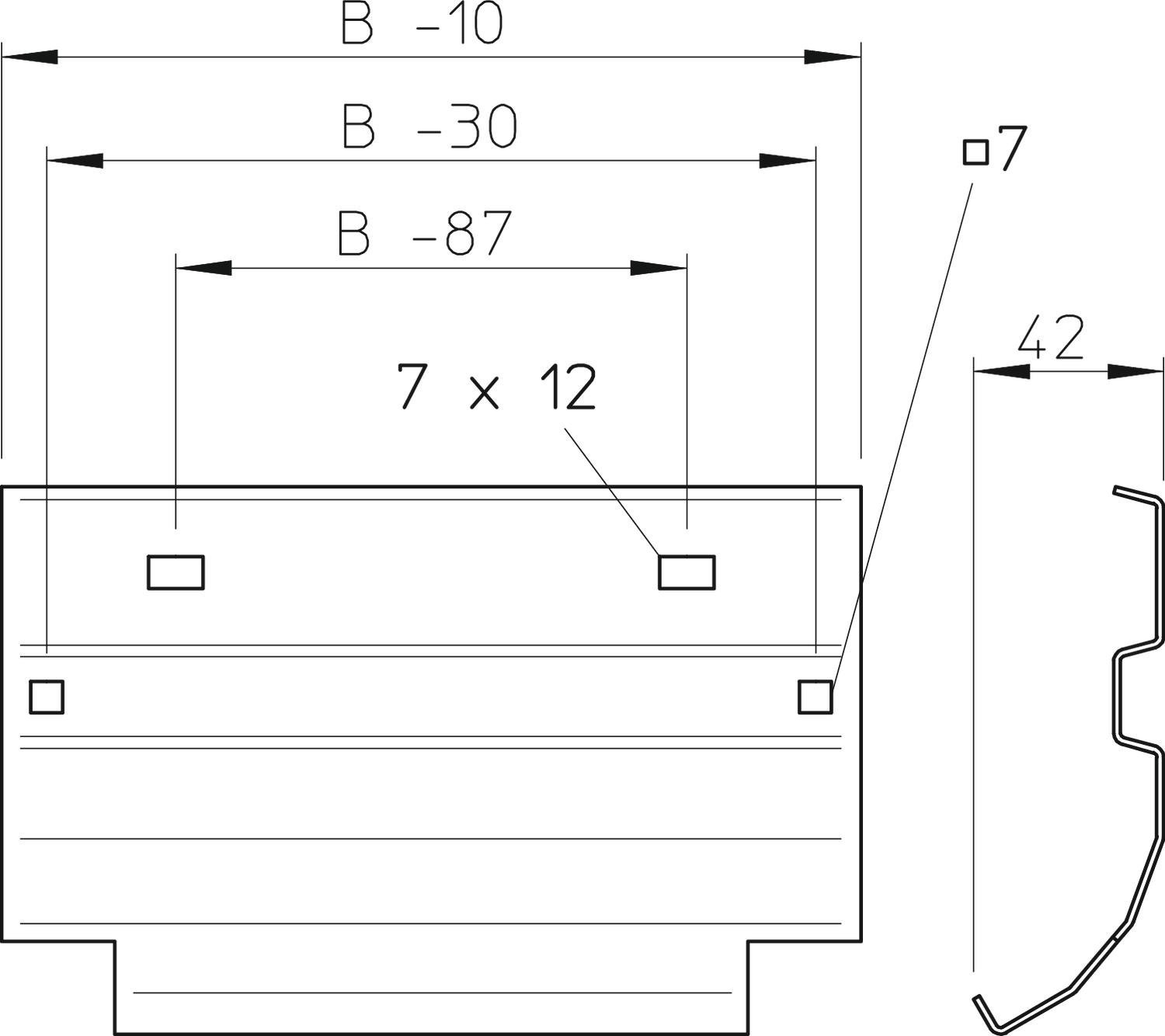

CO2 Footprint (GWP) Cradle-to-Gate 1,0801 kg CO2e / 1 Piece Colour zinc Dimension B200mm Dimension B 200 mm Height 45 mm Maintain electrical functions yes Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Surface Hot-dip galvanised Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet LAB 20 FT / 6220436 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LAB 20 FT / 6220436 , 0.10MB , pdfUK Declaration of Conformity LAB 20 FT / 6220436 , 0.09MB , pdfREACH Declaration of conformity LAB 20 FT / 6220436 , 0.12MB , pdfRoHS Declaration of conformity LAB 20 FT / 6220436 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions Wide span cable ladders , 7.96MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
