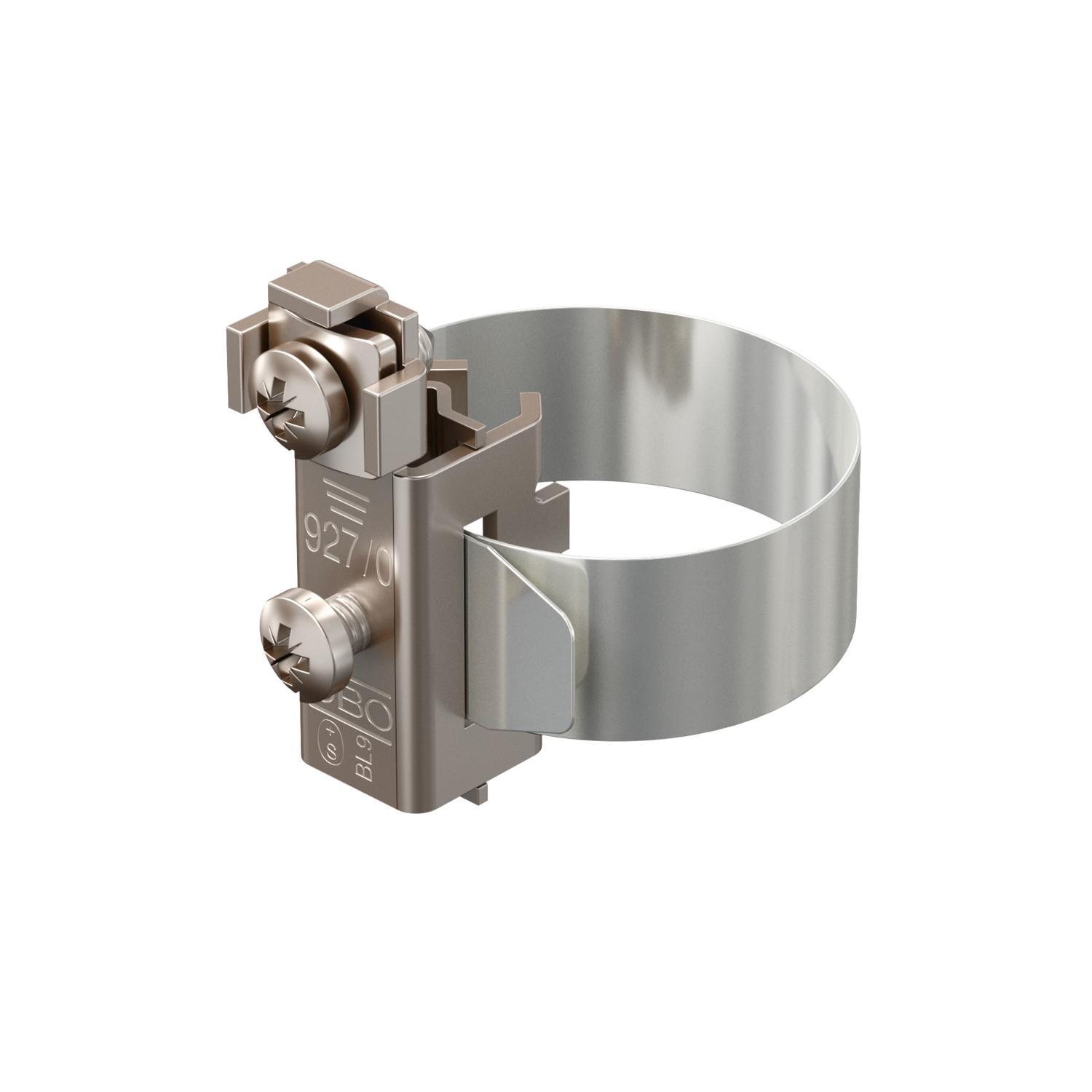

Earthing pipe clamp, nickel-plated
Item no. 5057507 | EAN 4012195388517
- Product description
-
Product description• For pipe Ø 8-22 mm
• Connection options: max. 2 conductors 2.5-10 mm²
• Clamp elements and screws from nickel-plated brass
• Tightening strap from high-grade stainless steel (V2A)
- Technical data
-
Technical data

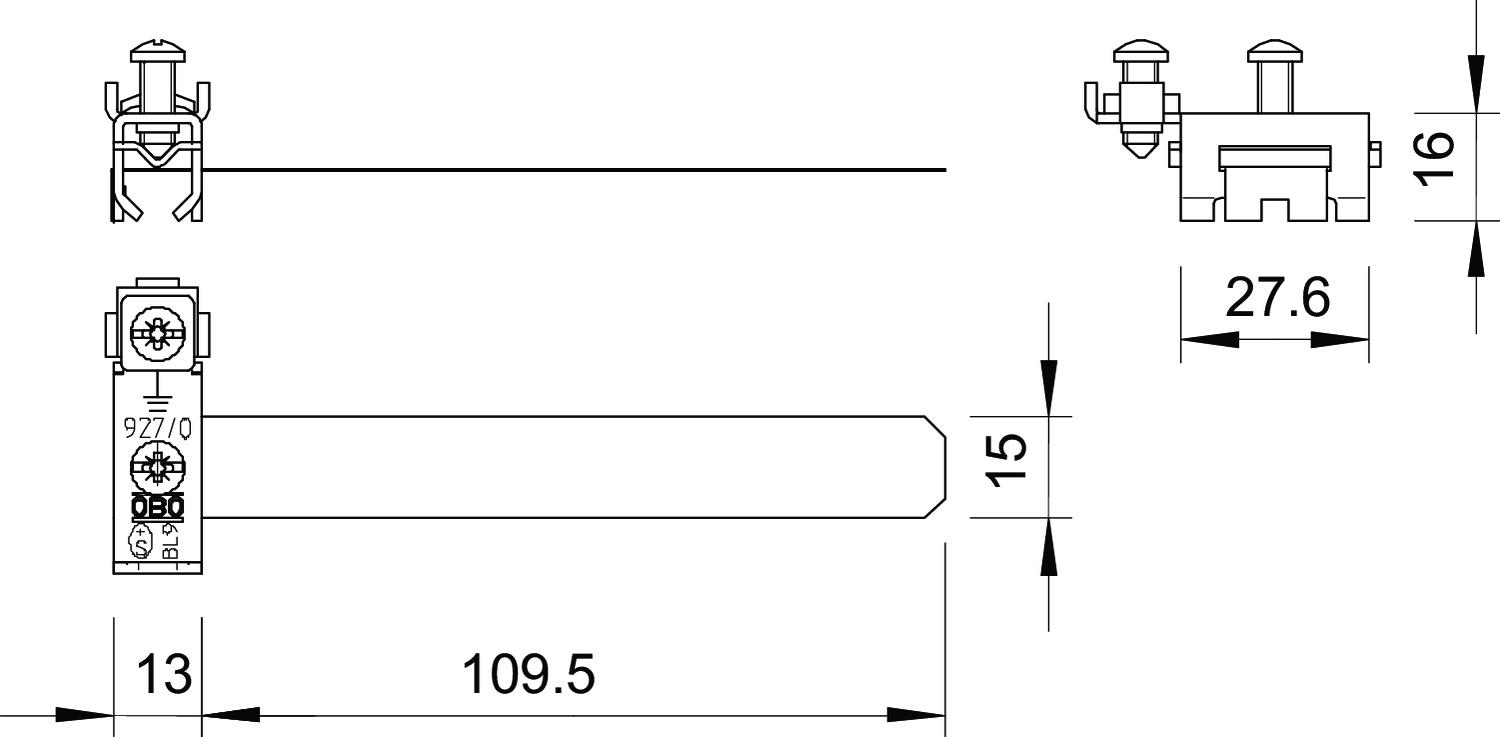

Clamping range D, max. 22 mm Clamping range D, min. 8 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,115 kg CO₂e / 1 Piece Cross-section of cable to be connected, max. 10 mm² Cross-section of cable to be connected, min. 2,5 mm² Dimension 8-22mm Dimension L 109,5 mm For pipe diameter, max. 22 mm For pipe diameter, min. 8 mm Material Brass Number of conductors 2 Surface Nickel-plated - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Pre-tensioner bit for earthing pipe clamps
927 BES VSW 25 A 5057694 1 piece - Downloads
-
Data sheet 927 0 / 5057507 , 0.19MB , pdfEU declaration of conformity 927 0 / 5057507 , 0.10MB , pdfREACH Declaration of conformity 927 0 / 5057507 , 0.12MB , pdfRoHS Declaration of conformity 927 0 / 5057507 , 0.12MB , pdf
