Earthing pipe clamp VA
Item no. 5057595 | EAN 4012195060734
- Product description
-
Product description927/S-1: Strip earthing clip
• For pipes of Ø 3/8 - 1 1/2"
• Connection options: Max. 2 cables 2.5–16 mm²
• Round conductor Rd 8
• Clip element made of strip-galvanised steel
• Tightening strap made of rustproof stainless steel (VA)
-
- Technical data
-
Technical data

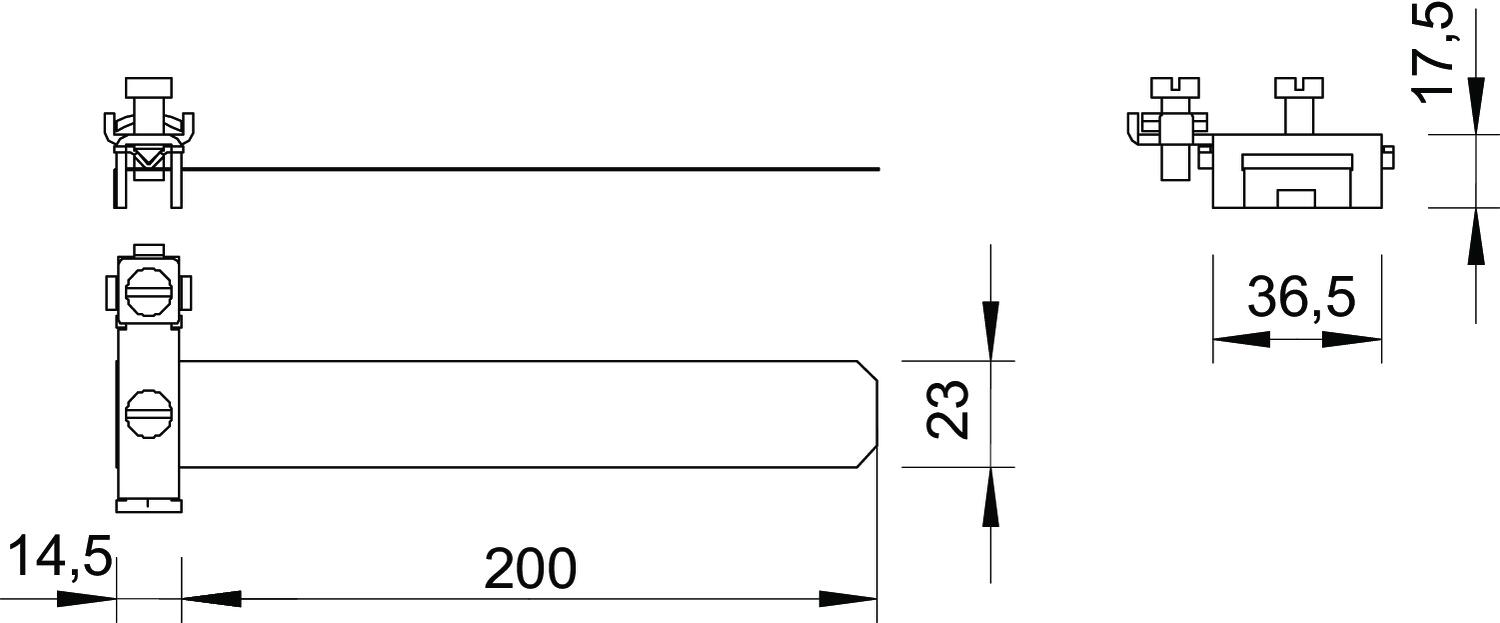

Cross-section of cable to be connected, max. 25 mm² Cross-section of cable to be connected, min. 2,5 mm² Dimension 3/8-1 1/2" Dimension L 200 mm Lightning current carrying capacity N/50 kA Number of conductors 2 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Pre-tensioner bit for earthing pipe clamps
927 BES VSW 25 A 5057694 1 piece - Downloads
-
