EI60 end piece for PLCD D061220 fire protection duct
Item no. 7215844 | EAN 4012196836567
- Product description
-

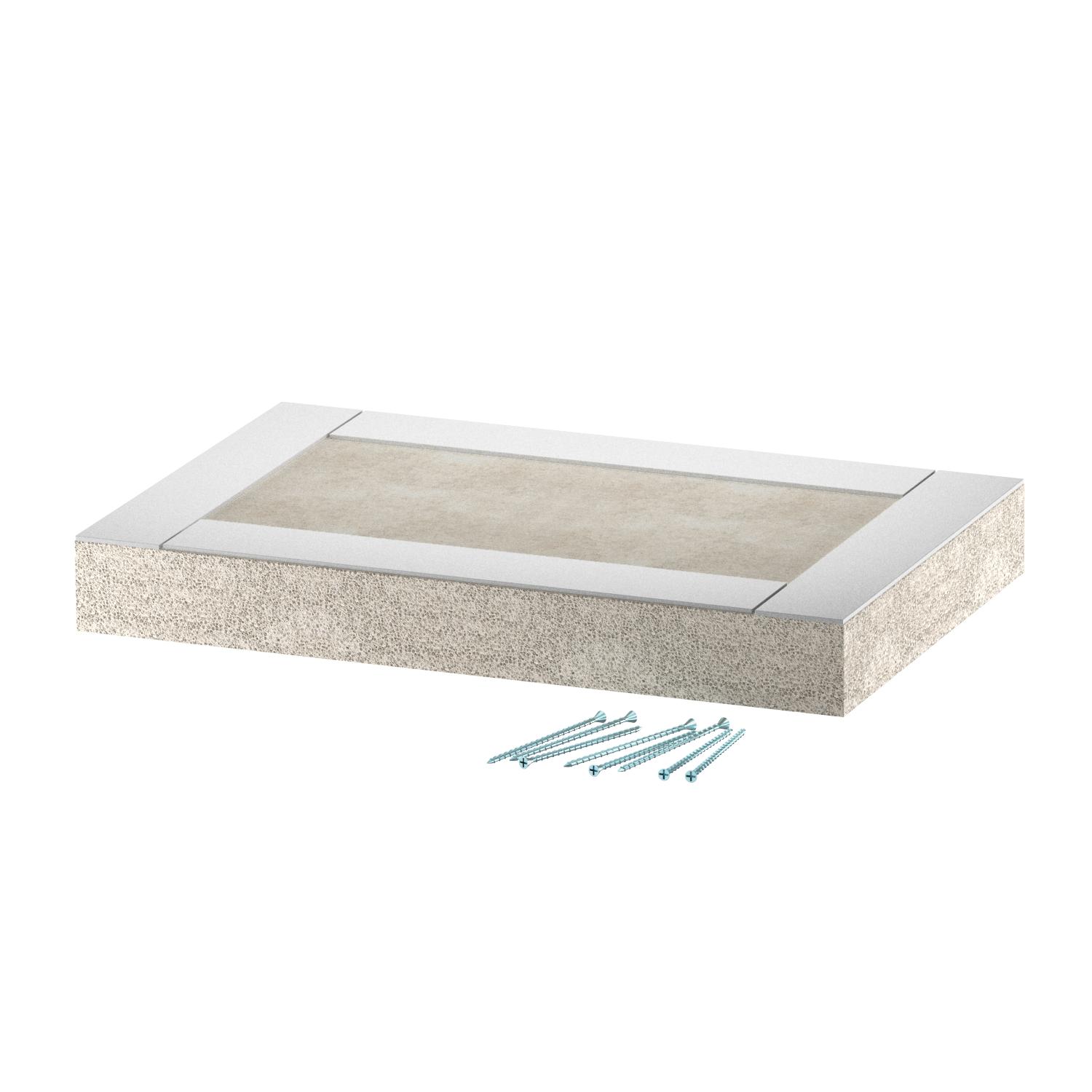

Product descriptionEnd piece for PYROLINE® Con D EI60 fire protection duct, type PLCD D061220, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
-
- Technical data
-
Technical data

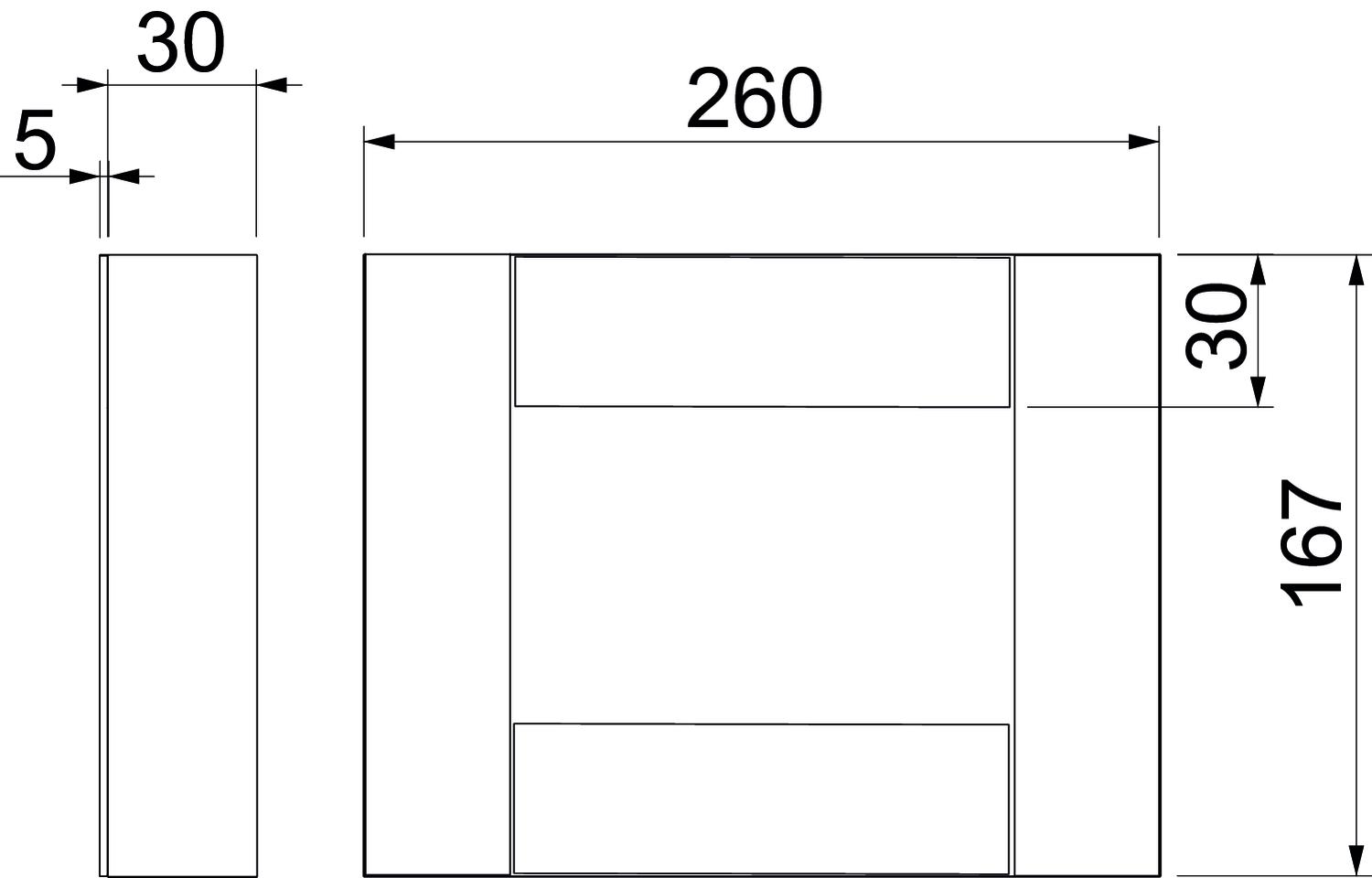

Classification EI − installation duct 60 Colour Grey Dimension 200x120 Dimension A 30 mm Dimension B 260 mm Dimension H 167 mm Dimension L 30 mm Height 167 mm Jacketing Without Length 30 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 2 Version for Left/right Width 260 mm - All types
- Downloads
-
Data sheet PLCD E061220 / 7215844 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCD E061220 / 7215844 , 0.11MB , pdfDeclaration of performance PLCD E061220 / 7215844 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
