EI60 end piece for PLCS D060810 fire protection duct

Item no. 7217980 | EAN 4012196836932

Grey
Product description

Product description

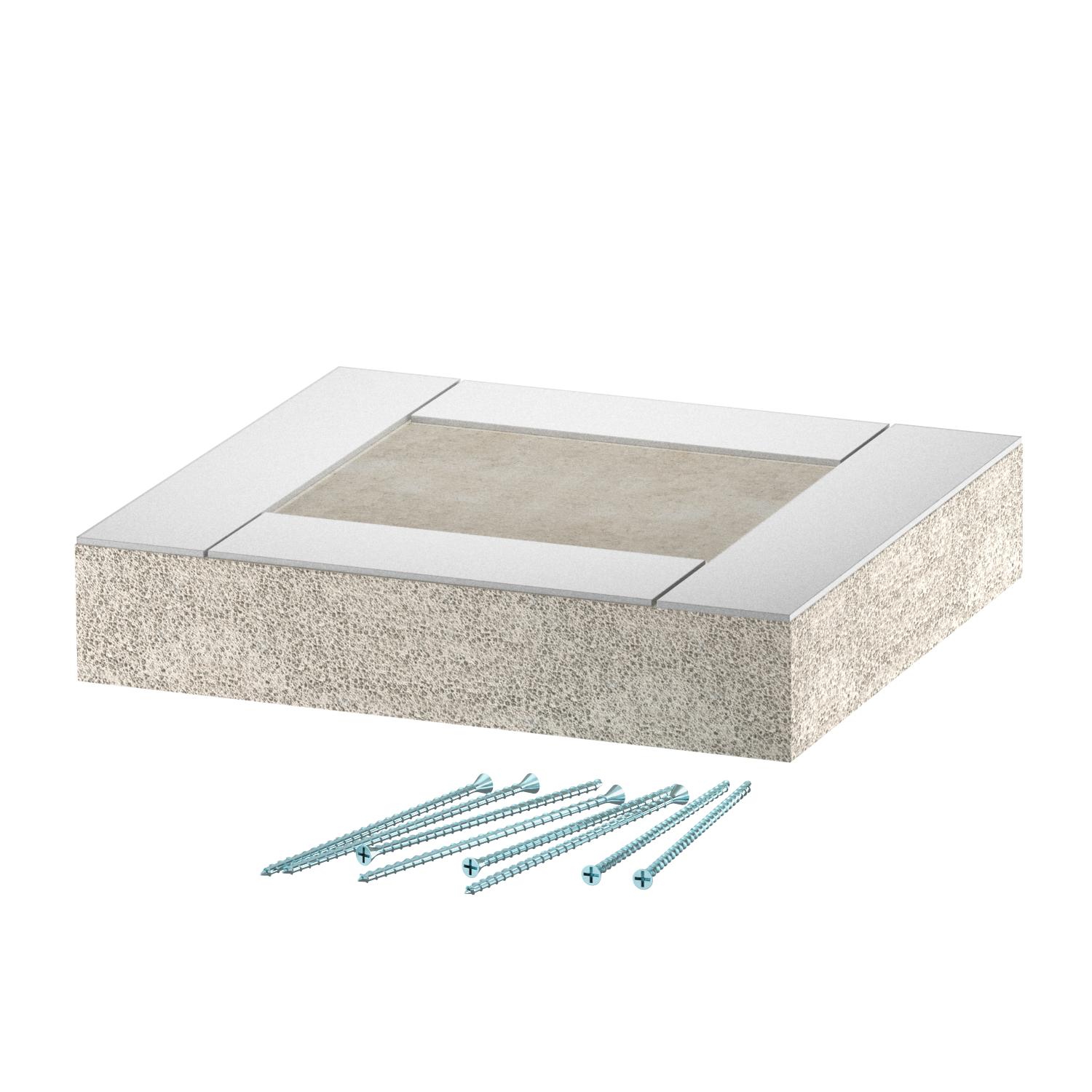

End piece for PYROLINE® Con S EI60 fire protection duct, type PLCS D060810, consisting of fibreglass light concrete which is resistant to water and frost to close the duct ends.

Including countersunk head screws and stuck-on sealing strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 60
Colour Grey

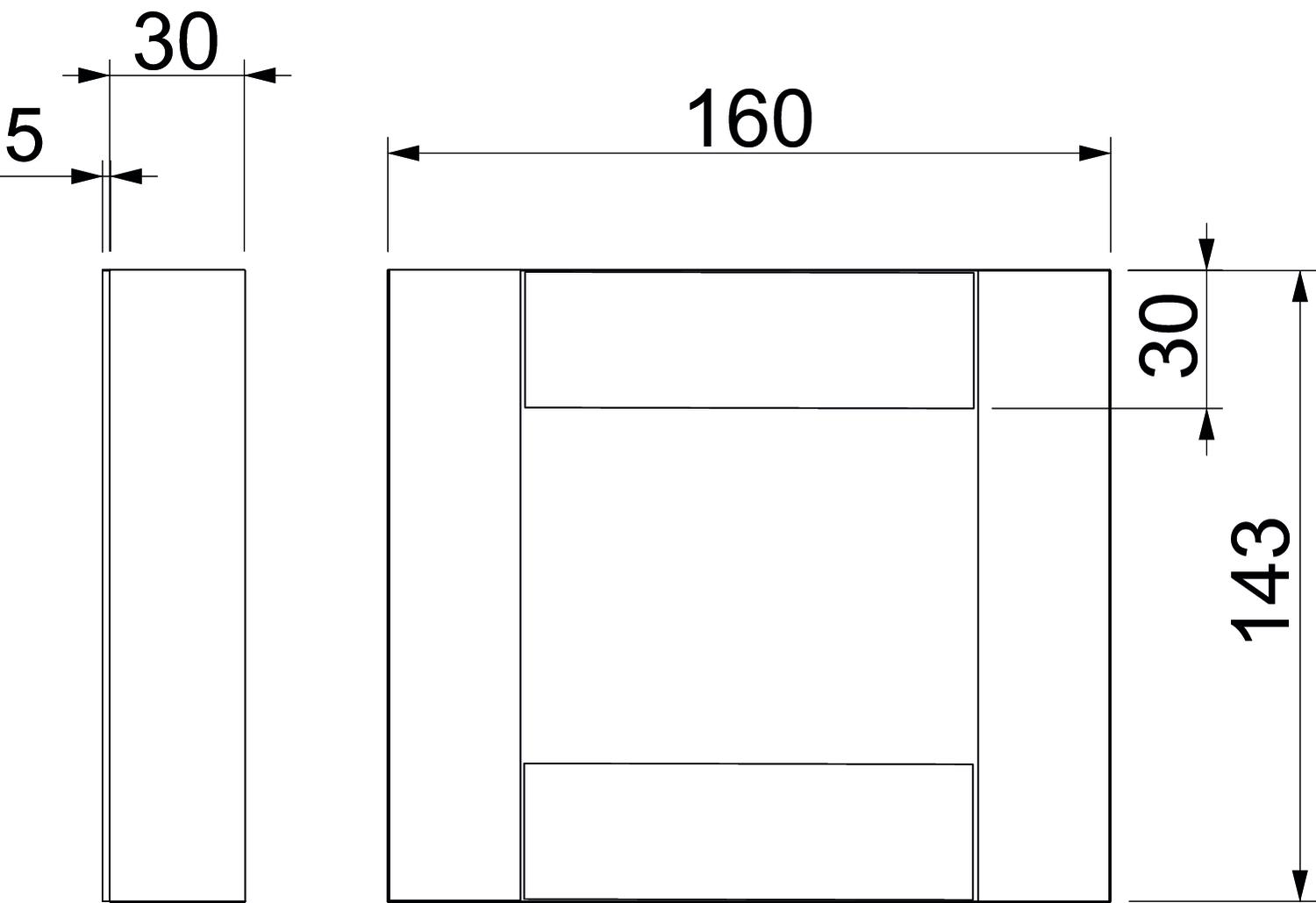

Dimension 100x80
Dimension A 30 mm
Dimension B 160 mm
Dimension H 143 mm
Dimension L 30 mm
Height 143 mm
Jacketing Without
Length 30 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Version for Left/right
Width 160 mm
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLCS E060810 160 mm 143 mm Grey 7217980
1 piece
PLCS E061220 260 mm 183 mm Grey 7217984
1 piece
Downloads

Download

Declaration of conformity PLCS E060810 / 7217980 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
