EI60 end piece for PLCS D061220 fire protection duct

Item no. 7217984 | EAN 4012196836949

Grey
Product description

Product description

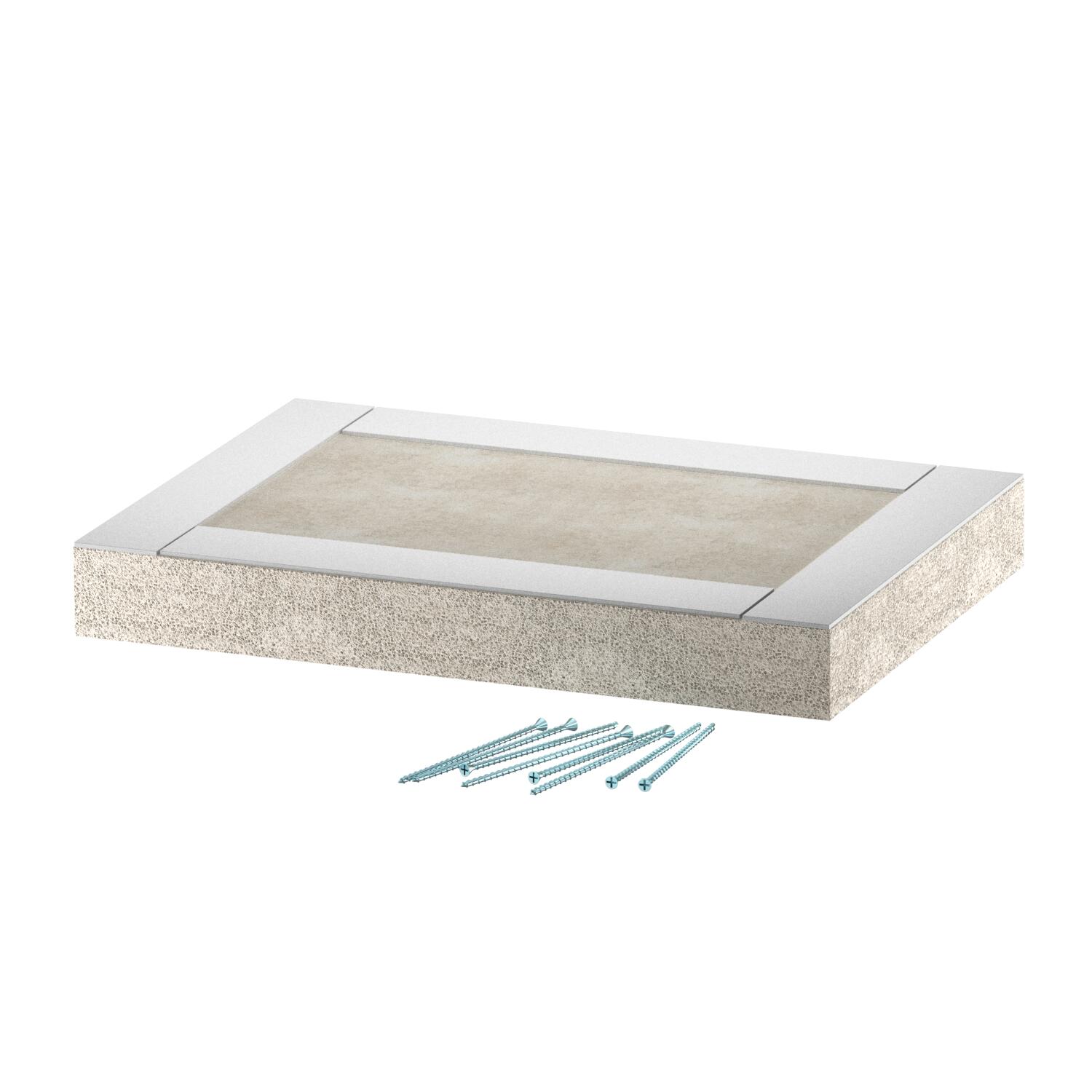

End piece for PYROLINE® Con S EI60 fire protection duct, type PLCS D061220, consisting of fibre glass light concrete which is resistant to water and frost for closing the duct ends.

Including countersunk head screws and stuck-on sealing strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 60
Colour Grey

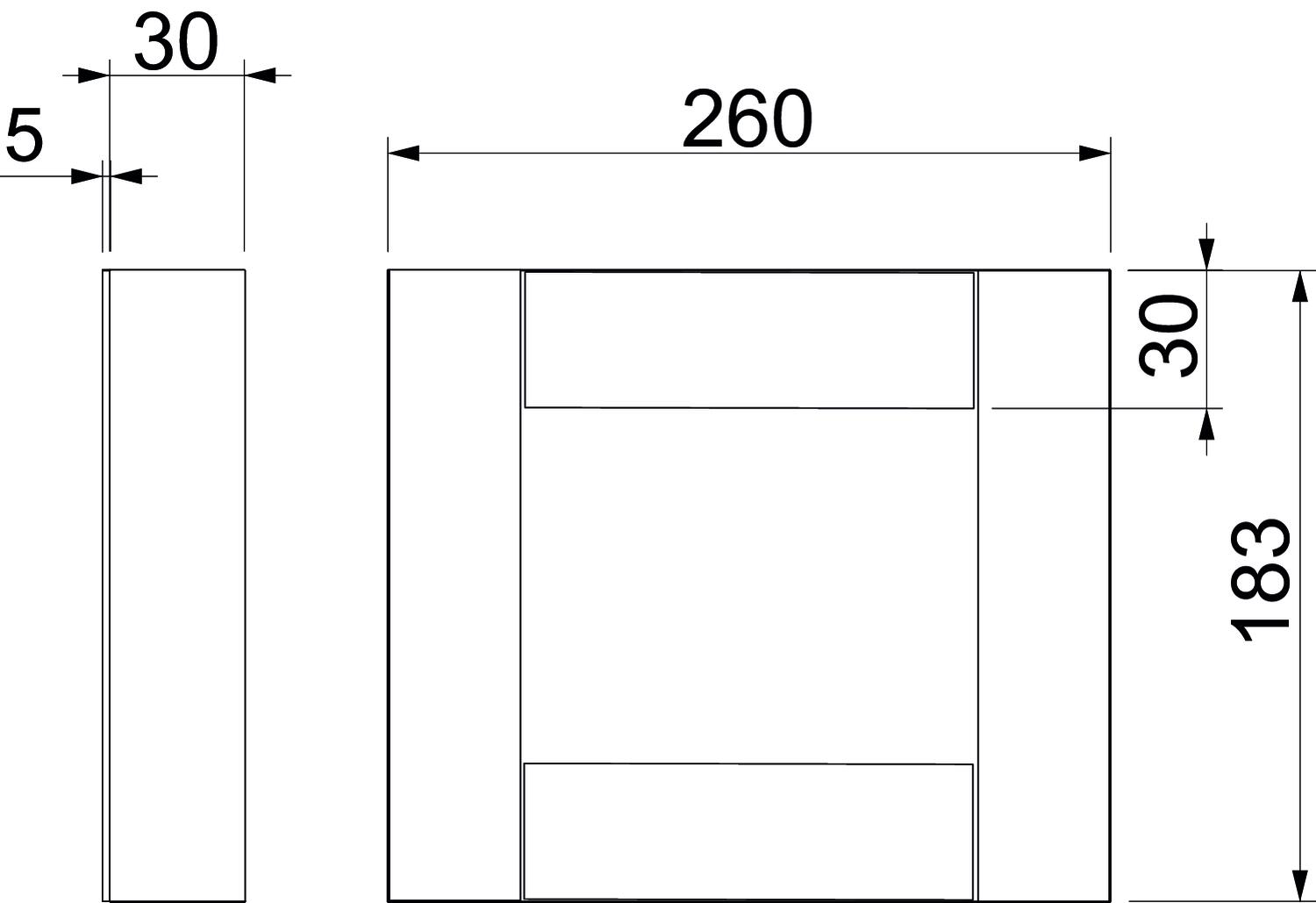

Dimension 200x120
Dimension A 30 mm
Dimension B 260 mm
Dimension H 183 mm
Dimension L 30 mm
Height 183 mm
Jacketing Without
Length 30 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Version for Left/right
Width 260 mm
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLCS E060810 160 mm 143 mm Grey 7217980
1 piece
PLCS E061220 260 mm 183 mm Grey 7217984
1 piece
Downloads

Download

Declaration of conformity PLCS E061220 / 7217984 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
