EI90 end piece for PLCD D091220 fire protection duct

Item no. 7215854 | EAN 4012196836581

Grey
Product description

Product description

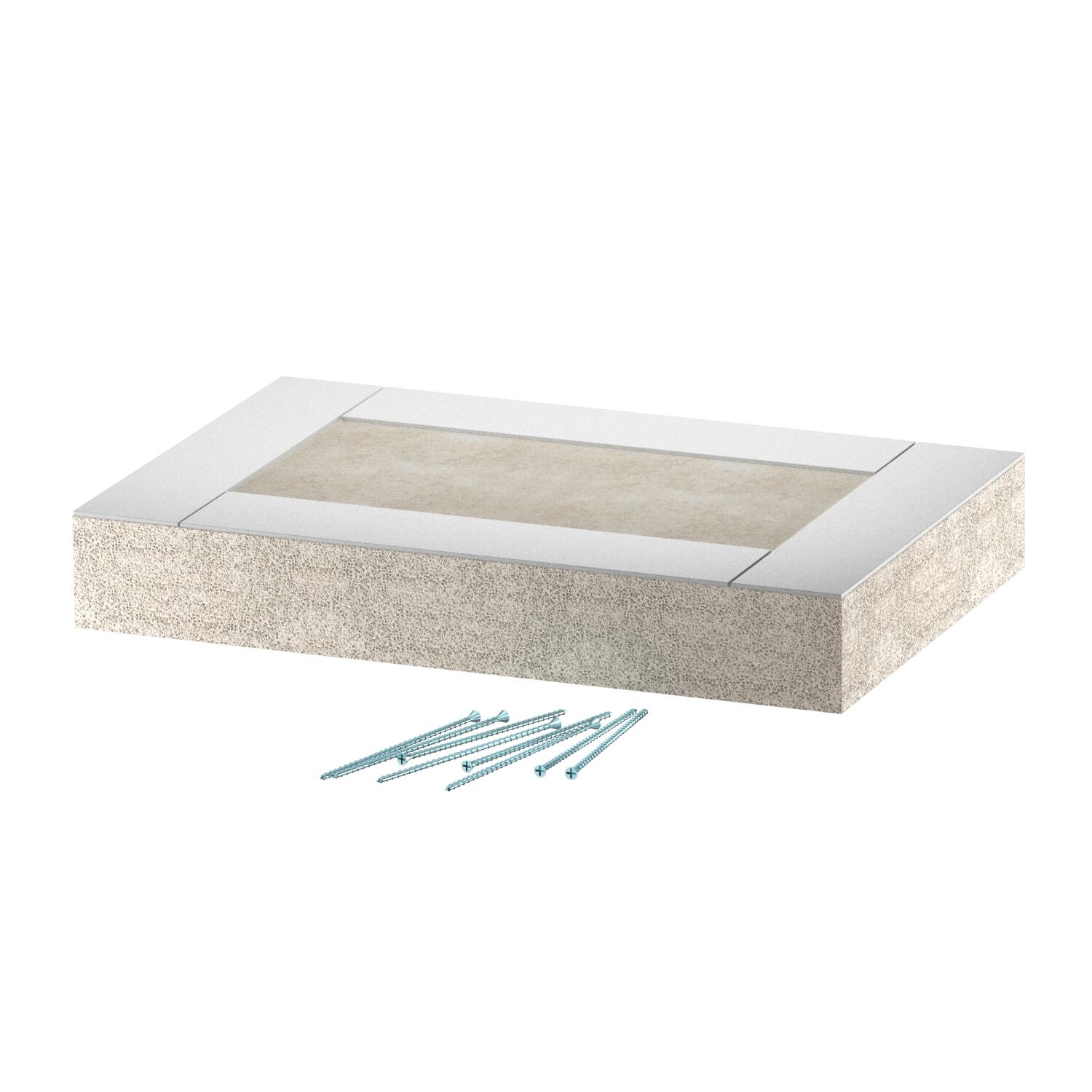

End piece for PYROLINE® Con D EI90 fire protection duct, type PLCD D091220, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.

Including countersunk head screws and stuck-on sealing strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Grey

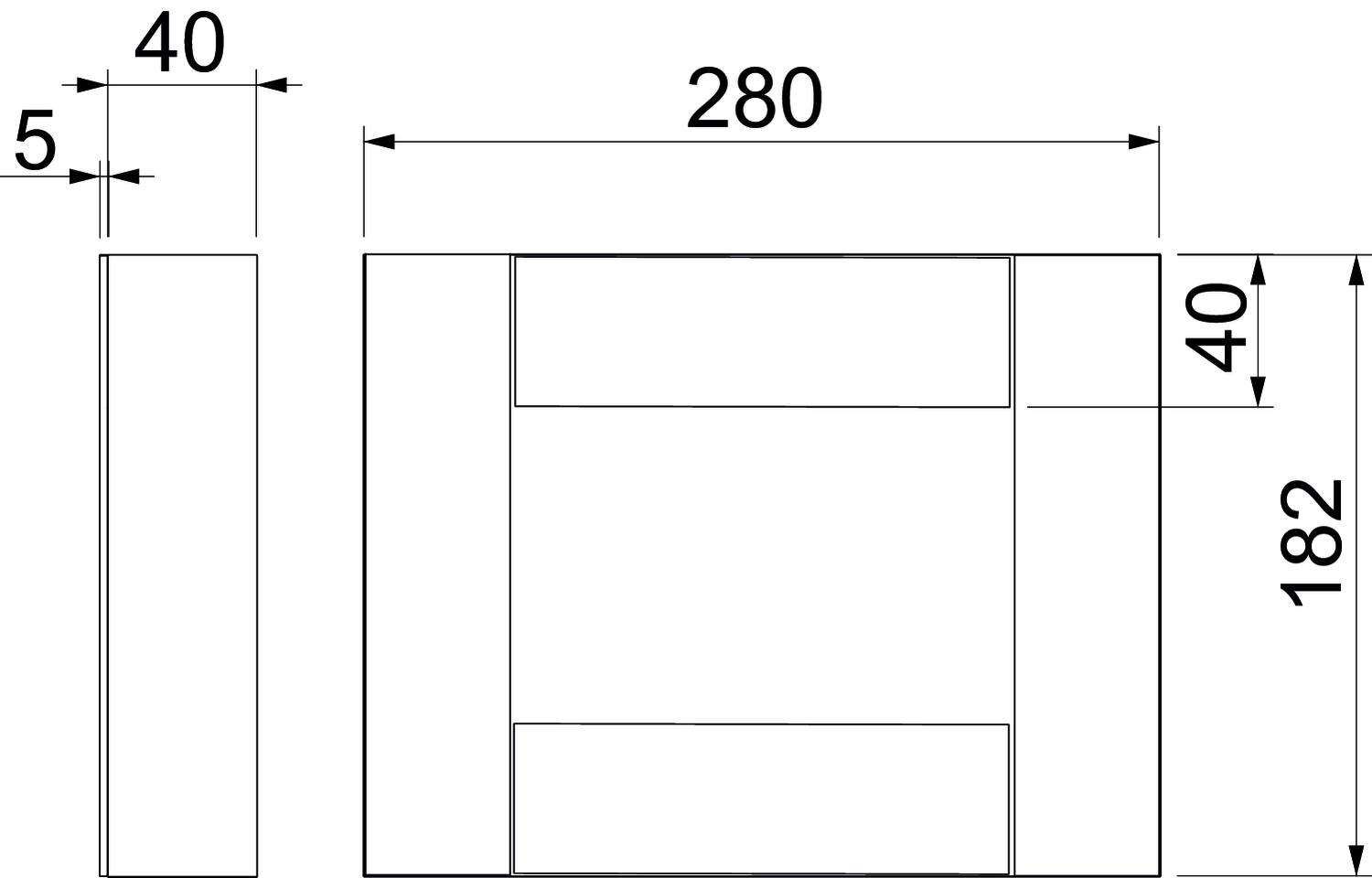

Dimension 200x120
Dimension A 40 mm
Dimension B 280 mm
Dimension H 182 mm
Dimension L 40 mm
Height 182 mm
Jacketing Without
Length 40 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Version for Left/right
Width 280 mm
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLCD E090810 180 mm 142 mm Grey 7215850
1 piece
PLCD E091220 280 mm 182 mm Grey 7215854
1 piece
Downloads

Download

Declaration of conformity PLCD E091220 / 7215854 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
