EI90 end piece for PLCS D090810 fire protection duct

Item no. 7217990 | EAN 4012196836970

Grey
Product description

Product description

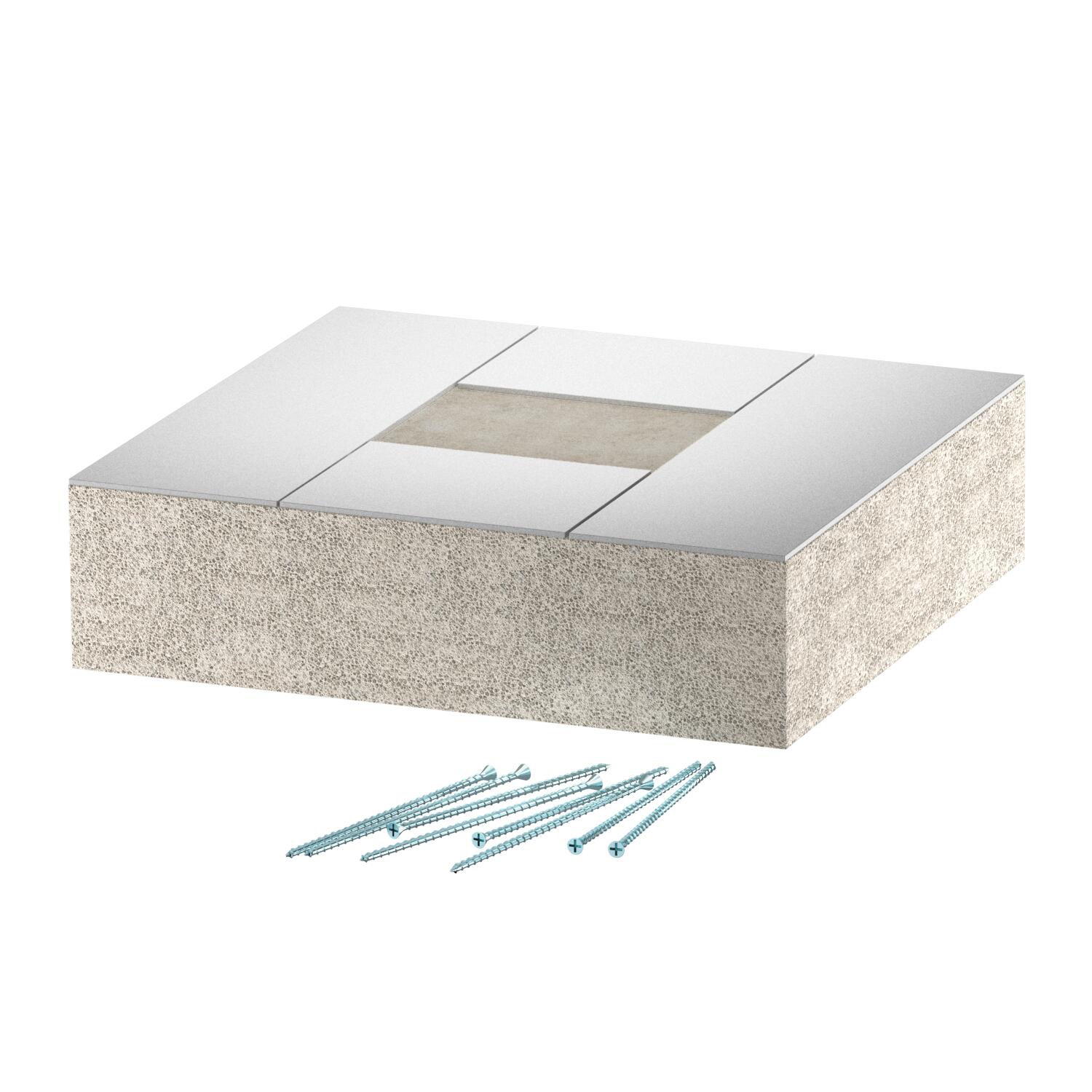

End piece for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.

Including countersunk head screws and stuck-on sealing strip.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Grey

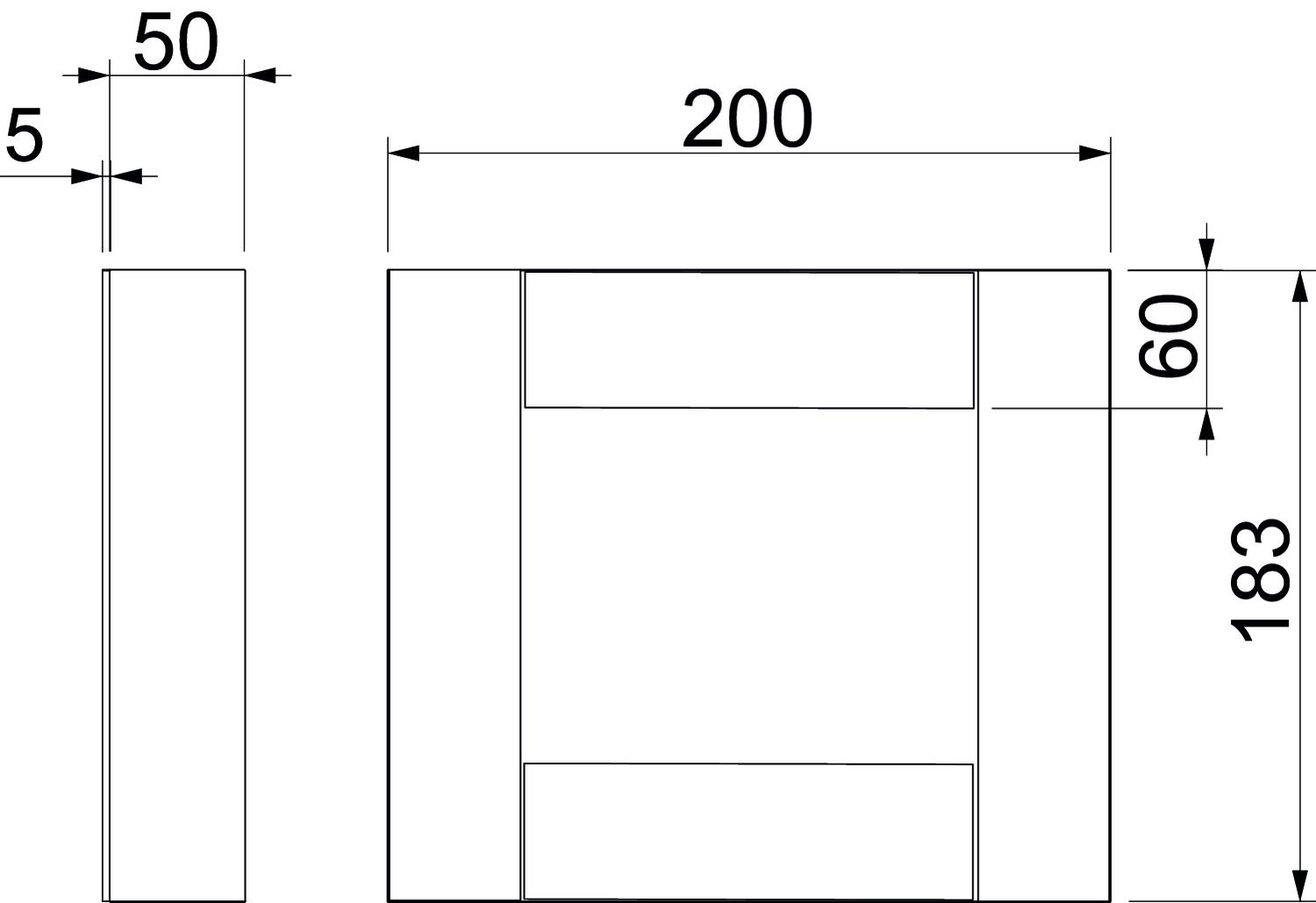

Dimension 100x80
Dimension A 60 mm
Dimension B 200 mm
Dimension H 183 mm
Dimension L 50 mm
Height 183 mm
Jacketing Without
Length 50 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Version for Left/right
Width 200 mm
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLCS E090810 200 mm 183 mm Grey 7217990
1 piece
PLCS E091220 300 mm 223 mm Grey 7217994
1 piece
Downloads

Download

Declaration of conformity PLCS E090810 / 7217990 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
