EI90 end piece for PLCS D091220 fire protection duct
Item no. 7217994 | EAN 4012196836987
- Product description
-

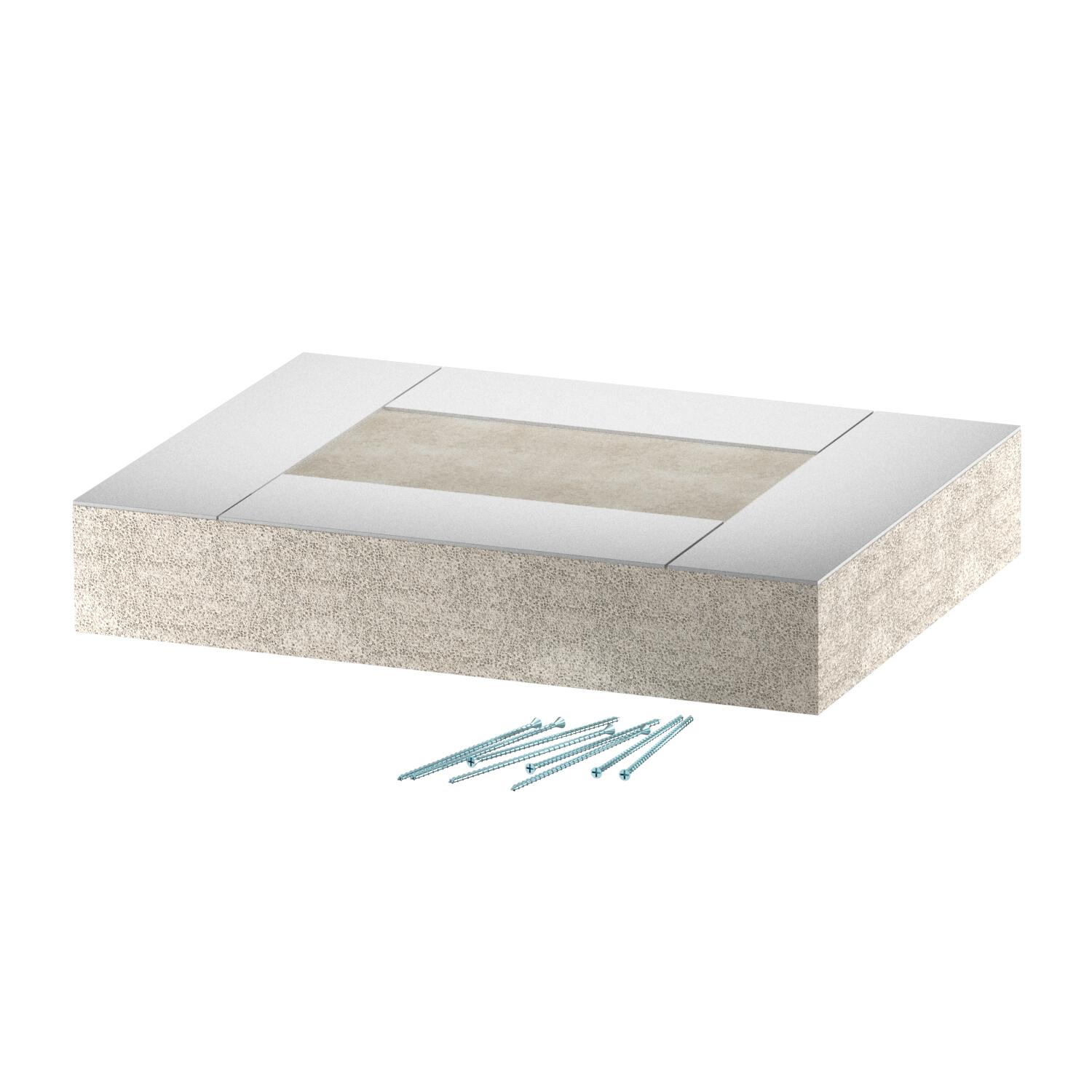

Product descriptionEnd piece for PYROLINE® Con S EI90 fire protection duct, type PLCS D091220, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
-
- Technical data
-
Technical data

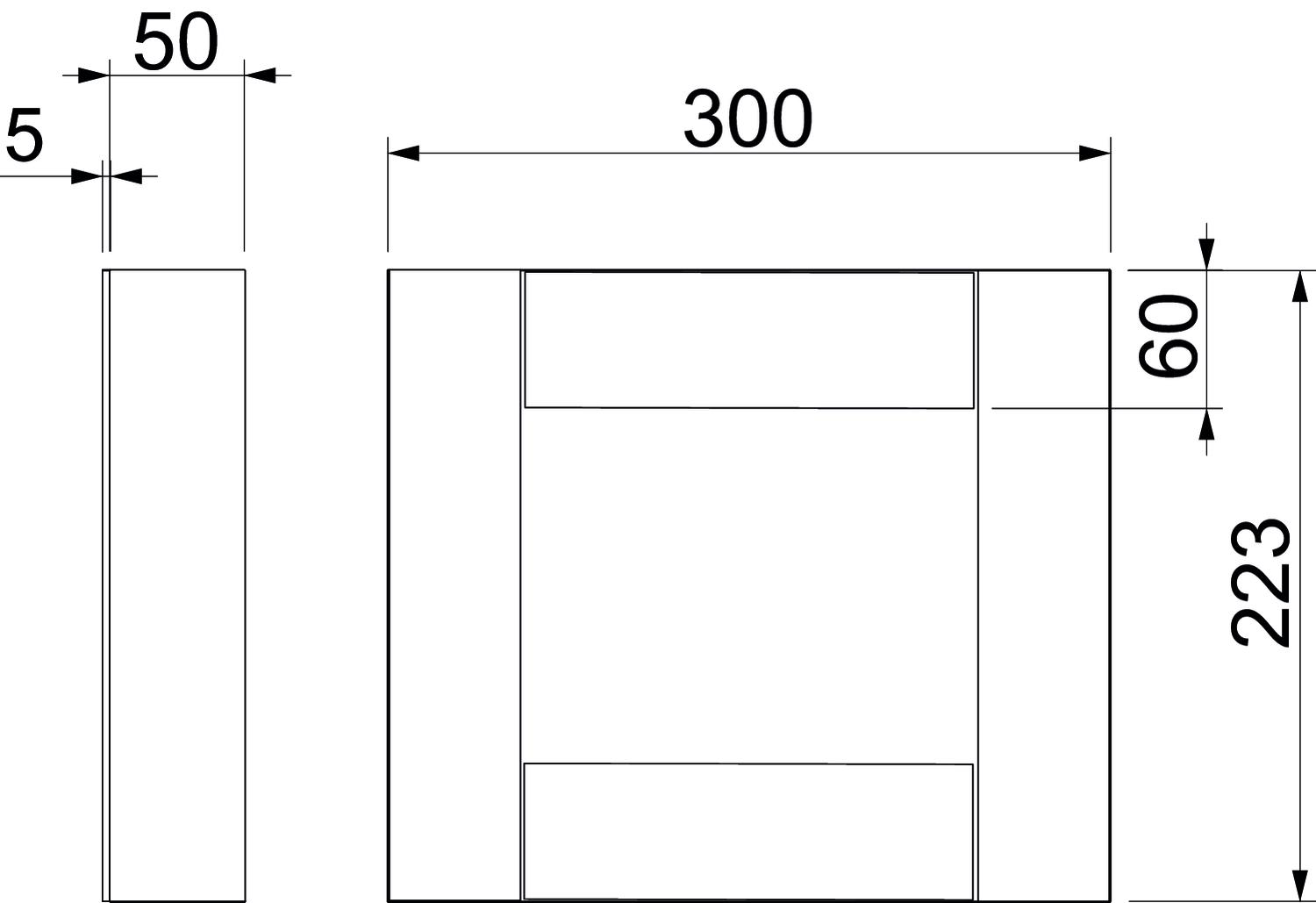

Classification EI − installation duct 90 Colour Grey Dimension 200x120 Dimension A 60 mm Dimension B 300 mm Dimension H 223 mm Dimension L 50 mm Height 223 mm Jacketing Without Length 50 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Version for Left/right Width 300 mm - All types
- Downloads
-
Data sheet PLCS E091220 / 7217994 , 0.21MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS E091220 / 7217994 , 0.10MB , pdfDeclaration of performance PLCS E091220 / 7217994 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
