EI90 wall connection collar for PLCS D090810 fire protection duct
Item no. 7217970 | EAN 4012196836918
- Product description
-

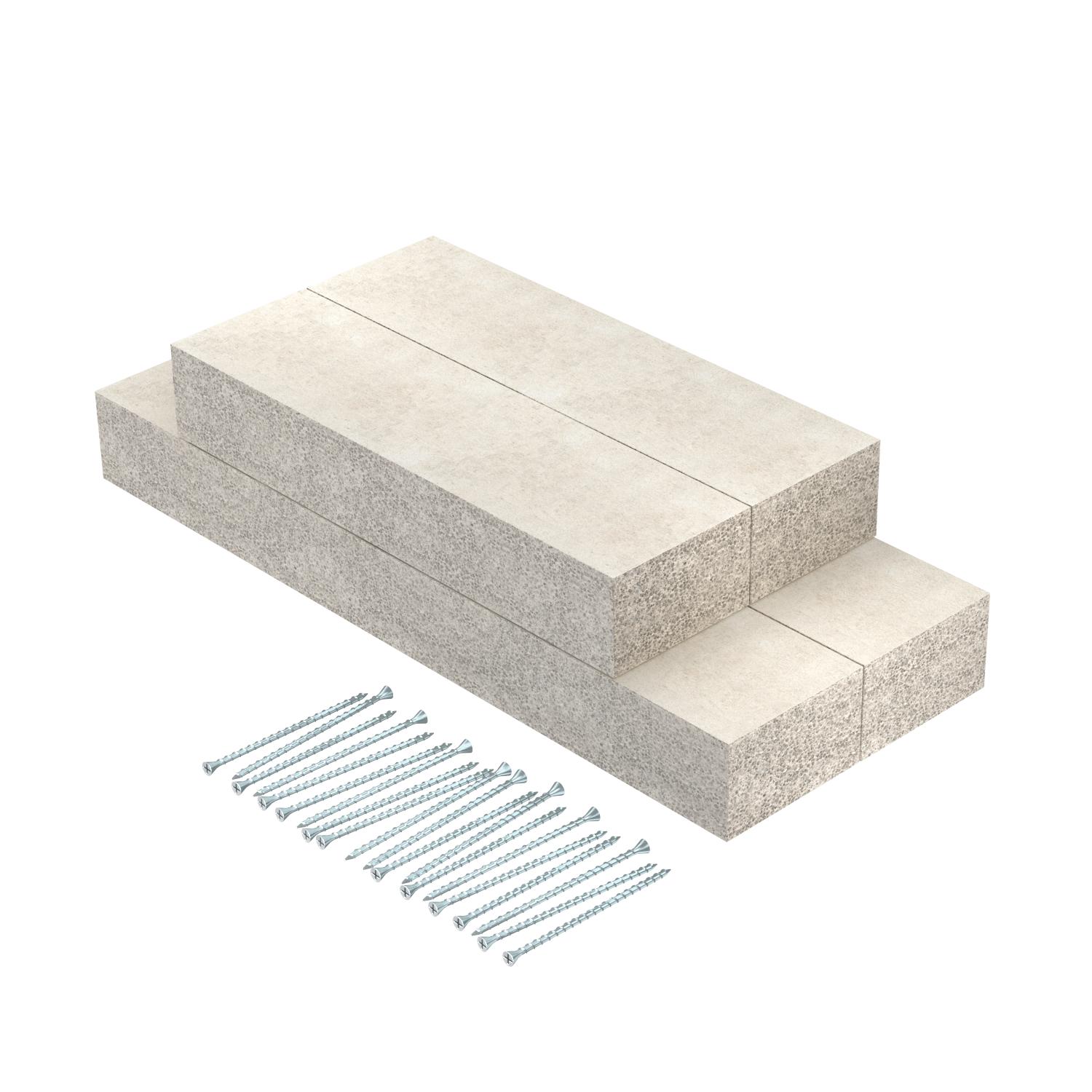

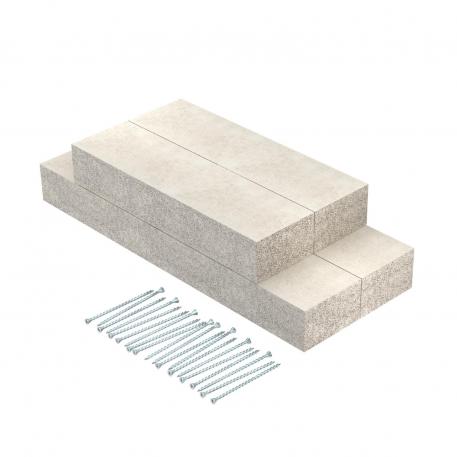

Product descriptionWall connection collar for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete, which is resistant to water and frost, for mounting on the fire protection duct in the area of wall connections and wall penetrations. Consists of 4 single plates (width 50 mm, depth 30 mm).
Including countersunk head screws.
-
- Technical data
-
Technical data
Classification EI − installation duct 90 Colour Grey Dimension 100x80 Material Fibreglass lightweight concrete - All types
- Downloads
-
Data sheet PLCS W090810 / 7217970 , 0.11MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS W090810 / 7217970 , 0.11MB , pdfDeclaration of performance PLCS W090810 / 7217970 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
