End piece, duct height 120 mm, FS 205 | 121 | zinc
morepic-1 morepic-2

End piece, duct height 120 mm, FS

Item no. 7218094 | EAN 4012197310240

7218094 / PLM EP 1220 FS
205 mm
121 mm
zinc
Product description
Product description

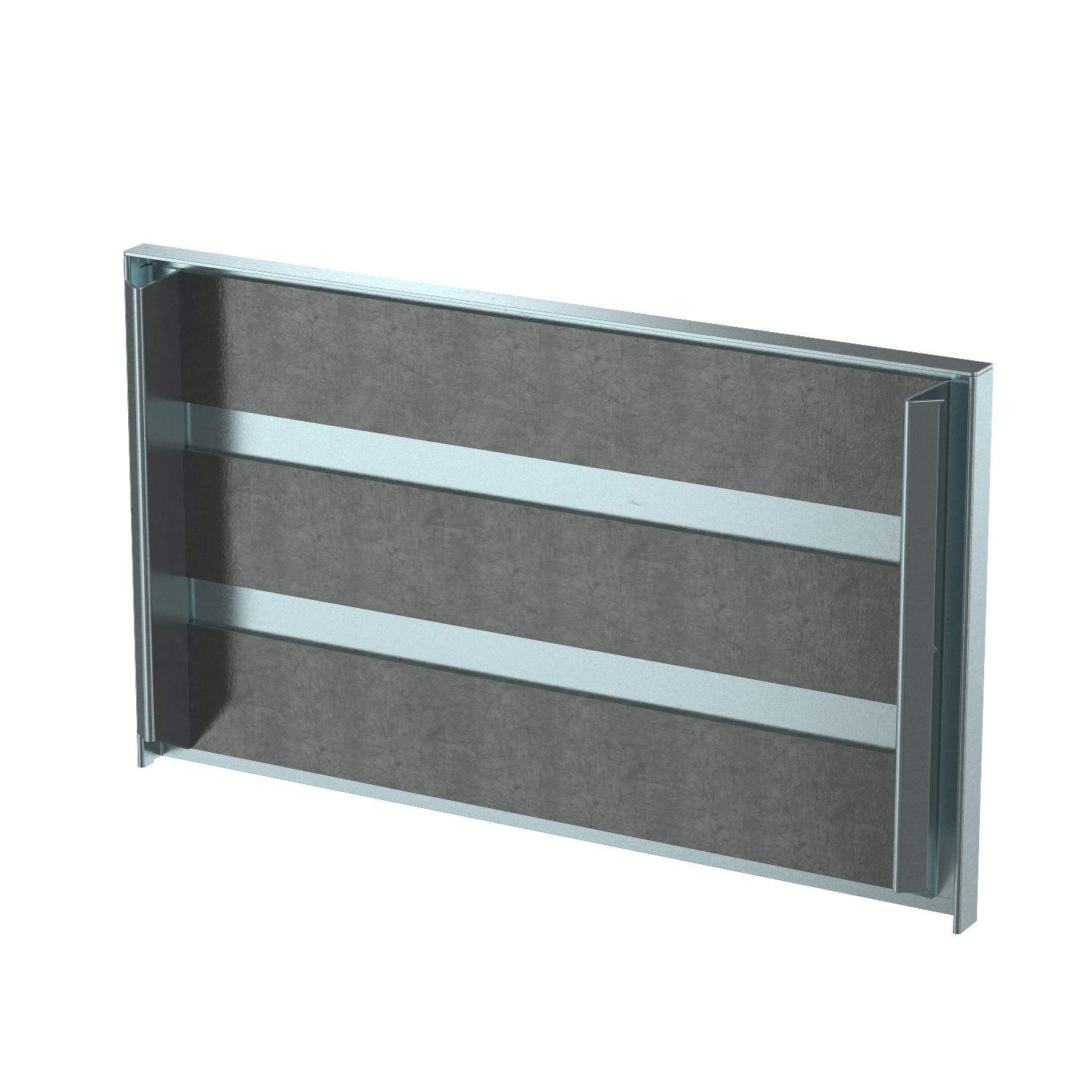

End piece with intumescent fire protection mesh to close the PYROLINE® Rapid PLM installation duct.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour zinc

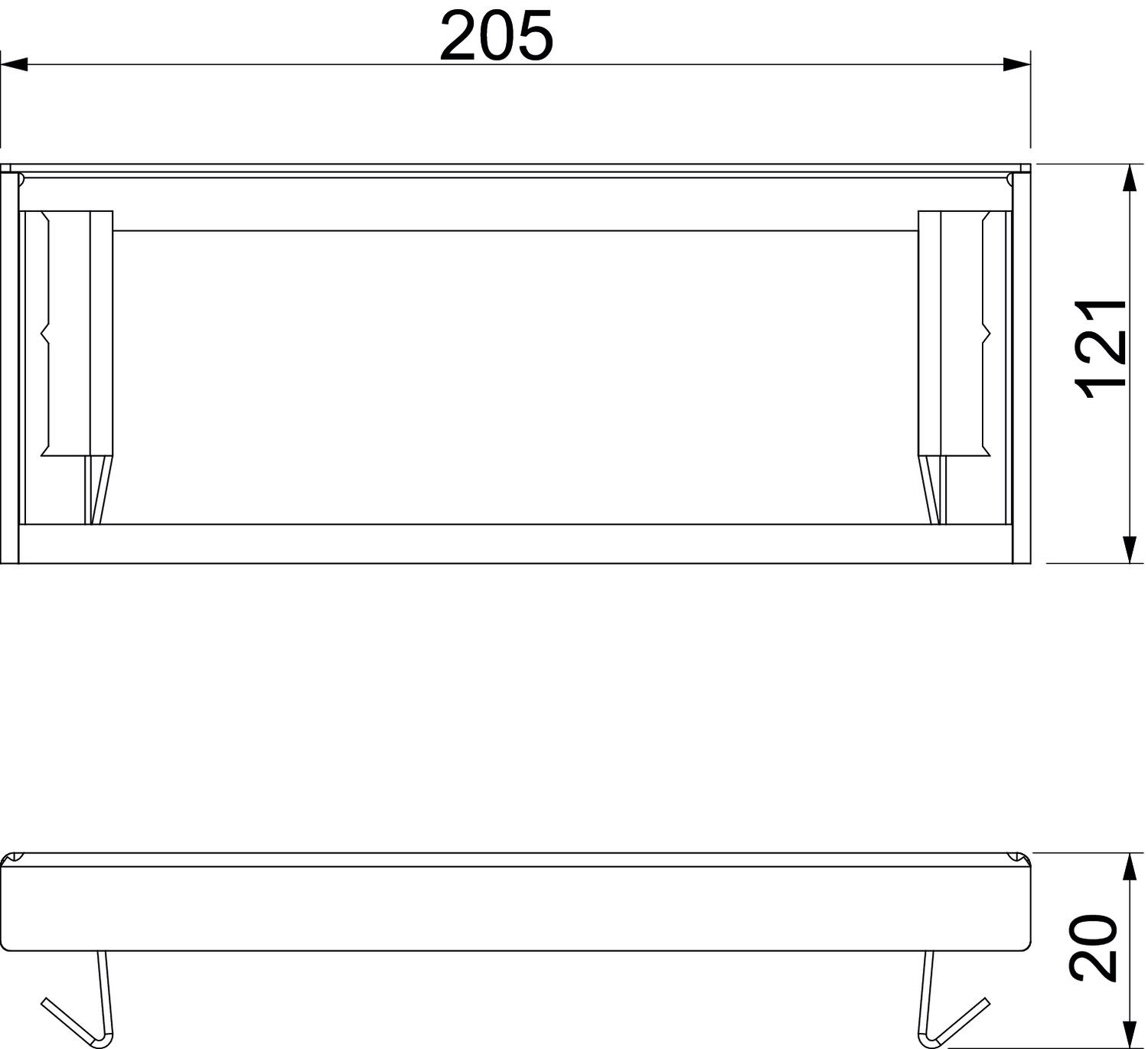

Dimension 205x20x121
Dimension B 205 mm
Dimension H 121 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Surface Strip galvanized
Usable cross-section 18500 mm²
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLM EP 1220 FS 205 mm 121 mm zinc 7218094
1 piece
Downloads

Download

Download

EU declaration of conformity PLM EP 1220 FS / 7218094 , 0.11MB , pdf
Download
Download

Download

Download

No invitation to tender text is available for this product.
