End piece, duct height 80 mm, FS 105 | 81 | zinc
morepic-1 morepic-2

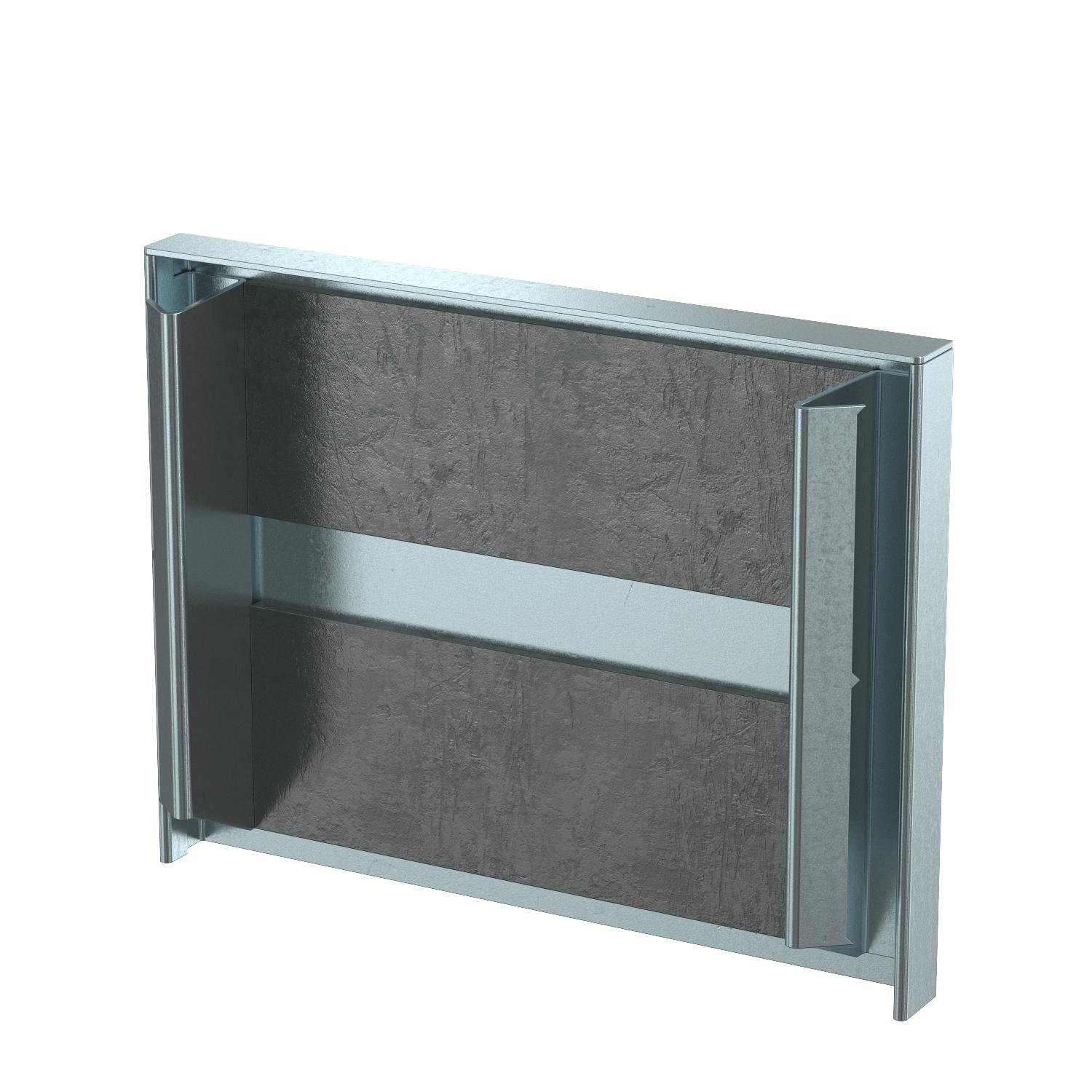

End piece, duct height 80 mm, FS

Item no. 7218090 | EAN 4012197310226

7218090 / PLM EP 0810 FS
105 mm
81 mm
zinc
Product description
Product description
End piece with intumescent fire protection mesh to close the PYROLINE® Rapid PLM installation duct.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour zinc

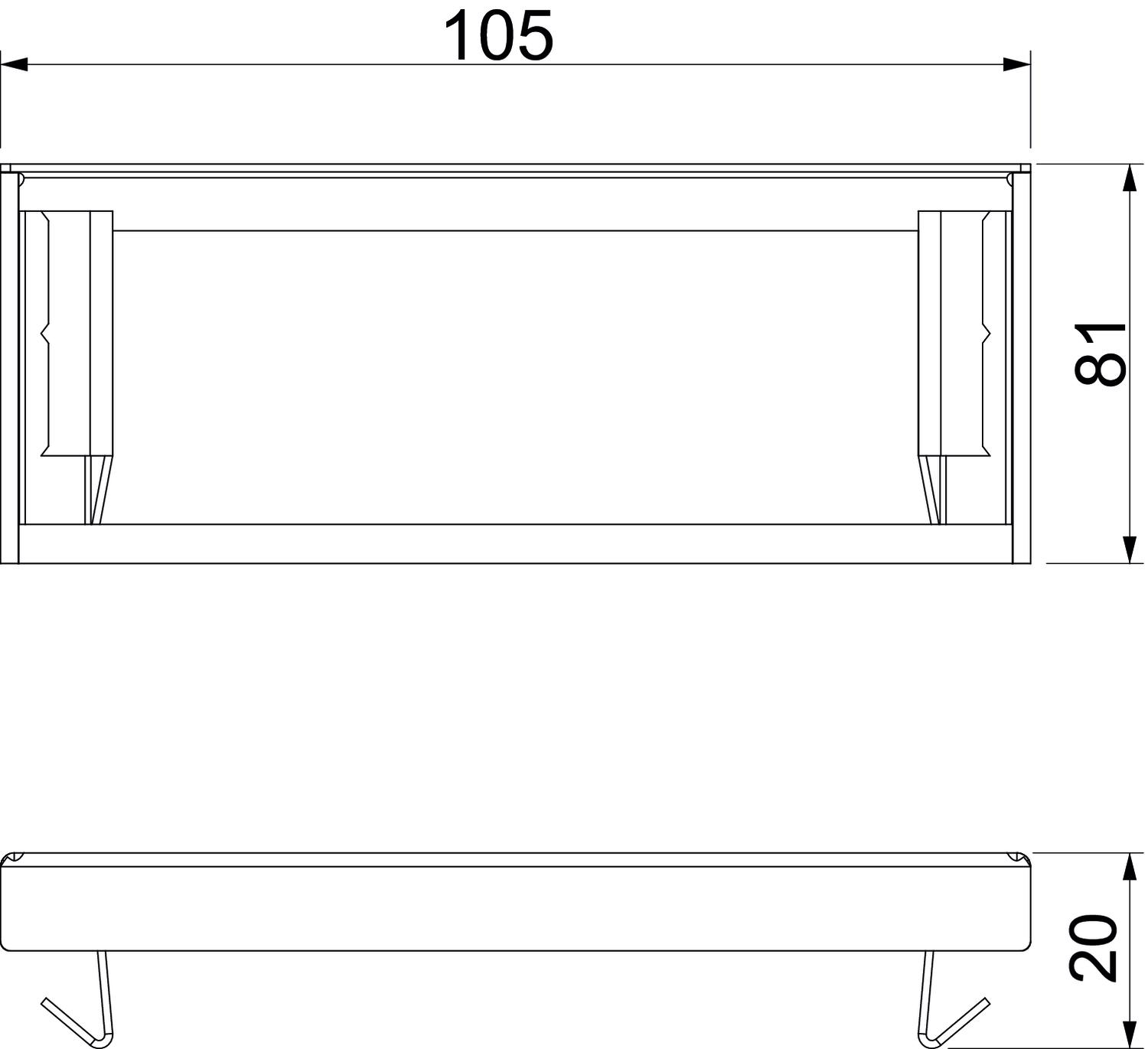

Dimension 105x20x81
Dimension B 105 mm
Dimension H 81 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Surface Strip galvanized
Usable cross-section 5180 mm²
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLM EP 0810 FS 105 mm 81 mm zinc 7218090
1 piece
Downloads

Download

Download

EU declaration of conformity PLM EP 0810 FS / 7218090 , 0.11MB , pdf
Download
Download

Download

Download

No invitation to tender text is available for this product.
