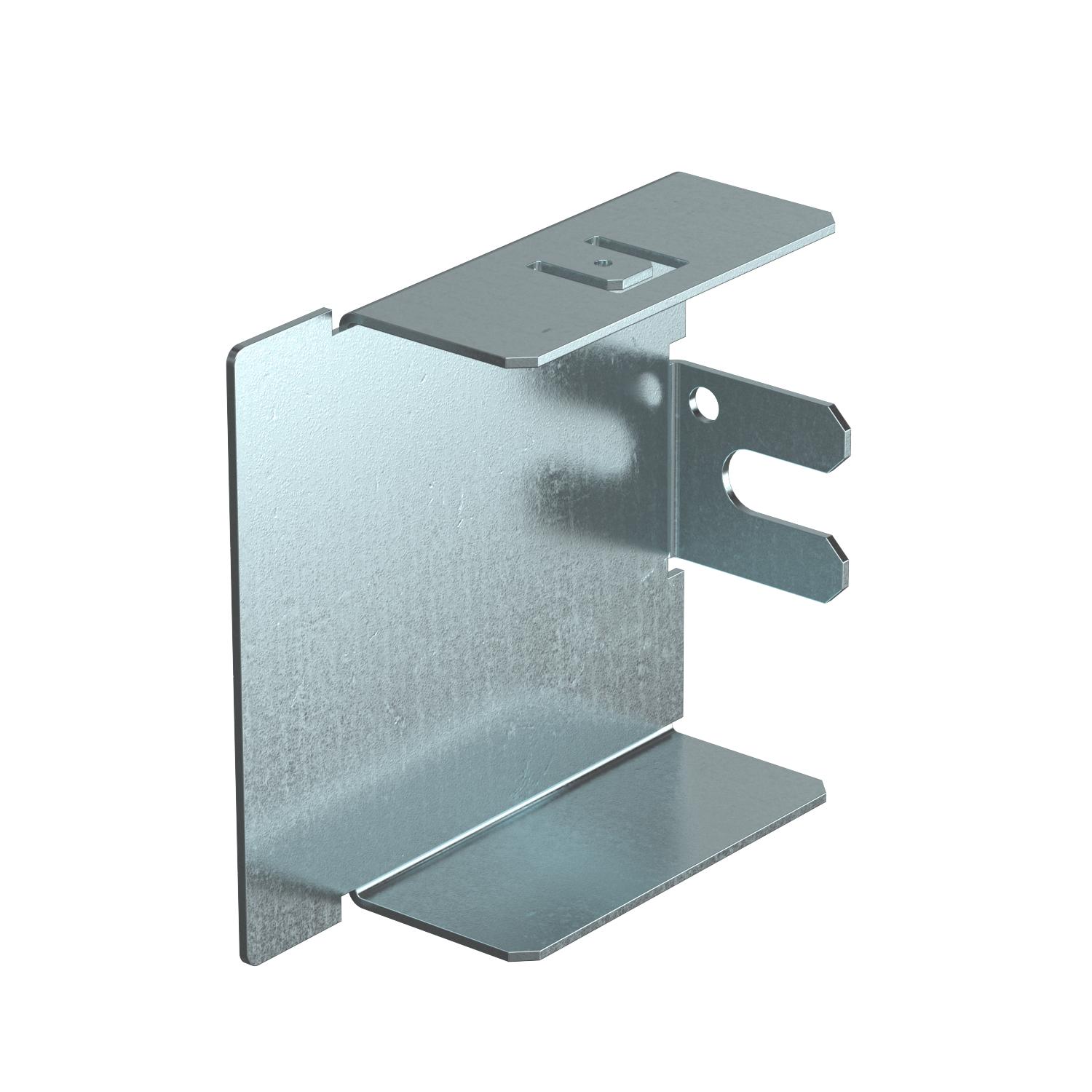

End piece, for cable trunking type LKM 60060
Item no. 6248284 | EAN 4012196503353
- Product description
-
Product descriptionEnd piece for closing the LKM ducts.
-
- Technical data
-
Technical data

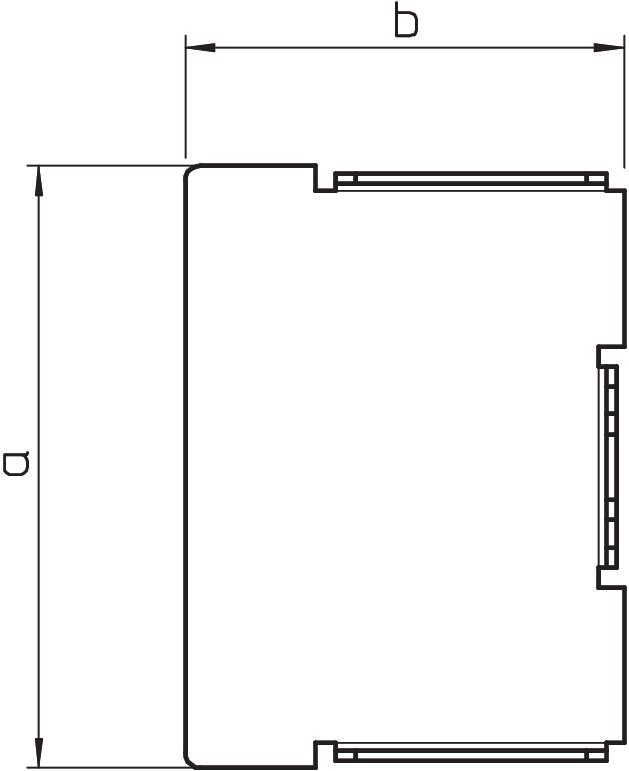

Colour zinc Dimension 60x60mm Dimension a 60 mm Dimension b 64 mm Fastening type Lockable Halogen-free yes Height 64 mm Length 21 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized Version for Left/right Width 60 mm - All types
- Downloads
-
Data sheet LKM E60060FS / 6248284 , 0.22MB , pdfEU declaration of conformity LKM E60060FS / 6248284 , 0.13MB , pdfUK Declaration of Conformity LKM E60060FS / 6248284 , 0.14MB , pdfREACH Declaration of conformity LKM E60060FS / 6248284 , 0.12MB , pdfRoHS Declaration of conformity LKM E60060FS / 6248284 , 0.12MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
