End piece, trunking type WDK 100230 230 | 100 | 230 | Cream; RAL 9001
morepic-1 morepic-2

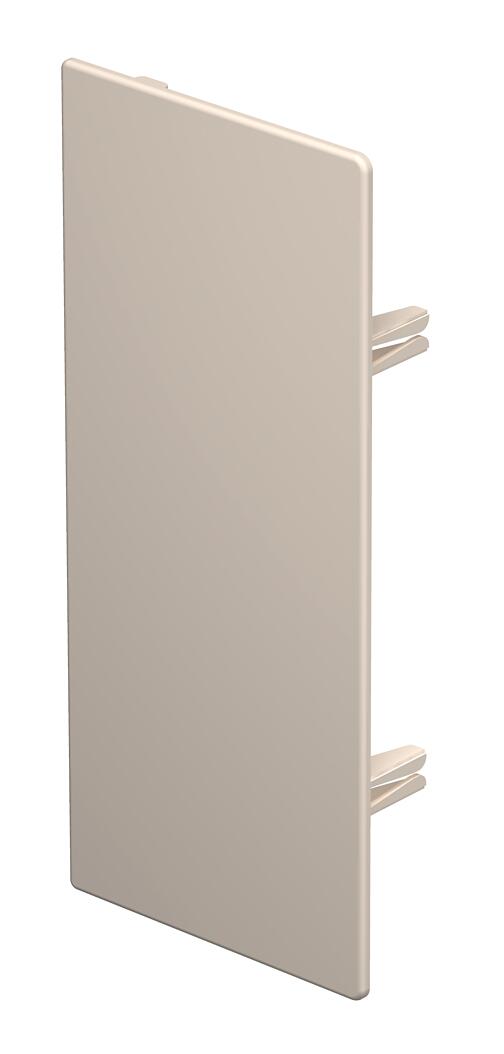

End piece, trunking type WDK 100230

Item no. 6163076 | EAN 4012196651436

6163076 / WDK HE100230CW
230 mm
100 mm
230 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 100x230mm
Dimension a 230 mm
Dimension b 100 mm
Dimension H 230 mm
Fastening type Lockable
Halogen-free no
Height 100 mm
Length 25 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 230 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE100230CW 230 mm 100 mm 230 mm Cream; RAL 9001 6163076
5 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HE100230CW / 6163076 , 0.14MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
