End piece, trunking type WDK 15040 40 | 17 | 40 | Cream; RAL 9001
morepic-1 morepic-2

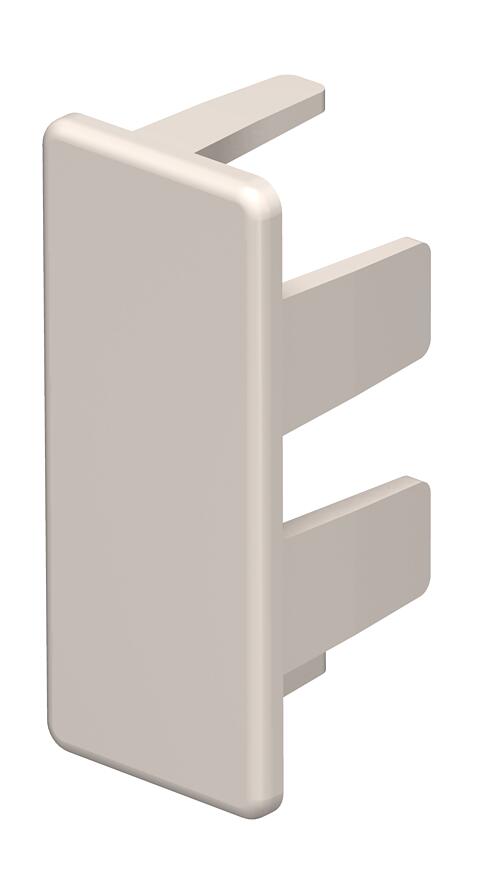

End piece, trunking type WDK 15040

Item no. 6162525 | EAN 4012196583690

6162525 / WDK HE15040CW
40 mm
17 mm
40 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 15x40mm

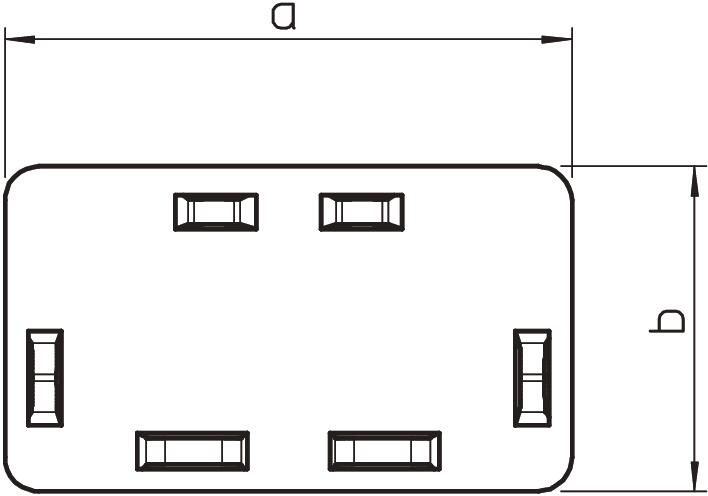

Dimension a 40 mm
Dimension b 17 mm
Dimension H 40 mm
Fastening type Lockable
Halogen-free no
Height 17 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 40 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE15040CW 40 mm 17 mm 40 mm Cream; RAL 9001 6162525
10 piece
